Name: scaleo systems Safety relay + reverse polarity protection, + LED, + enclosure 1 pc(s) Typ 24V 4-fach 4 change-overs
Brand: scaleo systems
SKU: 3163057
Availability: InStock

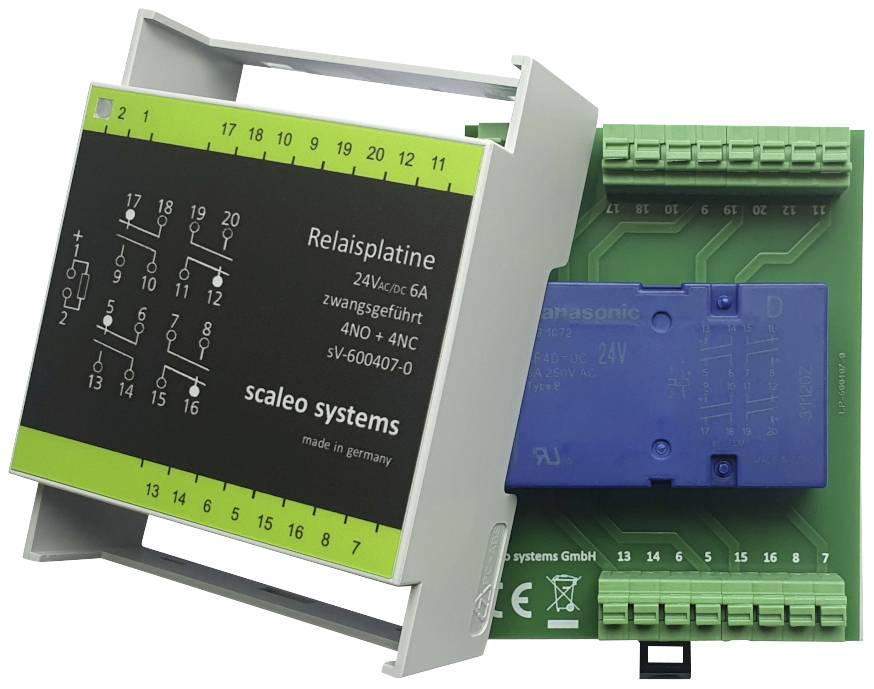

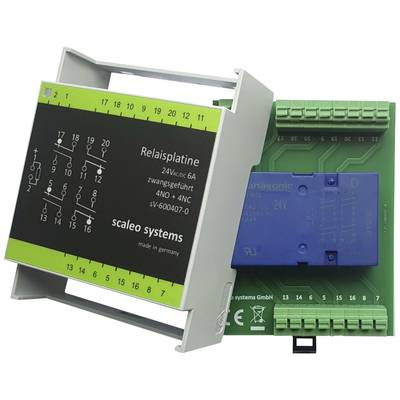

Relay circuit board with green and blue electronic component, labelled 'Relay Board 24Vdc/6A, 4NO + 4NC'.

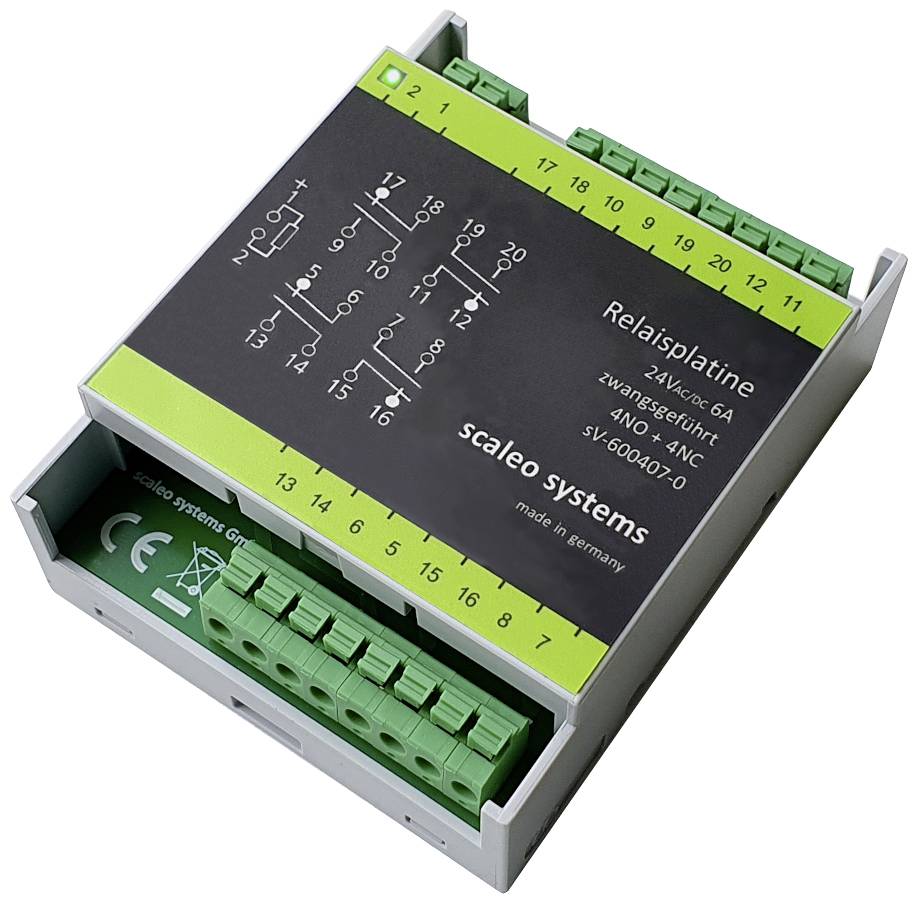

'Grey and green relay circuit board with terminal blocks and labelling. Used for controlling electrical devices, manufactured in Germany.'

White electrical junction box with green screw terminals, suitable for cable connections.

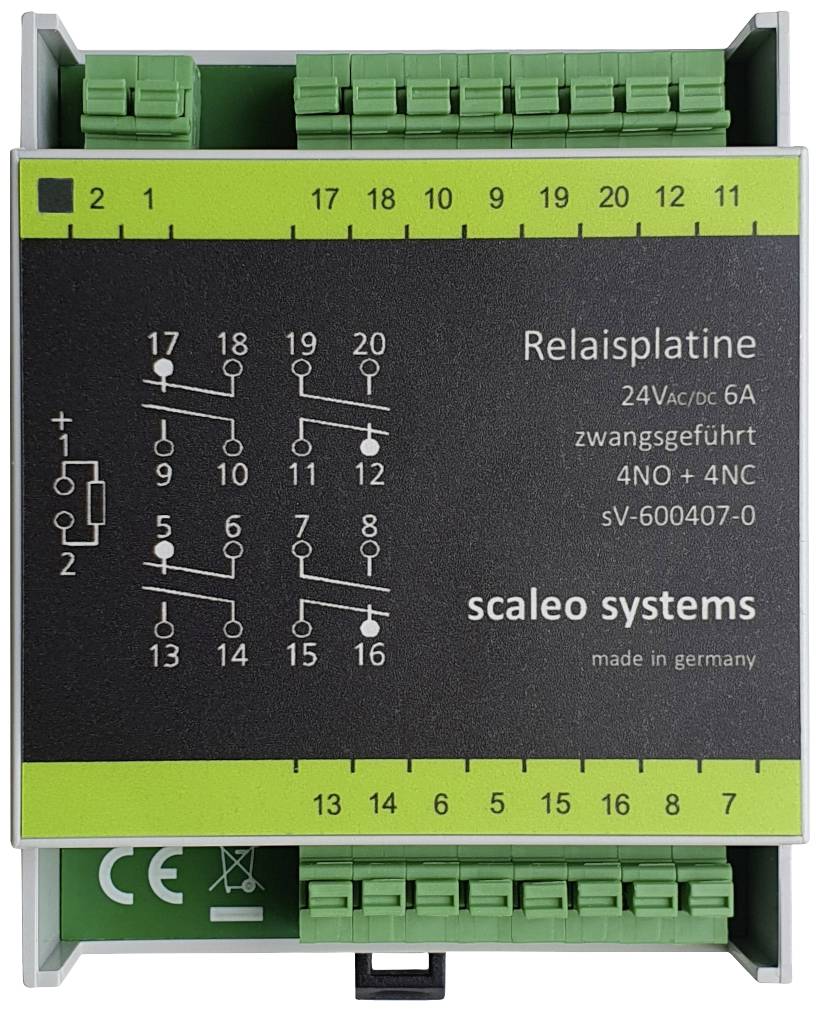

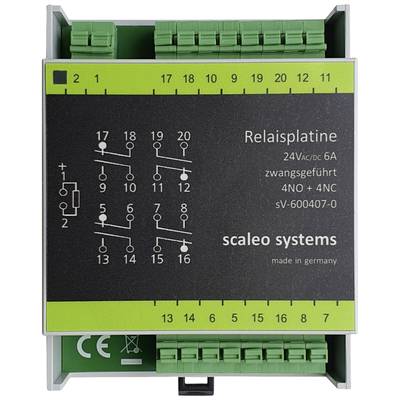

Relay circuit board with positive guidance, 24V AC/DC, 6A, Model sV-600407-0, scalable. Contains symbols for four normally open and four normally closed contacts.

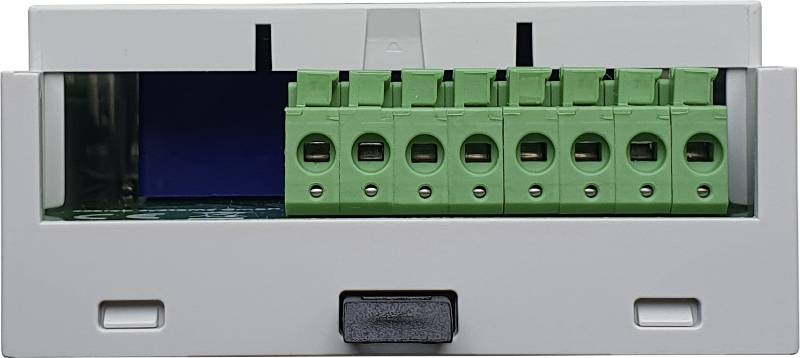

A white electronic device enclosure with green terminal blocks visible on the front for wiring connections.

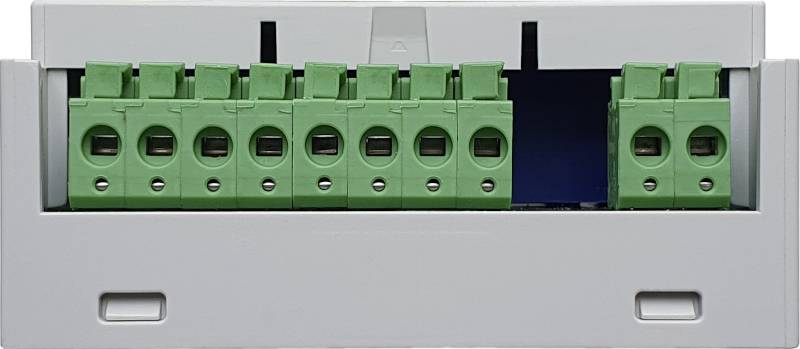

A white electrical terminal with green connectors, used for connecting wires in an electrical circuit.

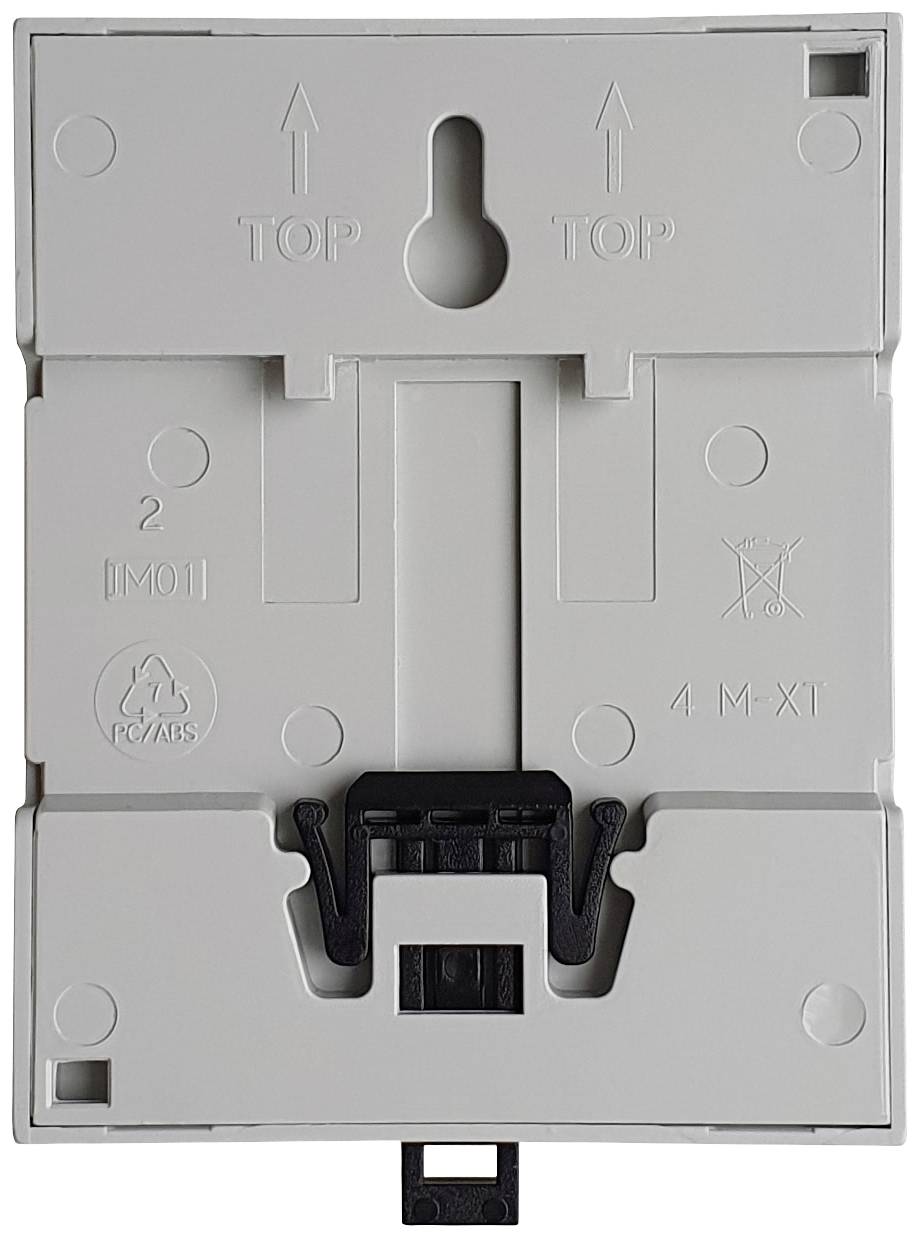

White plastic wall-mounting plate with screw fixings and recycling symbol. Top surface marked with arrows and the word 'TOP'.

1/7

Product type

Safety relay

Contact type

4 change-overs

Connection

Spring-loaded connector PE 6.3 x 0.8

Features

+ reverse polarity protection

+ LED

+ enclosure

Type

Typ 24V 4-fach

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Safety relay board 24V/DC, 2 potential-free change-over contacts

Status LED indicator, polarity reversal protection, safety relay

Technical specifications

Relay coil
Voltage type: DC and AC voltage
Coil voltage 18 – 28 V/DC, 24 V/AC
Recording capacity 0.5 W
Reverse polarity protection: Rectifier
Status LED: Green, when updated
Switch contacts
Max. Switching voltage 250 Vac
Max. Switching power (ohmic) 150W, 1500 VA
Max continuous current 6 A
Max. Power surge 20 A
Max. Switch-off current 6 A.
Recommended minimum load 10 V, 10 mA
Typical bounce time: 4 ms
Voltage resistance: Contact/coil (AC) 2kVeff
Durability 100 switching cycles, mechanical at max. Load (ohmic)
Contact material: AgSn02
Terminals
Minimum cross-section: 28 AWG, 0.09 mm²
Largest cross-section: 16 AWG, 1.5 mm²
Stripped length: 6 mm
Housings
Pollution level: 2
IP protection class 20
Mounting type: DIN rail, DIN35
environment
Storage temperature -40 °C to +80 °C.
Operating temperature: 0 °C to +50 °C
Applicable standards
Mechanical Elemental relay EN 61810-1
Insulation coordinates EN 60664-1
EMV EN 61000, + under. Limits
Low-voltage guideline EN 60335-1

Product type: Safety relay

Features: + reverse polarity protection
+ LED
+ enclosure

Type: Typ 24V 4-fach

Min. operating voltage: 18 V DC

Max. operating voltage: 24 V DC

Operating voltage: 18 - 24 V DC

Contact type: 4 change-overs

Switching voltage (max.): 250 V AC

Switching current (max.): 6 A

Max. switching capacity: 150 W

Connection: Spring-loaded connector PE 6.3 x 0.8

Content: 1 pc(s)

Weight: 130 g

Max. temperature: 50 °C

Min. temperature: 0 °C

Length: 70 mm

Width: 90 mm

Height: 32 mm

Dim: (L x W x H) 70 x 90 x 32 mm

RoHS-compliant: Yes
