ElectromechanicsRelaysRelay Boards

scaleo systems Relay card 1 pc(s) VV-600401-0-C 2 change-overs 12 V DC

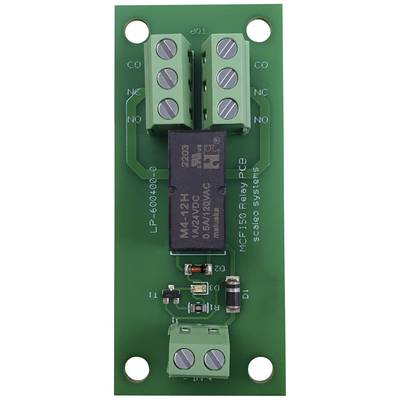

Brown circuit board with green connector module and central black relay. Label reads: 'M4-12H K42VDC 0.5A/120VAC'.

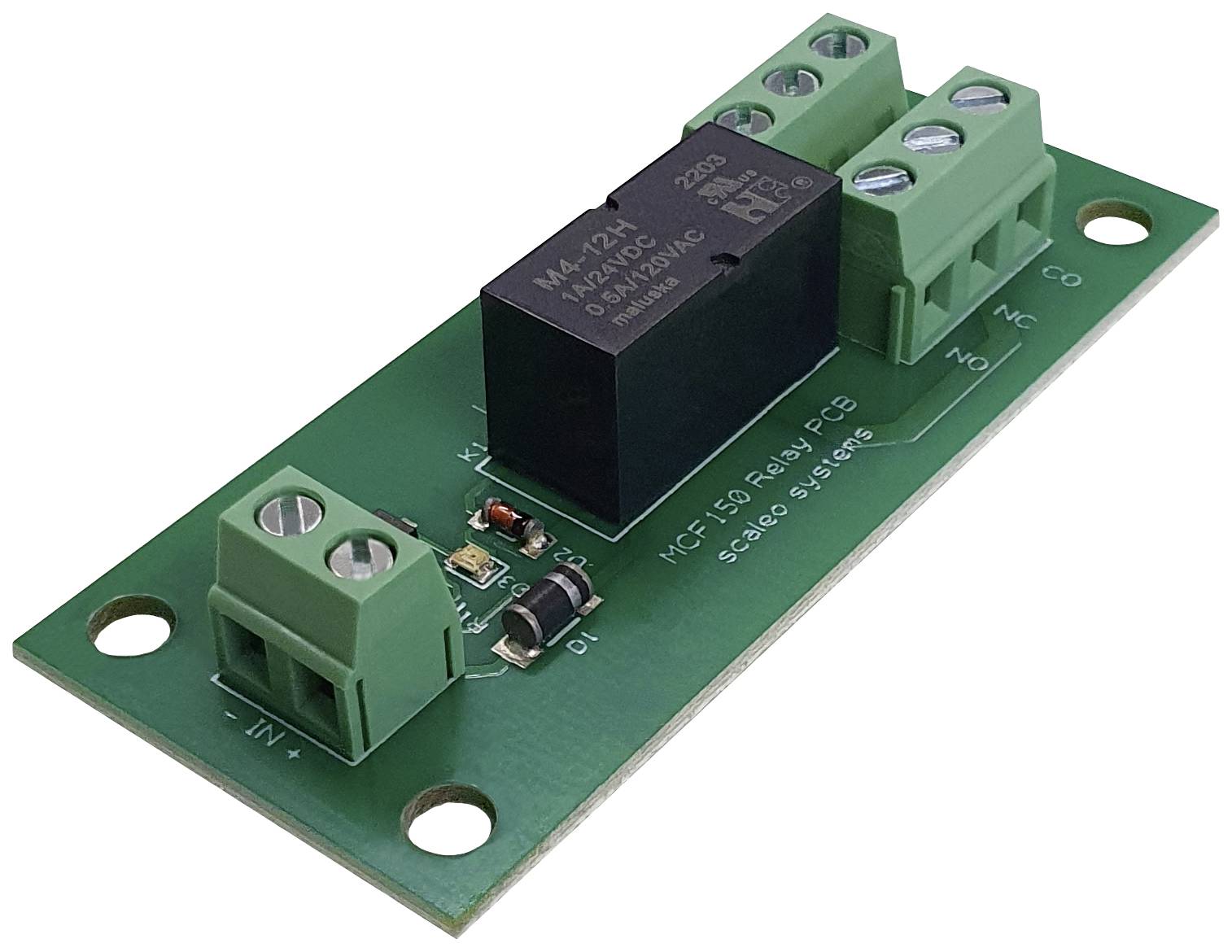

A green printed circuit board with a black relay in the centre, surrounded by green terminal blocks at the edges, used for electronic circuits.

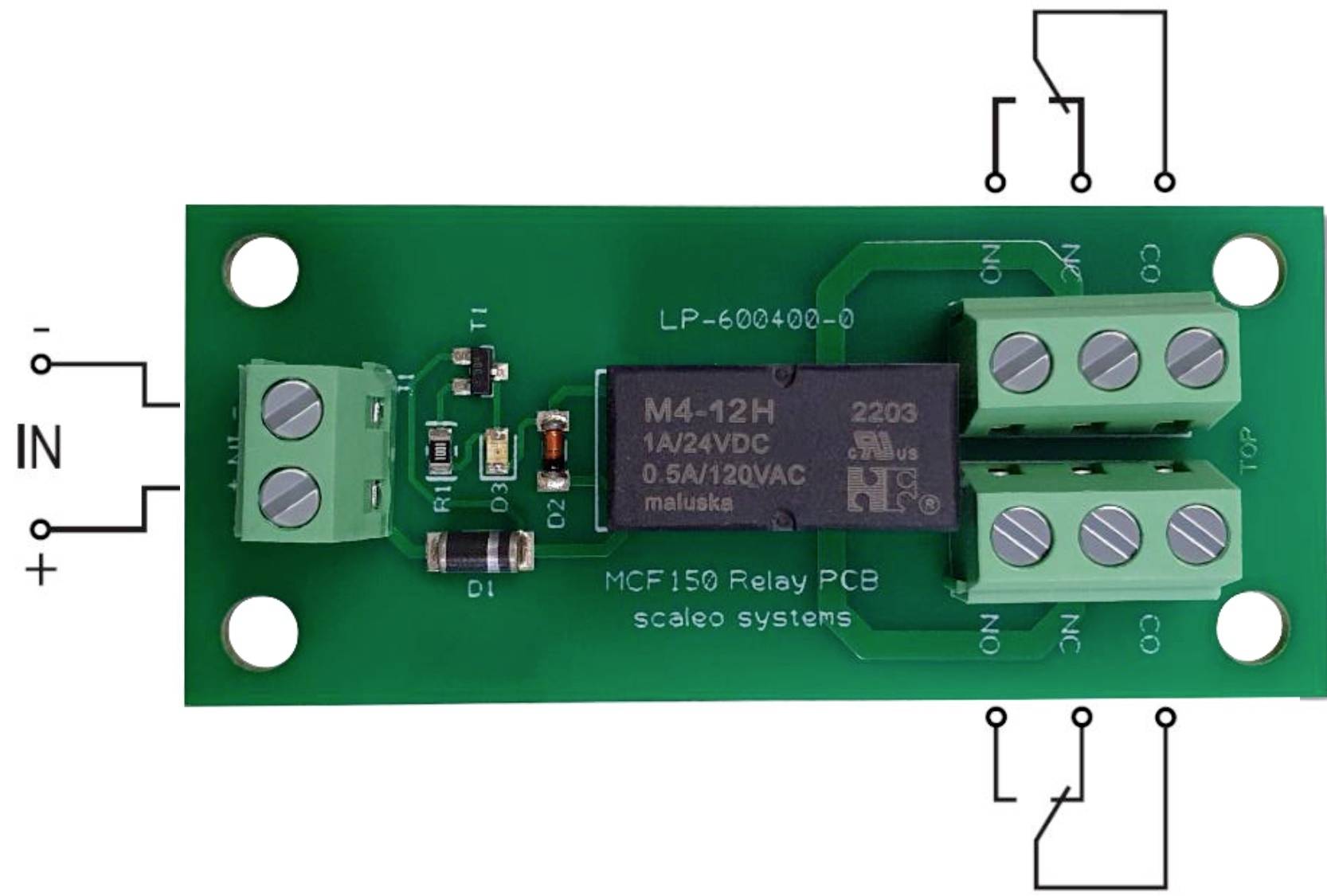

'MCF150 Relay PCB' green circuit board with relay, two connection blocks for inputs/outputs, and circuit diagram on white background.

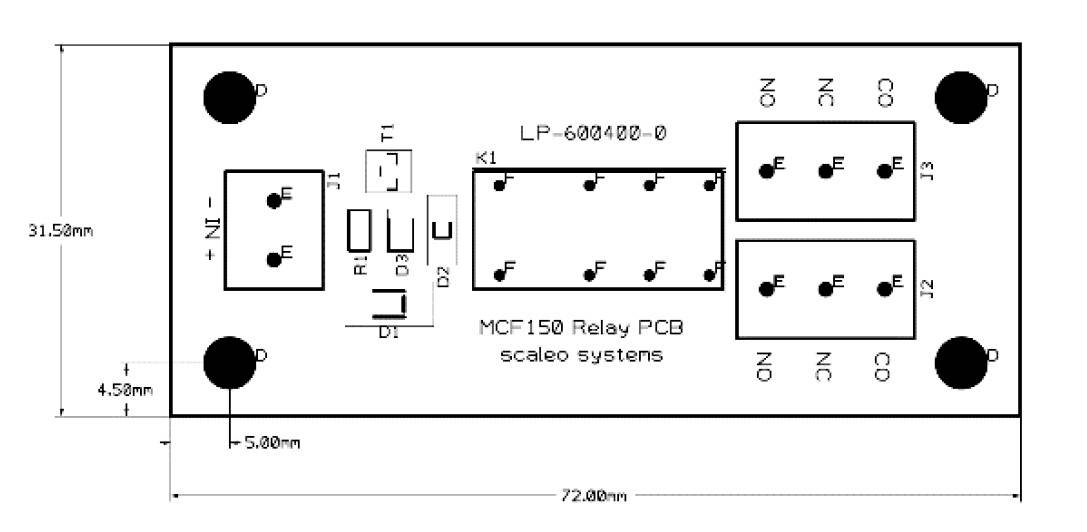

'MCF150 Relay PCB' circuit diagram. Shows connections, switches and dimensions of the PCB layout in millimetres.
1/4
Product type
Relay card
Operating voltage
12 V DC
Contact type
2 change-overs
Connection
Screw terminal
Type
VV-600401-0-C
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
38 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 24.99 / piece)
€ 24.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Relay board 12VDC 2 potential-free changeover contacts

  • Status LED displayTemperature range: 0 to 50°C (storage temperature: -40 to 70°C)Installation environment: For dry inner rooms

Technical specifications

  • Installation environment: For interior mountingScrew-on mounting 4 holes / D= 4.5mm
Product type

Relay card

Type

VV-600401-0-C

Operating voltage

12 V DC

Min. operating voltage

8 V DC

Max. operating voltage

16 V DC

Operating voltage

8 - 16 V DC

Channels

1

Contact type

2 change-overs

Switching voltage (max.)

24 V DC

120 V AC

Switching current (max.)

1 A

Connection

Screw terminal

Content

1 pc(s)

Weight

25 g

Max. temperature

+70 °C

Min. temperature

-40 °C

Length

31.5 mm

Width

72 mm

Height

17.5 mm

Dim

(L x W x H) 31.5 x 72 x 17.5 mm

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 2798469 scaleo systems Relay card 1 pc(s) VV-600401-0-C 2 change-overs 12 V DC

User & Safety Instructions

User & Safety Instructions 2798469 scaleo systems Relay card 1 pc(s) VV-600401-0-C 2 change-overs 12 V DC

Description

4 screw-on holes

This text is machine translated.

System requirements

  • 8 V DC
