Name: scaleo systems VV-101804-0 Power supply unit 9 V DC 0.3 A 3 W
Brand: scaleo systems
SKU: 3842471
Availability: BackOrder

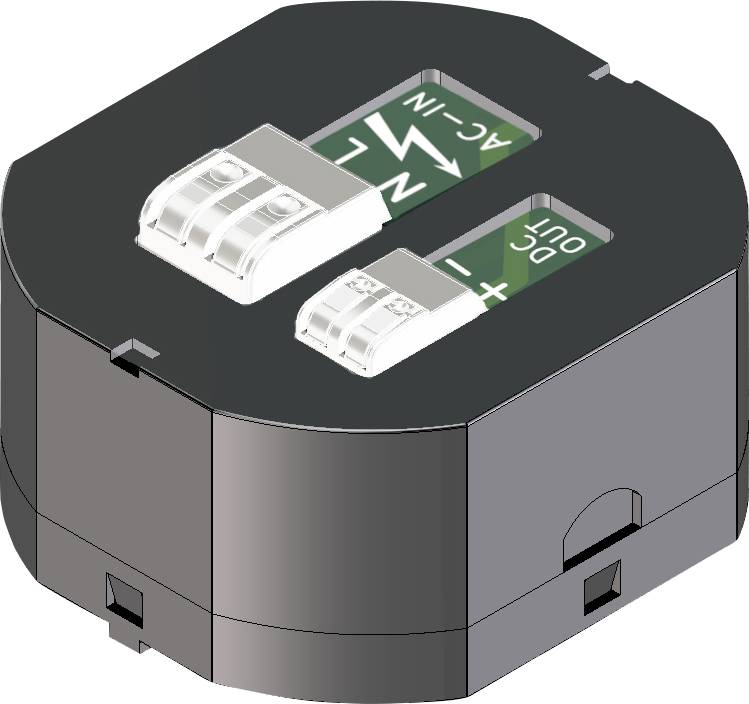

Illustration of a small electronic module with two white wire terminals labeled 'AC-IN' and 'OUT' on a black rectangular casing.

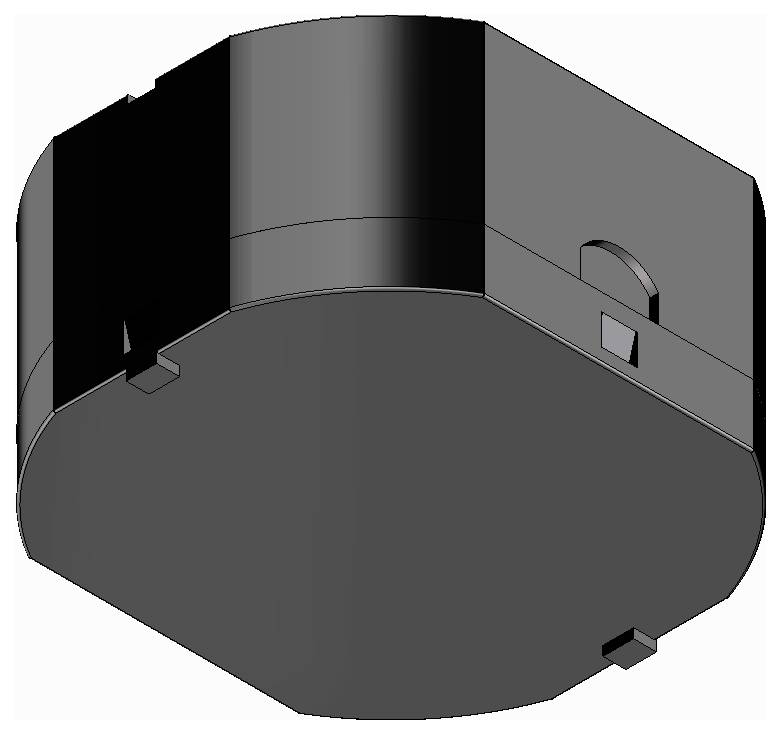

3D rendering of a dark gray cylindrical device housing with a flat base, side opening, and small latch detail on the right.

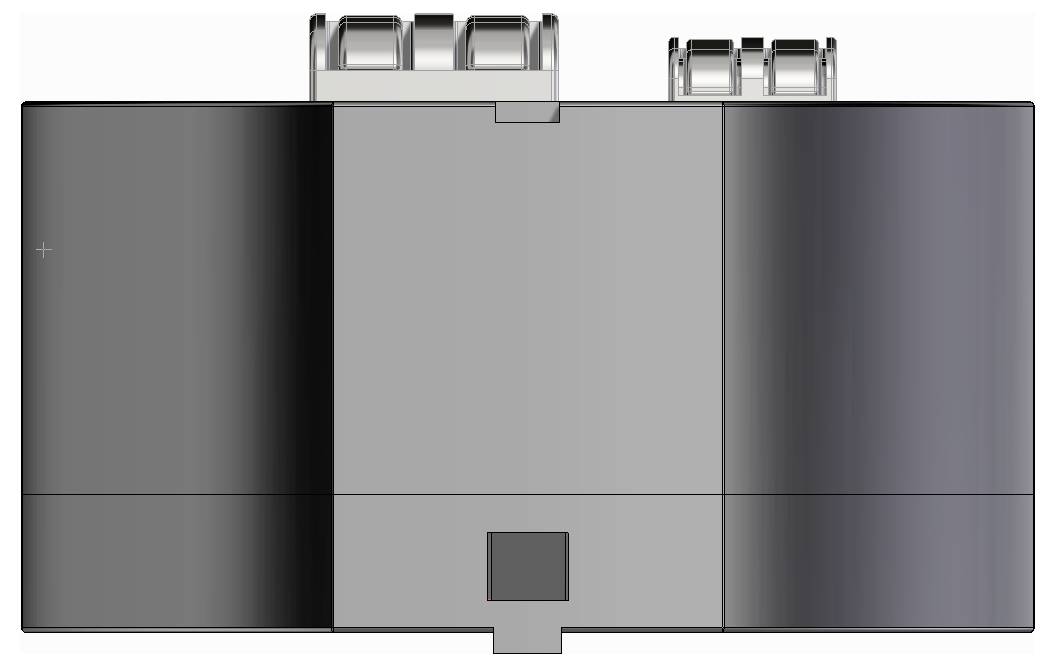

Top-down view of a rectangular battery pack with three connected sections and metal terminals along the top edge.

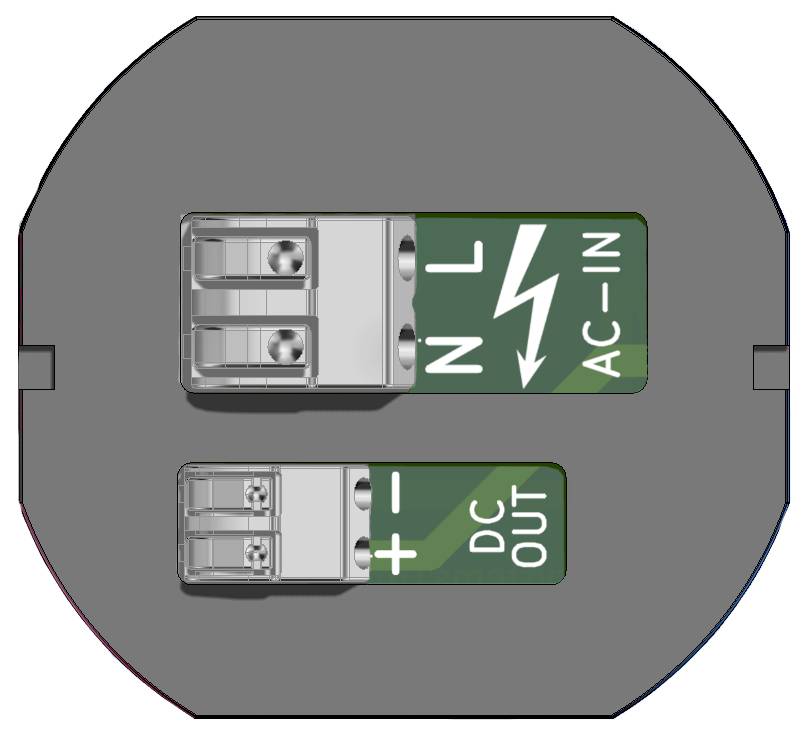

Diagram of two electrical connectors: top labeled 'AC-IN' with N and L, bottom labeled 'DC-OUT' with + and -<br>

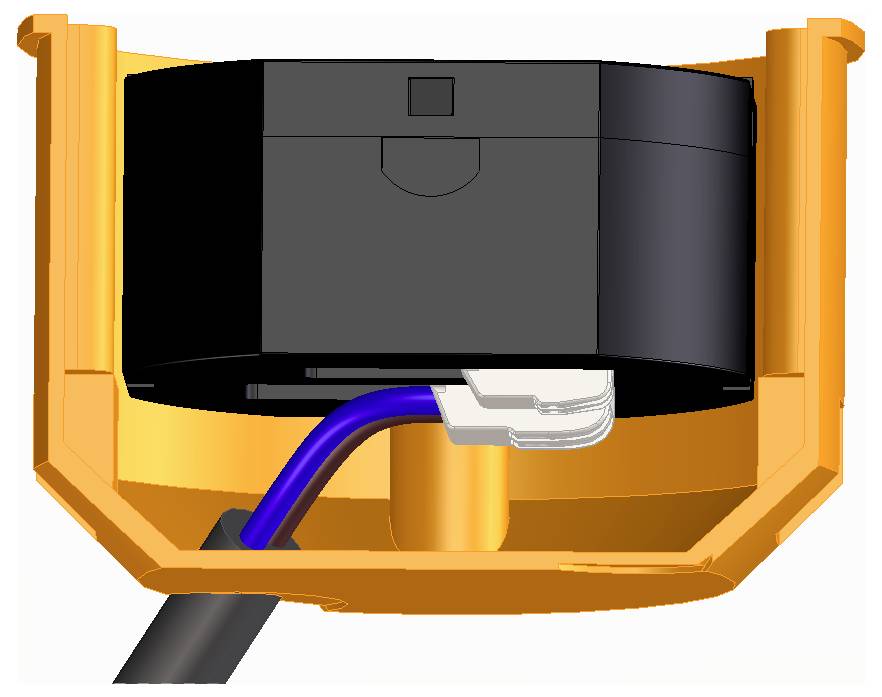

3D cutaway of an orange and black electrical connector showing internal wiring, a blue cable entering from below, and a white locking clip.

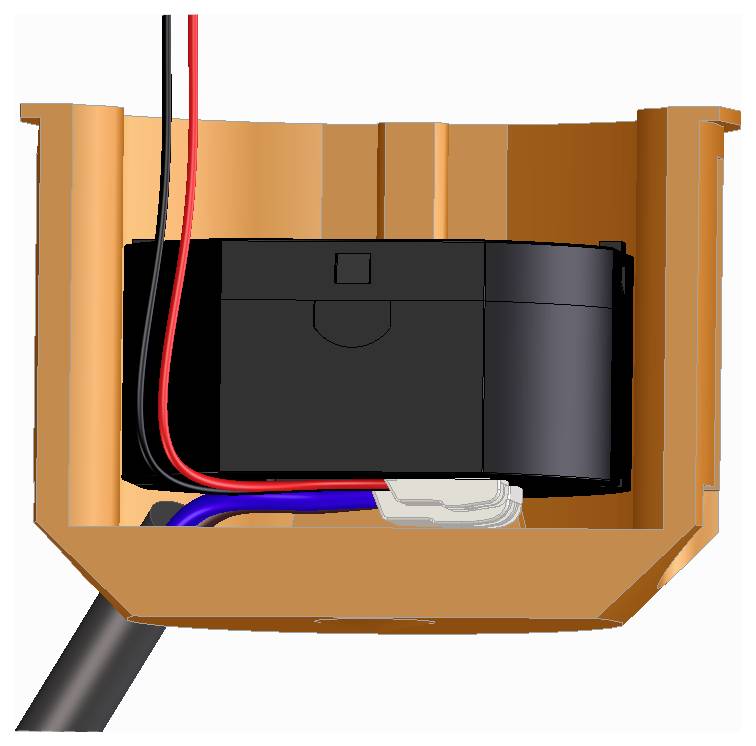

Close-up illustration of a black electronic component mounted inside an orange housing, with red, black, and blue wires connected below.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 55.99 / piece)

€ 55.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Flush-mounted power supply 9V/3W for 230V for Smart home, LED & controls

Output 9 V DC / 0.3 A
Power 3 W
Spring-loaded terminal

Technical specifications

Product type: Power supply unit

Input voltage (max.): 305 V AC

Max. output current: 0.3 A

Output current (max.) - rounded: 300 mA

Min. input voltage: 85 V AC

Dim: (L x W x H) 48 x 52.5 x 28 mm

Output voltage (max.): 9 V DC

Connection: Spring-loaded terminal

: 3 W

Input frequency: 50-60 Hz

No. of outputs: 1 x

Output voltage 1: 9 V DC

Type: closed

Operating temperature (max.): 85 °C

Operating temperature (min.): -30 °C

Weight: 50 g

Material (details): ABS plastic

Type: Flush-mounted power supply

Width: 52.5 mm

Height: 28 mm

Length: 48 mm

Type: 9V/3W

Documents & Downloads

Datasheet

Datasheet 3842471 scaleo systems VV-101804-0 Power supply unit 9 V DC 0.3 A 3 W

User & Safety Instructions

User & Safety Instructions 3842471 scaleo systems VV-101804-0 Power supply unit 9 V DC 0.3 A 3 W

Description

This flush-mounted power supply unit with 9V/3W is the ideal solution for an discreet and reliable power supply in modern electrical installations. Thanks to the compact design, the power supply can be easily integrated into flush-mounted sockets and disappears invisibly in the wall or on the switch.
The power supply is ideally suited for Smart home applications, home automation, LED lighting, small electronic modules, smart controls as well as small drives. The device can be flexibly adapted to different consumers by selecting different DC output voltages.
Whether it's powering sensors, actuators, WLAN modules, relays, controllers or LED strips – this flush-mount power supply provides a stable and efficient DC voltage for permanent use. Ideal for new building, renovation or upgrade of smart systems.
