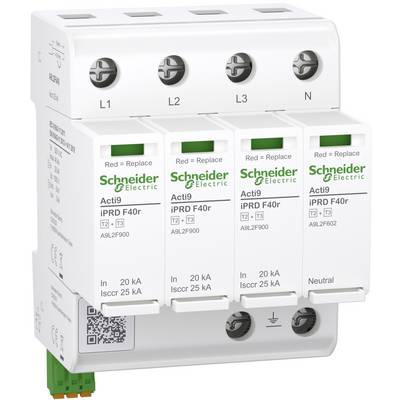

Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 281.51 / piece)
€ 281.51
plus VAT.
Technical specifications
- Product type
Surge arrester
- Manufacturer part #
A9L2F640
- Dim
(W x H x D) 72 x 105 x 70 mm
- Width
72 mm
- Height
105 mm
- Depth
70 mm
- Content
1 pc(s)
DIN rail (top hat rail) 35 mm
TRUE
3
4 modular spacing
1.5 kV
300 V
20 kA
240 V
TRUE
1.5 kV
Optic
IP20
1.5 kV
TRUE
35 mm²
25 mm²
FALSE
FALSE
FALSE
FALSE
TRUE
TRUE
FALSE
FALSE
40 kA
25 kA
TRUE
FALSE
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Information
Information 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Information 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Information 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Information 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Repairability/durability data sheet 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Conformity certificate
Conformity certificate 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Conformity certificate 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Conformity certificate 3342406 Schneider Electric A9L2F640 A9L2F640 Surge arrester 1 pc(s)
Description
Acti9 iPRD F40r modular surge suppressor type 2+3. Integrated fuse in the device, no earth leakage circuit breaker necessary (safety-proof). Telecommunication contact. Optical function/defect display of arrester and integrated fuse (green OK/ red device defective). Suitable for TN-S and TT networks. U0 nominal voltage 240 V AC (50 Hz). UC maximum continuous voltage 305V AC (N-PE) / 300V AC (L-N). In-nominal leakage surge current 20/40 kA (L-N)/(N-PE). Imax maximum leakage surge current 40/65 kA (L-N)/(N-PE). Uoc off-load voltage 6kV. (L-N/N-PE). Up protection level 1.5 kV (L-N/N-PE). DIN-Rail mount Dimensions (W) 72mm x (H) 105mm x (D) 70mm. Weight 478g. Protection class IP20 integrated. Operating temperature: -40 to +85 oC. COMPLIES WITH IEC 61643-11:2011, EN 61643-11:2012+A11:2018.
