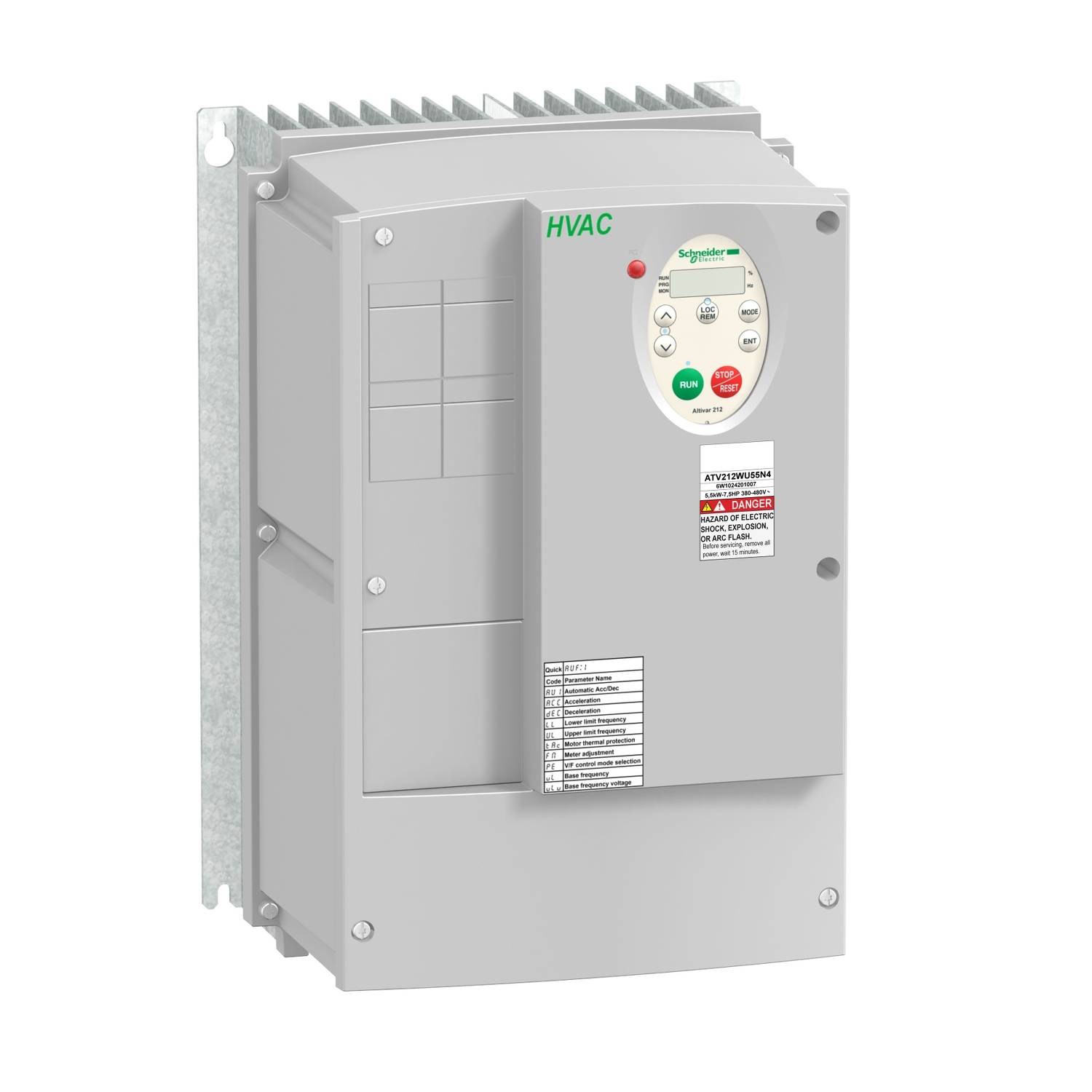

Schneider Electric Frequency inverter ATV212WU30N4 3 kW 3-phase

Converter for HVAC applications. Frequency converter ATV212, EMC class C2, IP55. Output KW 3 kW. Mains 380-480 V, 3-phase, 50 / 60 Hz, connectable. No additional DC choke required (harmonic distortion THDi 35 %). Integrated class C2 (with protection class IP 55 class C1 also possible). Plug & Drive design for immediate start-up after connection Max. Overload torque 120 %. Integrated communication buses of building technology Modbus, BACnet, METASYS N2, Apogee FLN. Plug-in option cards for LonWorks. Low Harmonic technology (LHT) for the environment-friendly application There is no accessories for reducing the harmonic currents as required by the regulation for buildings (no DC chokes, line reactors) THDi (harmonic current distortion factor) 35 % (IEC 61000-3-12 48 %). Self-adjustment of the high and drain ramps, to optimize the energy consumption. Decentralized operating terminal for self-setting of the functions and remote loading/storage of the configurations. Excellent strength under difficult environmental conditions (50 °C in continuous operation).
