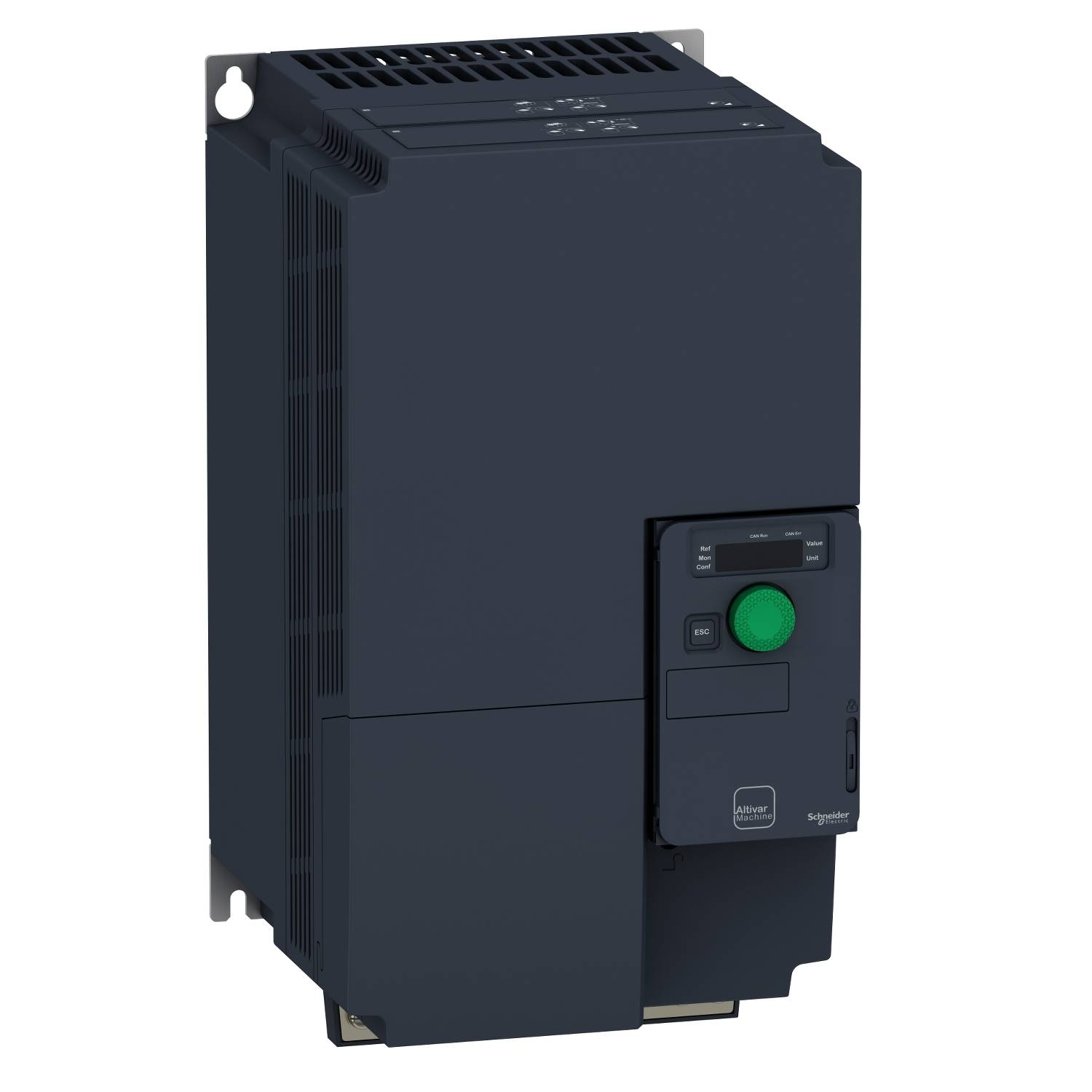

Schneider Electric Frequency inverter ATV320D11M3C 11 kW 3-phase

The Altivar Machine ATV320 range is a range of variable-speed drives developed for original equipment manufacturers (OEMs). Its compact form factor allows the vertical stacking of drives in machine frames. It works with a nominal power of up to 11 kW / 15 PS and a nominal voltage of 200 V up to 240 V AC. Its rugged design with class 3C3 coated circuit boards according to IEC 60721-3-3 allows the extension of machine availability under harsh environmental conditions. As for example, in ambient temperatures of up to 60°C without the need for additional cooling. It has features that are suitable for the most common applications, including torque and speed accuracy at very low speeds, high dynamic power with no-sensor flux vector control. It has an extended frequency range for high-speed motors. It also enables the parallel connection of motors and special drives using the voltage/frequency ratio. As well as the static speed accuracy and energy saving for synchronous motors with open control loop. It weighs 6.8 kg and has dimensions of 180 mm width, 330 mm height and 198 mm depth. The drive software comprises 5 safety functions. These help the machines meet the safety requirements, whether or not they are used in conjunction with a Preventa safety module. These security features are configured with the SoMove software. Altivar Machine ATV320 was developed for original equipment manufacturers (OEMs). They cover simple and advanced application requirements in the areas of packaging, material handling, textile, material processing, mechanical actuators and lifting operations. It complies with IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line reactors, motor reactors, additional EMC filters) are available for Altivar Machine ATV320 converters. The type of external accessory and options depends on the converter power. The product is delivered in a packaging. It is designed for vertical position (+/- 10°) on a plate using 4 mounting holes. It is fully integrated into the Schneider Electric EcoStruxure machine via DTM. It is possible to configure, control and diagnose ATV320 drives directly in the SoMachine and SoMove software using the same software block (DTM). It is environmentally friendly and meets the requirements of RoHS, WEEE, etc., concerning the protection of the environment.
