Name: Schneider Electric Frequency inverter ATV320U06N4B 0.55 kW 3-phase
Brand: Schneider Electric
SKU: 2914138
Availability: InStock

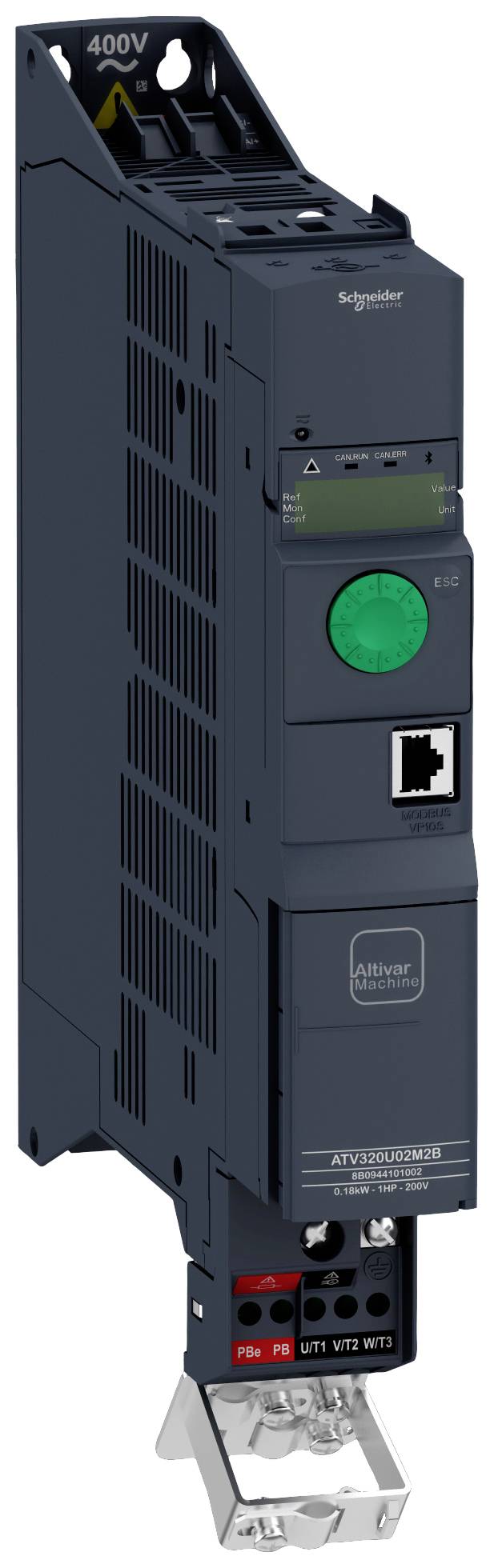

A black electric frequency converter with a green indicator light and Ethernet connection, 400V; shown from the side.

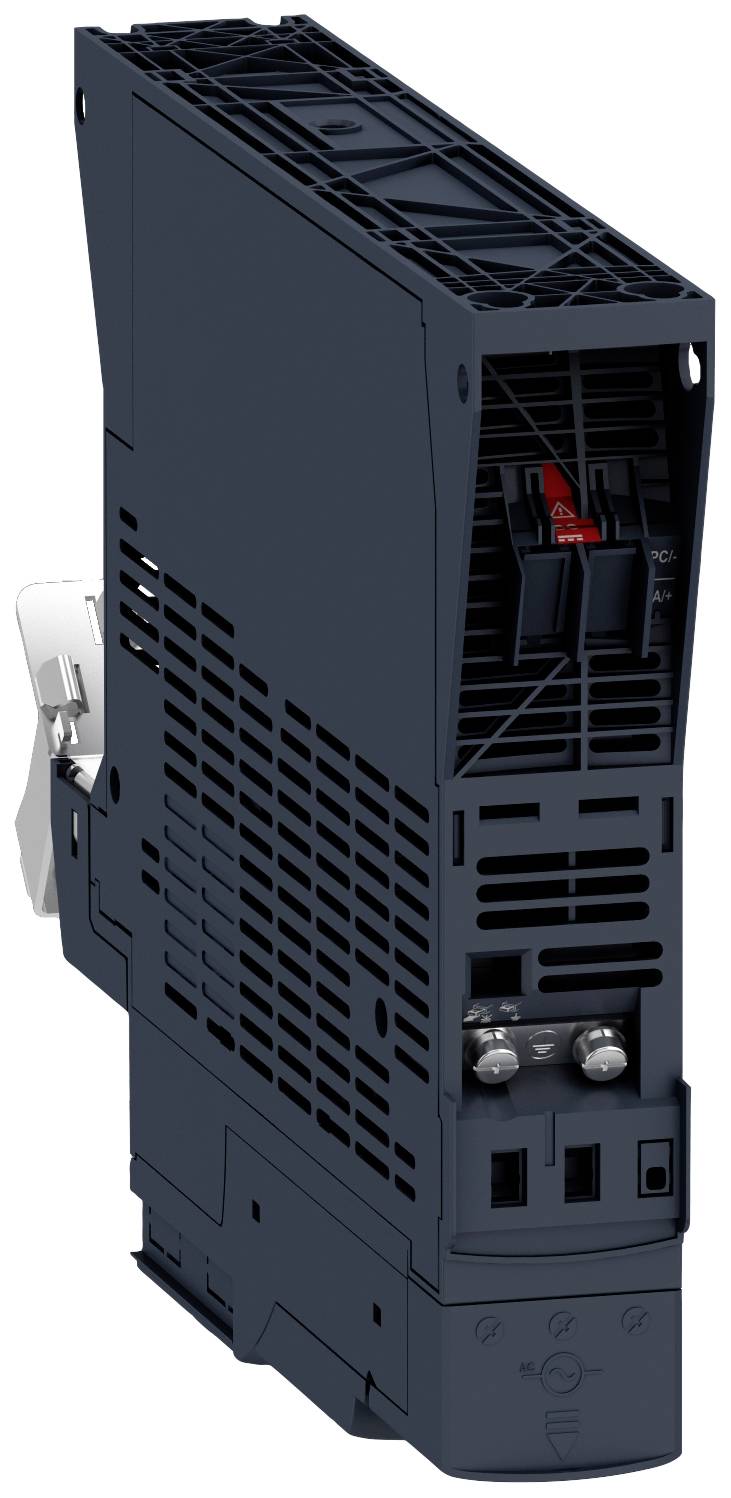

Electronic device in a black enclosure with ventilation slots and connection terminals, fixable laterally on a rail.

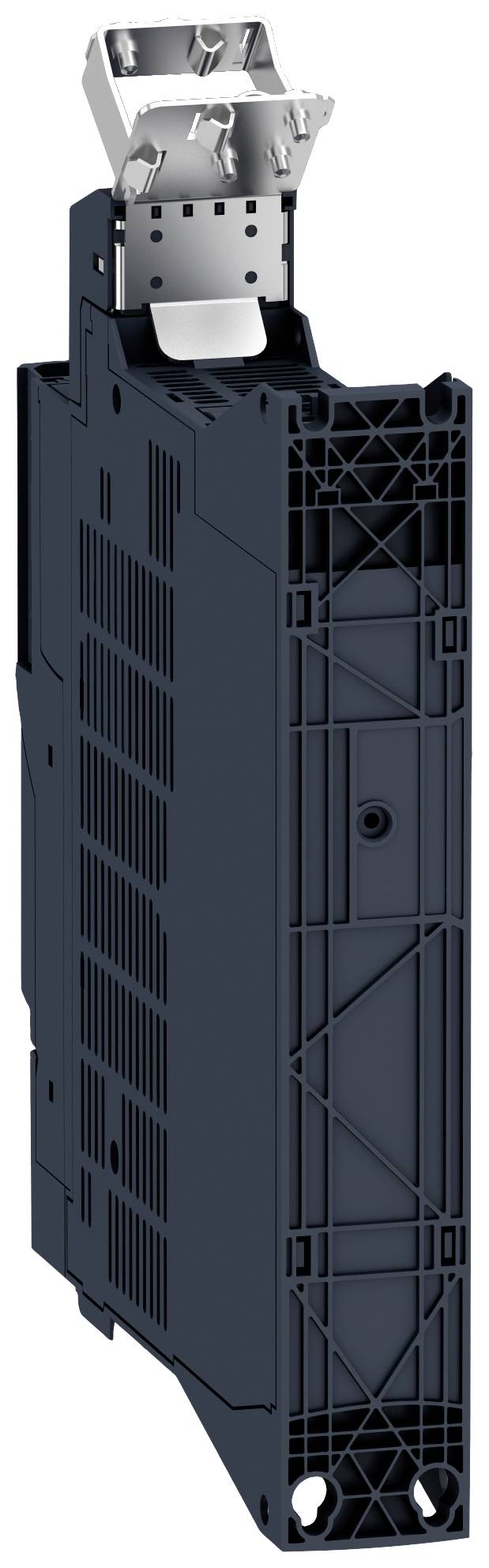

Electrical component, likely a contactor or power switch module, in a black casing with metallic plug connections on top.

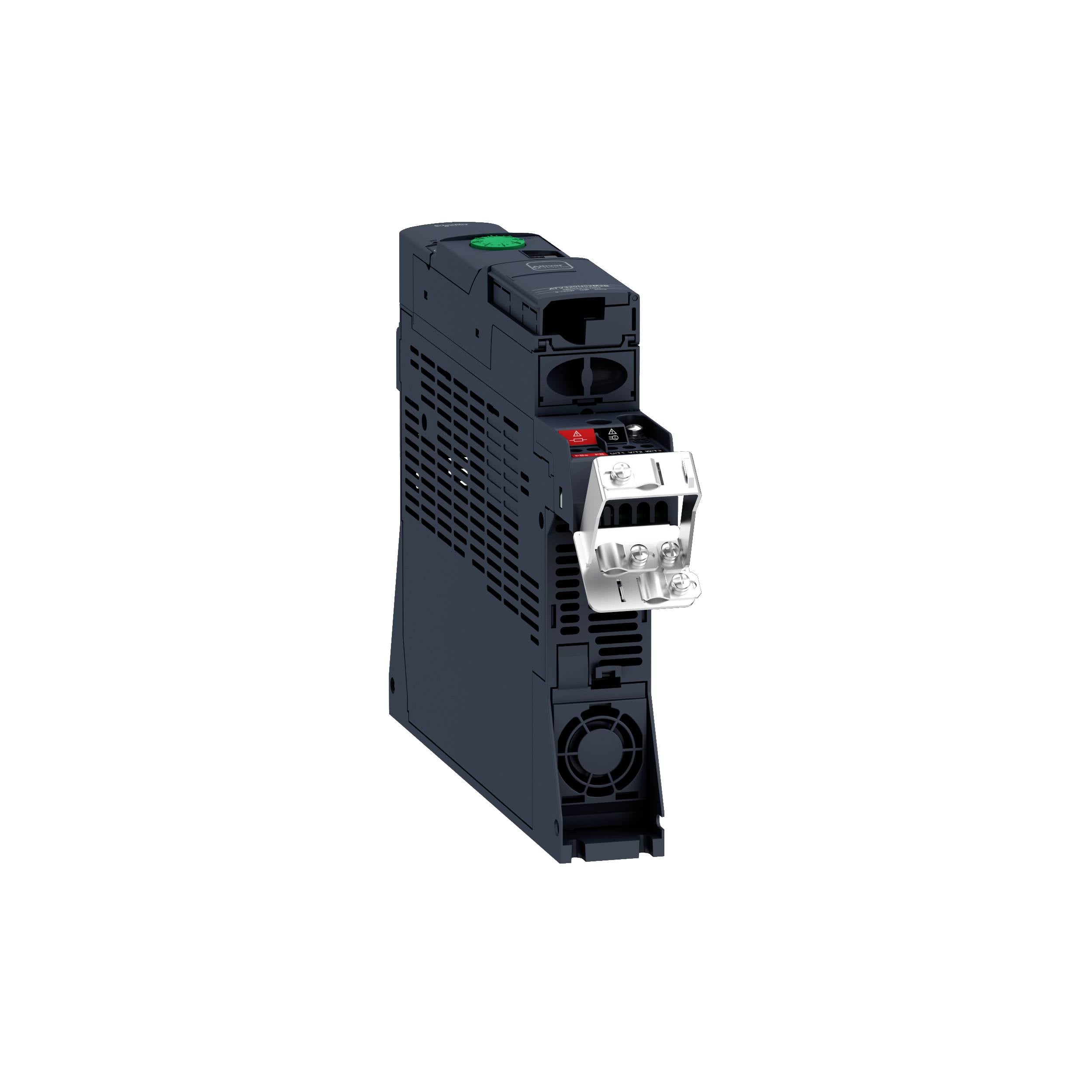

A black electric switch with green and red buttons, mounted on a vertical unit. Used in industrial controls.

1/4

Datasheet (PDF)

Dispatches on Thu 22 Oct

35 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 559.00 / piece)

€ 559.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Product type: Frequency inverter

Output rating (max.): 0.55 kW

Network: 3-phase

Depth: 245 mm

Height: 325 mm

Width: 45 mm

Type: ATV320U06N4B

Filter class: C2

Dim: (W x H x D) 45 x 325 x 245 mm

Manufacturer part #: ATV320U06N4B

: 45 mm

: 325 mm

: 245 mm

: TRUE

: 6

: 1

: 3

: 1

: FALSE

: 1

: 0

: 0

: 1

: 0

: 0

: 0

: 1

: FALSE

: FALSE

: FALSE

: TRUE

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: TRUE

: FALSE

: TRUE

: IP20

: TRUE

: FALSE

: FALSE

: 50/60 Hz

: TRUE

: 0

: U converter

: 3

: 3

: FALSE

: TRUE

: FALSE

: 599 Hz

: 0.55 kW

: 0.55 kW

: 10 %

: 5 %

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: TRUE

: FALSE

: FALSE

: 500 V

: 1.9 A

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2914138 Schneider Electric Frequency inverter ATV320U06N4B 0.55 kW 3-phase

User & Safety Instructions

User & Safety Instructions 2914138 Schneider Electric Frequency inverter ATV320U06N4B 0.55 kW 3-phase

Information

Information 2914138 Schneider Electric Frequency inverter ATV320U06N4B 0.55 kW 3-phase

Description

Frequency converter ATV320, book. Dimensions 45 x 325 x 245 mm, power KW 0.55 kW. Supply voltage 3-phase, 380-500 V 50/60 Hz with integrated EMC filter. Rated supply voltage, min. U1, max. U2 200 (U1)-240 V (U2), 380 (U1)-500 V (U2) Converters are supplied with an integrated category C2 EMC filter. The filter can be switched off. Converters are supplied with an EMC plate for customer-side mounting. Description Integrated safety technology with 5 functions of safely switched-off torque (STO), safe retaining 1 (SS1), safely reduced speed (SLS), safe protective door lock (GDL), safe maximum speed (SMS). Operation of asynchronous and synchronous motors in open loop. SVC control (sensorless vector control) brings the highest rotation number and stability U/F regulation, U/F2 control, energy-saving function. Max. Frequency 599 Hz. Easiest commissioning, intuitive operation as well as by Plug & Drive, default to the most common applications. Options for loading, editing, backing up the configuration of the converter with tools such as the SoMove commissioning software, the distributed terminals and the configuration tools -Simple-Loader- and -Multi-Loader-. Radio noise filter class A integrated, can be deactivated. For use with IT networks. 6 logic inputs can be assigned multiple functions, 3 analog inputs, of which 2 switchable as digital inputs. Built-in brake module allows 4-quadrant operation without any retrofitting.
