Name: Schneider Electric Inverter HY8K3EU1 -
Brand: Schneider Electric
SKU: 3754807
Availability: BackOrder

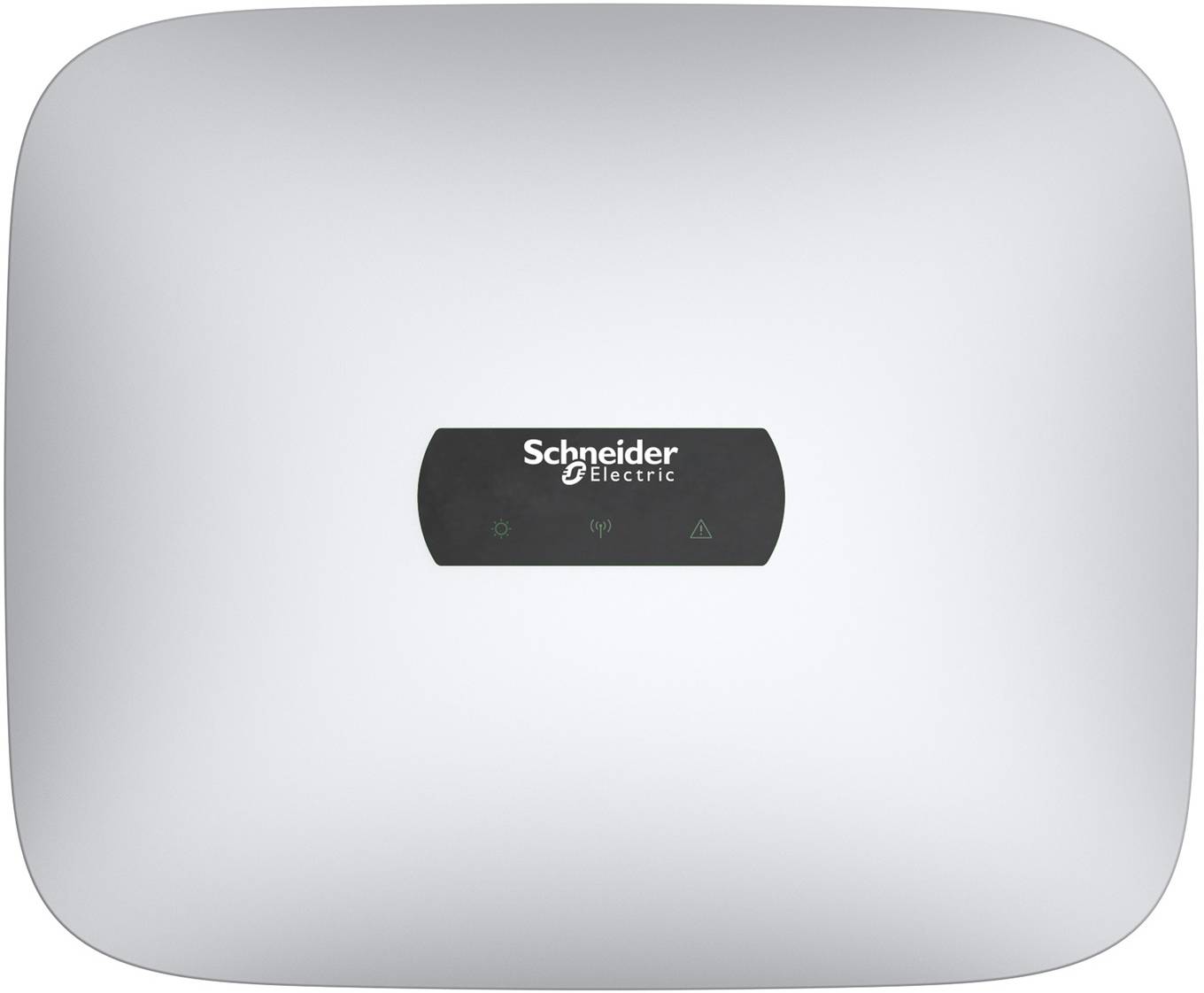

White Schneider Electric wall-mounted device with a small central black status panel and indicator icons.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,289.00 / piece)

€ 1,289.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

AC-connection: Plug connector
Number of independent MPPT inputs: 2
Integrated battery: No.
DC-connection: Plug connector
Display: Without
Wireless: Yes
Supply phases: 3-phase
Ethernet: no
Suitable for outdoor installation: Yes
Integrated DC switch: Yes
Max. Input current DC 13.5 A
With data logger: Yes
With transformer: No.
Emergency power capable: No.
Voltage type of supply voltage: DC
String connections per MPPT input: 1

Product type: Inverter

Weight: 19 kg

Width: 484 mm

Height: 400 mm

Depth: 177 mm

Type: HY8K3EU1

: IP65

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3754807 Schneider Electric Inverter HY8K3EU1 -

User & Safety Instructions

User & Safety Instructions 3754807 Schneider Electric Inverter HY8K3EU1 -

Description

Cutter inverter with 8kVA output power for max. 150% PV-Oversizing (12KWp), suitable for indoor and outdoor installation (IP65). Hybrid inverter for connecting PV modules and a Schneider Boost battery. 2 MPPT inputs for optimizing the PV power, input voltage 140-950VDC each. Self-consumption optimization by means of attached battery Schneider Boost. Commissioning and control via APP. Output voltage 400V / 50Hz, max. Output current 13.5A, efficiency 97.1%, THD max. 3%, noise emission max. 45dBA. Operating temperature -25 to 60°C, Dimensions HxWxD 485x400x172 mm, weight 19kg, protection class IP65. Communication via RS485, CAN, WLAN-FE. Standards: IEC 62109-1/-2, VDE-AR-N-1, IEC 61000-6-4105, IEC 61000-6-3, RoHS and REACH.

This text is machine translated.
