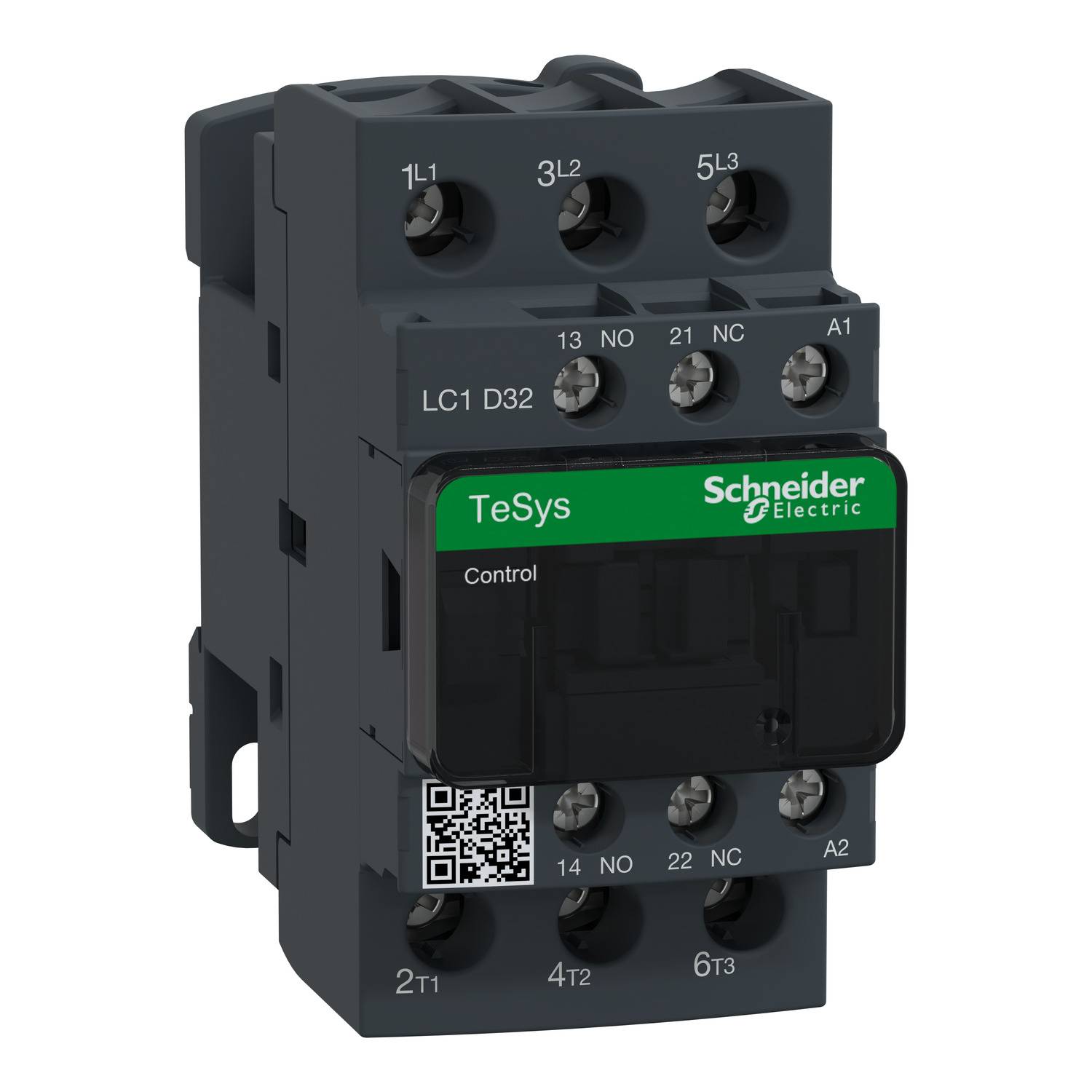

Schneider Electric LC1D32F7TQ Electrical contactor 3 makers 15 kW + auxiliary contact 24 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Power
15 kW
Connection
Spring-loaded terminal
Type
LC1D32F7TQ
Number (Package size 24 pc(s))
Total (€ 97.86 / piece)
€ 2,348.74
plus VAT.
14-day return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1D32F7TQ
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (max.)
110 V AC
- Control voltage range
110 V AC (max)
- Permanent current (max.)
32 A
15 kW
- Features
+ auxiliary contact
- Connection
Spring-loaded terminal
- Width
45 mm
- Height
85 mm
- Depth
92 mm
- Dim
(W x H x D) 45 x 85 x 92 mm
- Content
24 pc(s)
FALSE
15 kW
3
0
1
1
32 A
50 A
Screw connection
AC
18 A
7.5 kW
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3066177 Schneider Electric LC1D32F7TQ Electrical contactor 3 makers 15 kW + auxiliary contact 24 pc(s)
Description
Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO contact + 1 NC contact, rated operating power at AC-3, 400 V 15 kW, rated operating current Ie at AC-3, 400 V 32 A, coil 110 V AC. Dimensions (WxHxD) 45x85x92 mm, weight 3.75 kg. Category AC-1, AC-3. Without built-in amplitude limiter diode. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Certifications according to LROS (Lloyds register of shipping), UL, CCC, GOST, DNV, RINA, CSA, GL, BV. Product standards according to CSA C22.2 NO. 14, UL 508, EN/IEC 60947-4-1, EN/IEC 60947-5-1.
