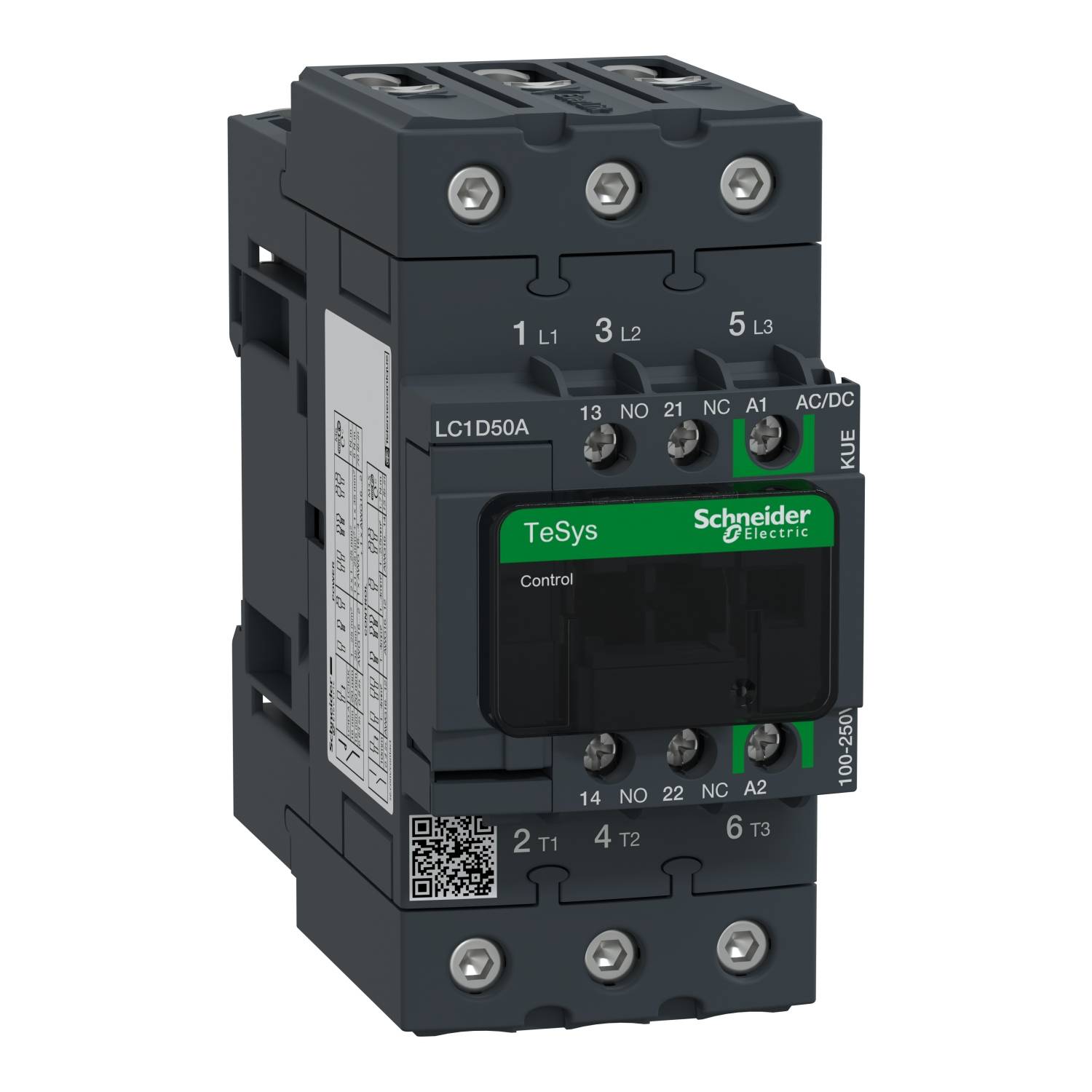

Schneider Electric LC1D50AKUE Electrical contactor 3 makers + auxiliary contact 1 pc(s)
EAN:
Part number:
Item no:
Product type
Electrical contactor
No. of pins
3-pin
Connection
Screw terminal
Type
LC1D50AKUE
Contact type
3 makers
Datasheet (PDF)
Number
Total (€ 340.34 / piece)
€ 340.34
plus VAT.
14 days return policy included
Technical specifications
- Product type
Electrical contactor
- Type
LC1D50AKUE
- No. of pins
3-pin
- Contact type
3 makers
- Auxiliary contact type
1 maker
- Control voltage (min.)
100 V AC
- Control voltage (max.)
250 V AC
- Control voltage range
100 - 250 V AC
- Permanent current (max.)
50 A
- Features
+ auxiliary contact
- Connection
Screw terminal
- Width
55 mm
- Height
122 mm
- Depth
120 mm
- Dim
(W x H x D) 55 x 122 x 120 mm
- Content
1 pc(s)
FALSE
22 kW
3
0
1
1
50 A
80 A
Other
AC/DC
25 A
11 kW
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2925177 Schneider Electric LC1D50AKUE Electrical contactor 3 makers + auxiliary contact 1 pc(s)
Datasheet 2925177 Schneider Electric LC1D50AKUE Electrical contactor 3 makers + auxiliary contact 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2925177 Schneider Electric LC1D50AKUE Electrical contactor 3 makers + auxiliary contact 1 pc(s)
Information
Information 2925177 Schneider Electric LC1D50AKUE Electrical contactor 3 makers + auxiliary contact 1 pc(s)
Description
Power protection TeSys LC1D. 3 pin, 3 normally open contact. Additional auxiliary contacts - 1 NO + 1 NC, rated operating power at AC-3, 400 V 22 kW, rated operating current Ie at AC-3, 400 V 50 A, coil 100-250 V AC / DC. Dimensions (WxHxD) 55x122x120 mm, weight 0.997 kg. EverLink-clamps inner hexagon. In accordance with local electrical wiring regulations, an insulated Allen wrench size 4 must be used (order no. LADALLEN4). Category AC-1, AC-3. Coil AC/DC, electronic, integrated bi-directional peak limiting. Fast and easy setup. Safe and durable power connection with Everlink and spring-loaded terminals. Suitable for security applications thanks to mechanically coupled contacts and mirror contacts. Screw terminal connection control part.
