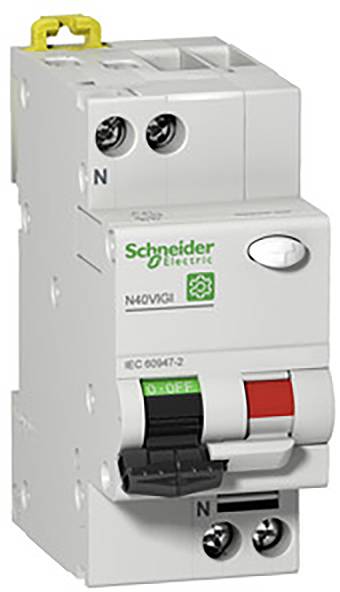

Schneider Electric M9D11616 RCBO 0.03 A
Product type
RCBO
Number of pins
2
Release characteristics
C
Differential current rating
0.03 A
Switch-off capacity
6 kA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 124.99 / piece)
€ 124.99
incl. VAT
14-day return policy included
Technical specifications
- Product type
RCBO
- Number of pins
2
- Release characteristics
C
- Differential current rating
0.03 A
- Content
1 pc(s)
- Switch-off capacity
6 kA
AC
44 mm
16 A
240 V
C
400 V
0.03 A
AC
0.25 kA
3
4
3
2
50 Hz
IP20
1
TRUE
6 kA
TRUE
FALSE
2
FALSE
4
6
Undelayed
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Datasheet 2934111 Schneider Electric M9D11616 RCBO 0.03 A
User & Safety Instructions
User & Safety Instructions 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Information
Information 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Information 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Information 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Information 2934111 Schneider Electric M9D11616 RCBO 0.03 A
Description
FI/LS-switch Multi 9 OEM, N40 Vigi, 6kA (IEC/EN 61009-1). 1-pin+N, nominal stom 16A, C-characteristic, nominal fault current 30 mA, operating voltage (Ue) 240V AC, insulation voltage (UI) 400V AC. Fastening on DIN rail via normal clip fastener. Jumber switching for low wear switching of the contacts. Test button for regular functional testing. FI/LS-switch N40 Vigi for the protection of persons in direct contact, systems against fire hazard, overload and short circuit and for switching and disconnecting circuits. Technology of the triggering unit- thermo-magnetic. Additional stackable auxiliary modules (optional) - display of switch position (OF), error triggering (SD), operating current release (MX, MX + OF), undervoltage release (MN, MNs, MNx) Tool-free assembly on the left side of the device. The N40 Vigi meets the following standards IEC / EN 61009-1.
This text is machine translated.
This text is machine translated.
