Schneider Electric NSYCRN43200P Door 300 x 400 x 200 Steel Grey 1 pc(s) Piece

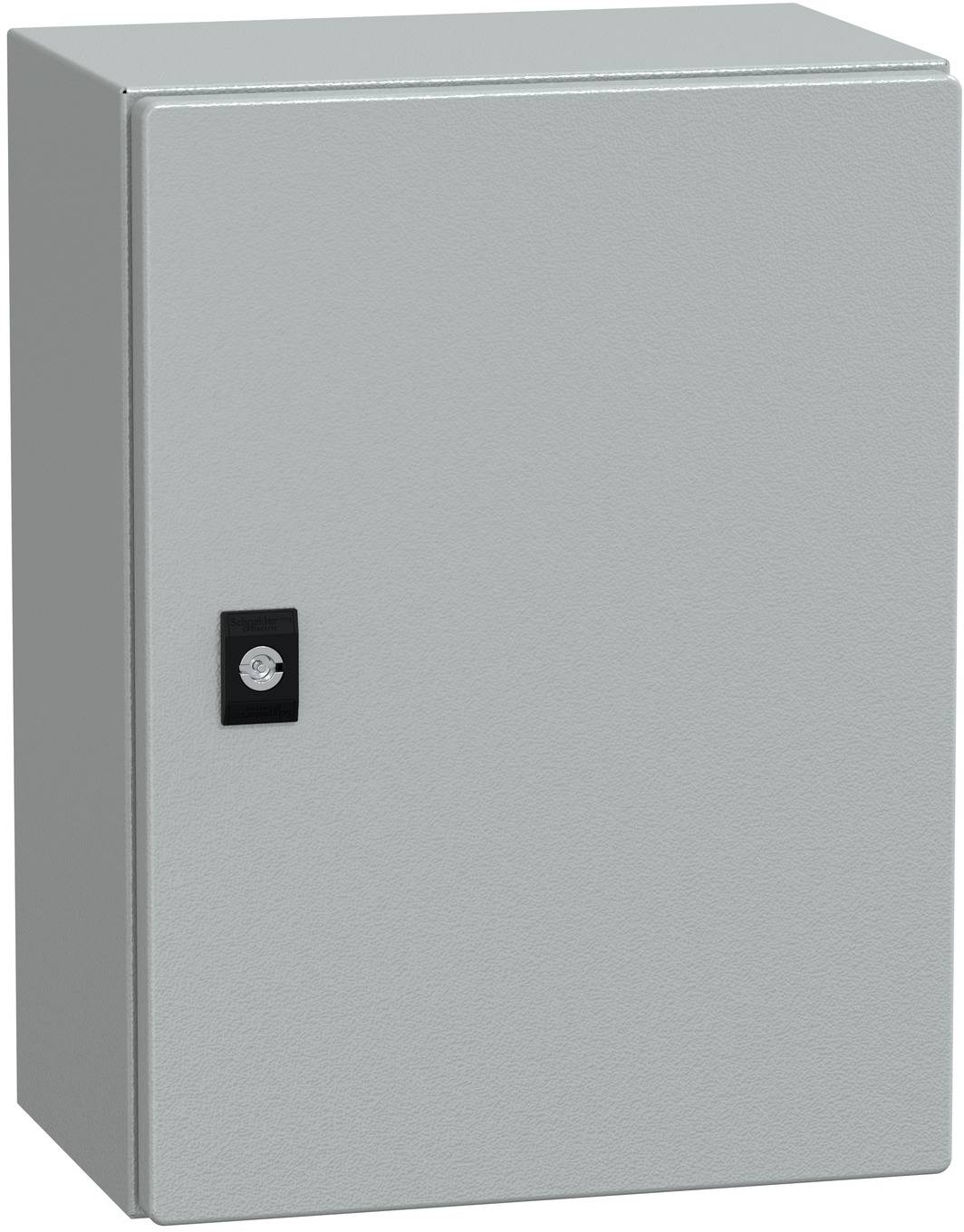

PanelSet CRN steel wall housing for versatile applications. Designed for use in harsh environments and resistant to strong shocks according to IK10 (IEC 62262) and IP66 (IEC 60529) dust and water standards. The cabinet has a nominal height, width and depth of 400 mm, 300 mm and 200 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The mounting plate is made of galvanized steel and is simply made. The cabinet consists of a body, a cable entry plate, a simple door and a lock. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door, cable entry plates and mounting plate can be removed for maintenance purposes. The net weight of the cabinet is 6.946kg. The sides consist of a single edged profile, and the rear welded double profile area forms a protected, sealed area. The cabinet can be operated from the front.
