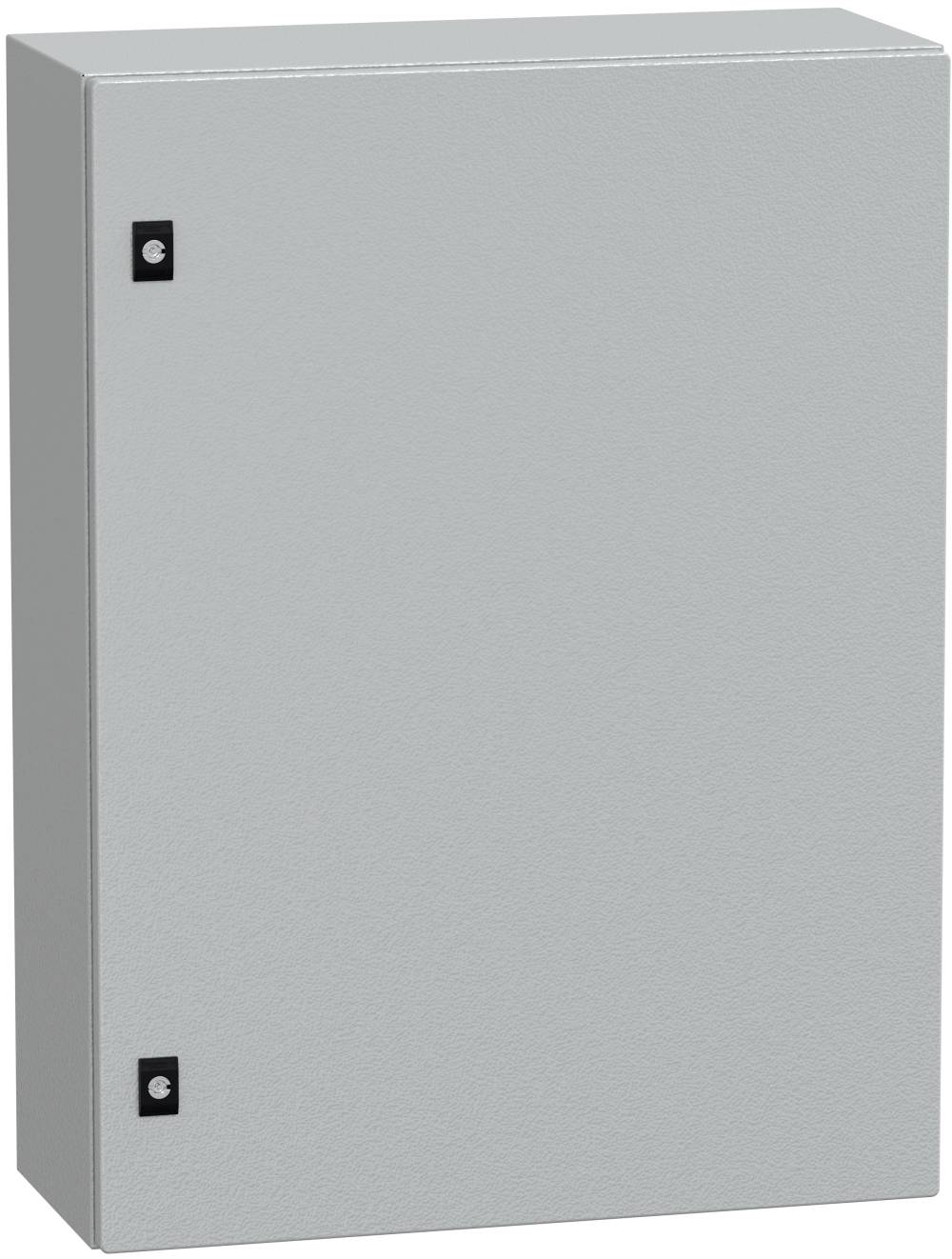

Schneider Electric NSYCRN86250P Door 600 x 800 x 250 Steel Grey (RAL 7035) 1 pc(s) Piece

PanelSet CRN steel wall housing for versatile applications. Designed for use in harsh environments and resistant to high impact according to IK10 (IEC 62262) and IP66 (IEC 60529) dust and water. The cabinet has a nominal height, width and depth of 800 mm, 600 mm and 250 mm. The cabinet is gray (RAL 7035) and has an epoxy-polyester powder coating. The cabinet consists of a body, a cable entry plate, a simple door with lock and a galvanized mounting plate. The door can be opened up to 120 degrees and allows easy access to the equipment. The opening direction of the door can be adjusted (reversible). The door is equipped with a three-point locking system with a 3-mm double-bit insert. The door, cable entry plates and mounting plate can be removed for maintenance purposes. The net weight of the cabinet is 28.024kg. Certified according to cUL, UL and DNV‑GL and conform to IEC 62208. A double profile area welded at the rear forms a protected sealed zone, the sides consist of a single edged profile. The cabinet can be operated from the front.
