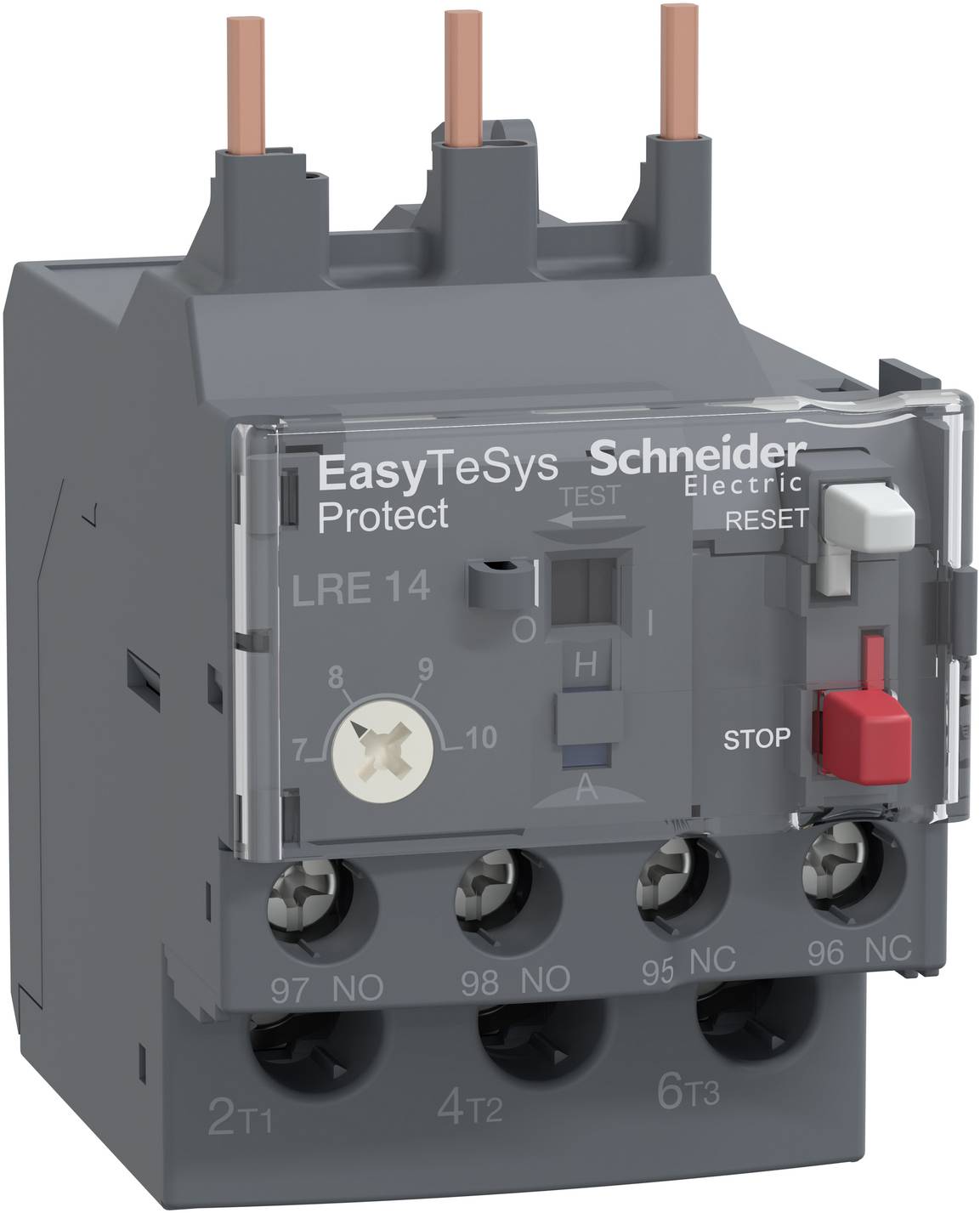

Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE14 Overload
Product type
O/L relay
Functions
Overload
Contact type
1 maker
Type
LRE14
Operating voltage
690 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 75.99 / piece)
€ 75.99
incl. VAT
14-day return policy included
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 1
- Trigger CLASS 10 A
- Max. Rated operating voltage Ue 690 V
- Mounting type: Direct mounting
- Reset function automatic: No.
- Reset function input: No.
- Reset button function: Yes
- Product type
O/L relay
- Type
LRE14
- Functions
Overload
- Operating voltage
690 V
- Features
+ auxiliary contact
- Contact type
1 maker
- Connection
Screw terminal
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3755170 Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE14 Overload
User & Safety Instructions
User & Safety Instructions 3755170 Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE14 Overload
Description
The LRE relay is a thermal differential overload relay for use with fuses or GV2 L and GV3 L. magnetic circuit breakers. Its thermal setting range is 7-10A 50/60Hz and tripping class 10A according to IEC 60947-4-1. It can be mounted directly on Easy TeSys control contactors with screw terminals. It protects unbalanced loads and 4kW motors at 400VAC. It provides manual or automatic reset, trigger auxiliary contact and flag display. It is available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
This text is machine translated.
This text is machine translated.
