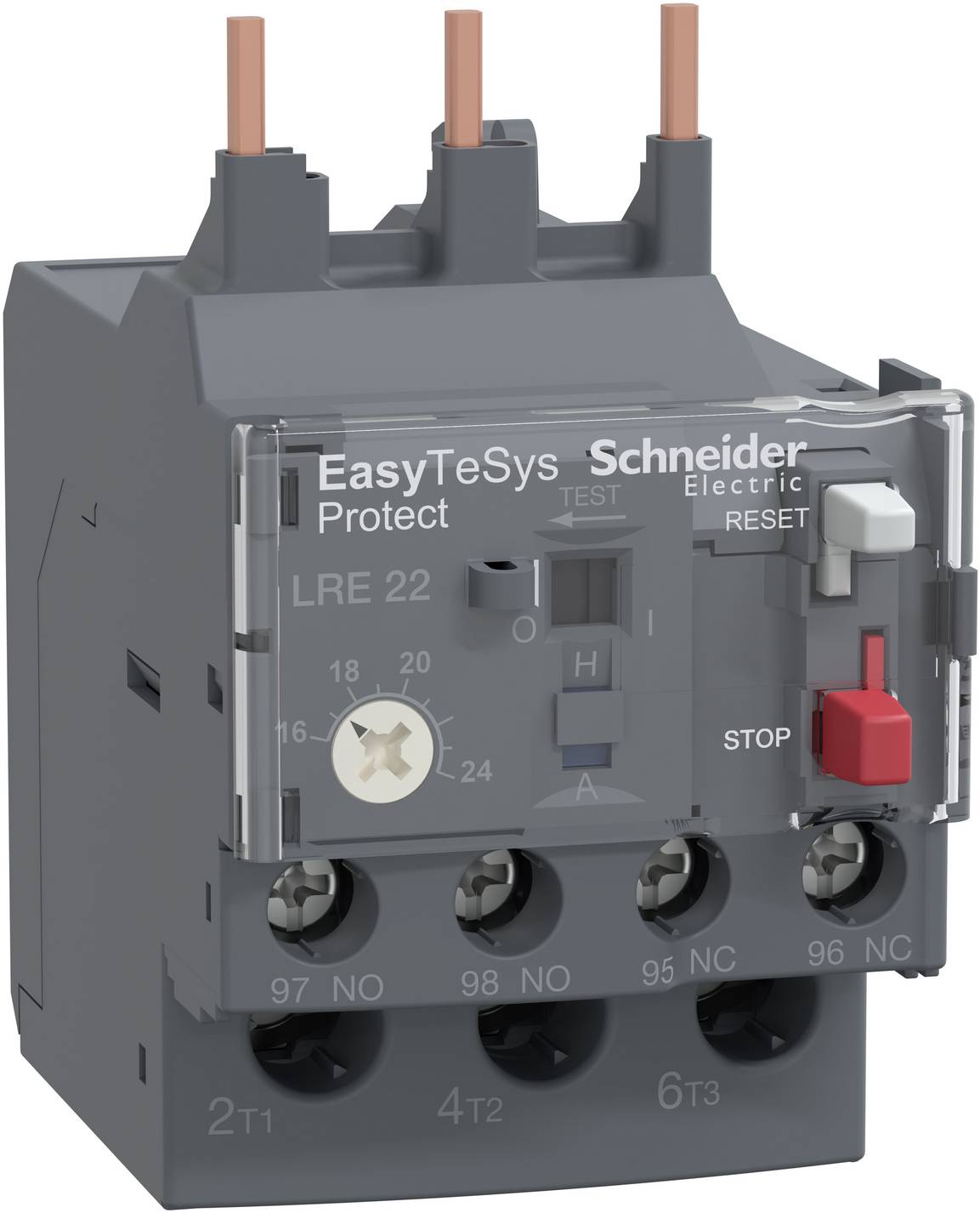

Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE22 Overload
Packaging type
Piece
Product type
O/L relay
Functions
Overload
Contact type
1 maker
Type
LRE22
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 73.99 / piece)
€ 73.99
incl. VAT
14-day return policy included
Technical specifications
- Connection type main circuit: Screw terminals
- Number of auxiliary contacts as NO contacts: 1
- Number of auxiliary contacts as changer: 0
- Number of auxiliary contacts as NC contacts: 1
- Trigger CLASS 10 A
- Max. Rated operating voltage Ue 690 V
- Mounting type: Direct mounting
- Reset function automatic: No.
- Reset function input: No.
- Reset button function: Yes
- Packaging type
Piece
- Product type
O/L relay
- Type
LRE22
- Functions
Overload
- Operating voltage
690 V
- Contact type
1 maker
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3755176 Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE22 Overload
User & Safety Instructions
User & Safety Instructions 3755176 Schneider Electric O/L relay 690 V 1 maker 1 pc(s) LRE22 Overload
Description
The LRE relay is a thermal overload relay for use with fuses or GV2 L and GV3 L magnetic circuit breakers. Its thermal setting range is 16-24A 50/60Hz and the 10A tripping class according to IEC 60947-4-1. It can be mounted directly on Easy TeSys control contactors with screw terminals. It protects unbalanced loads and 15kW motors at 400VAC. It provides manual or automatic reset, trigger auxiliary contact and flag display. It is available worldwide, multiple certified (IEC, UL, CSA, CCC, EAC, Marine) and RoHS/REACH compliant.
This text is machine translated.
This text is machine translated.
