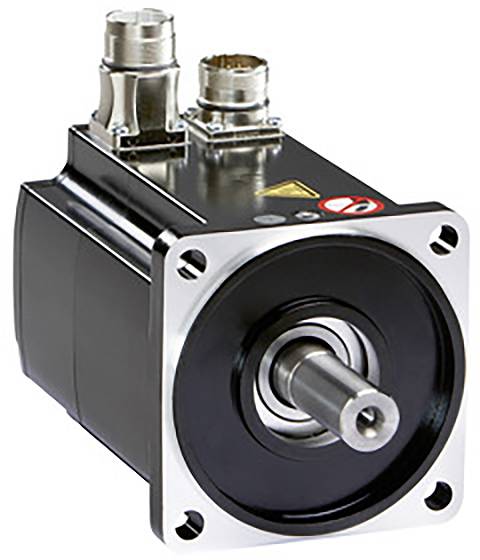

Schneider Electric Servo motor BMH2051P07A2A 34.4 Nm Shaft diameter: 38 mm

BMH servo motor of the Lexium 32 servo drives series. The BMH series of three-phase AC servomotors has a mean rotor moment of inertia and is perfectly adapted for applications with high loads. Owing to the winding technology, a very high power density results in a compact design This servo has a nominal continuous stop torque of 34.4 Nm and achieves a peak torque of 110 Nm. Its rated speed is up to 3600 rpm depending on the supply voltage. This results in a voltage-dependent nominal power up to 6.75 kW. The built-in encoder is designed as a multiturn with 16 periods / revolution (16x1024x4096) as SinCos Hiperface. The electrical connection is made via plug connector M40 and M23, angled and rotatable by 90°. The motor flange is 205 mm for attachment. The drive shaft has a diameter of 38 mm. The shaft end is designed to be smooth and compliant with IP54 protection class. The motor housing conforms to protection class IP65. There is no holding brake. The servo amplifiers of the Lexium series LXM32 are recommended for operating the synchronous motor. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and recycling management that support your sustainability goals.
