Name: Schneider Electric SSR SSP1D440BDT 40 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)
Brand: Schneider Electric
SKU: 2922443
Availability: InStock

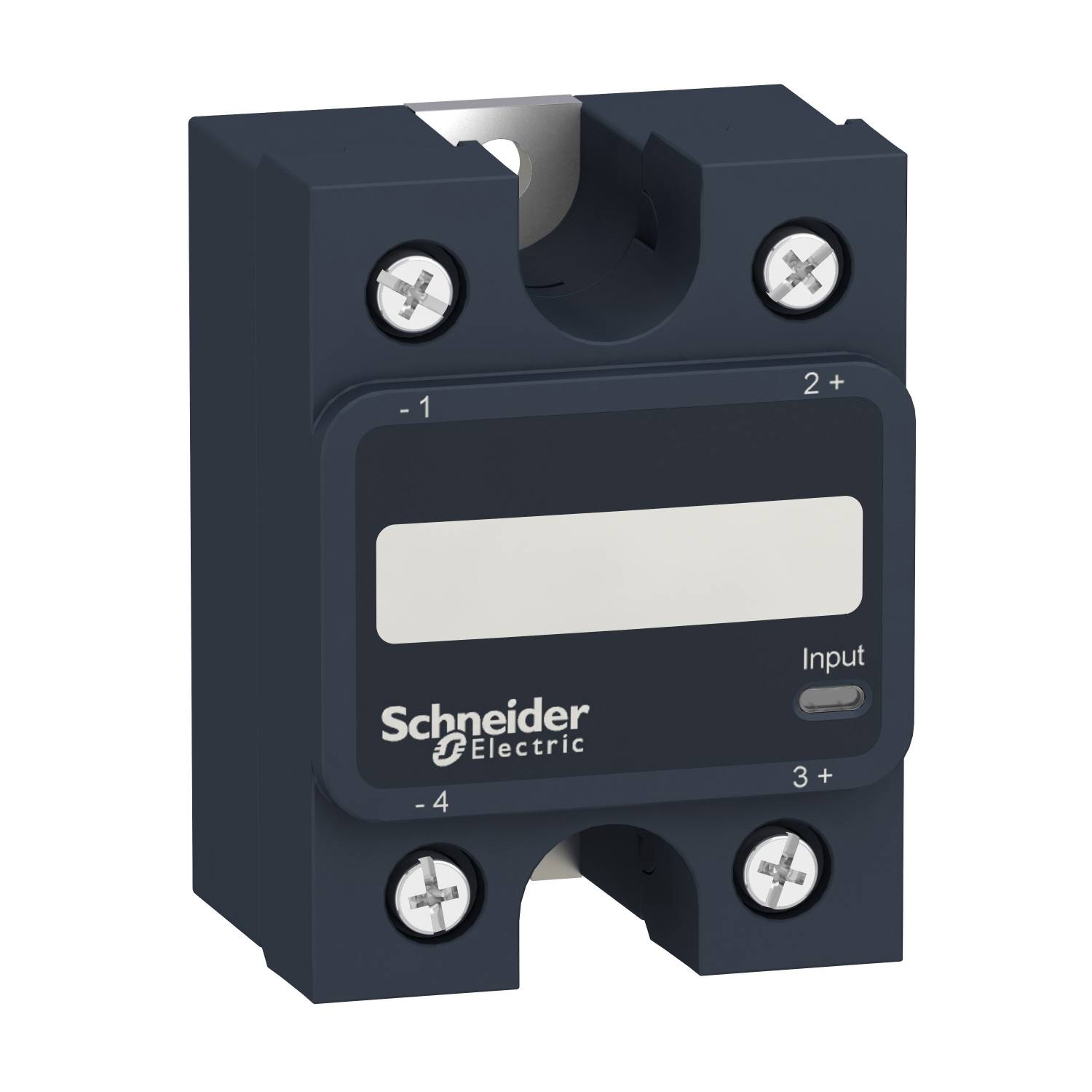

A rectangular, black electrical relay by Schneider Electric with input terminals and screw fastenings.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

3.5 V DC

Control voltage (max.)

32 V DC

Switching voltage (max.)

150 V DC

Datasheet (PDF)

Dispatches on Fri 30 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 79.99 / piece)

€ 79.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Packaging type: Piece

Product type: SSR

Type: SSP1D440BDT

Switching type: DC circuit

Connection: Screw terminal

Control voltage (min.): 3.5 V DC

Control voltage (max.): 32 V DC

Control voltage range: 3.5 - 32 V DC

Switching voltage (min.): 1 V DC

Switching voltage (max.): 150 V DC

Current load (max.): 40 A

Output voltage (min.): 1 V DC

Output voltage (max.): 150 V DC

Max. output current: 40 A

Width: 45 mm

Height: 59 mm

Depth: 35 mm

Permanent current (max.): 40 A

Content: 1 pc(s)

: 1

: FALSE

: 40 A

: 40 A

: AC/DC

: 40 A

: 40 A

: 40 A

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2922443 Schneider Electric SSR SSP1D440BDT 40 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2922443 Schneider Electric SSR SSP1D440BDT 40 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

Information

Information 2922443 Schneider Electric SSR SSP1D440BDT 40 A Switching voltage (max.): 150 V DC DC circuit 1 pc(s)

Description

Zelio relay Semiconductor relay for mounting on a heatsink or on mounting plate. The low internal voltage drop reduces the heat loss. The factory-fitted heat sink film enables quick, simple and clean installation without the use of heat-conducting paste or pads. Switching voltage 1-150 VDC. Current 40 A. Pole 1. Behaviour DC switch switching Control voltage 3,5-32 VDC. LED indicator Dimensions 45x59x35 mm Hockey puck design. Terminals with telescopic screws make it easy to connect cables with ring eyelets and cable lugs. Special pre-assembled heat insulation film. To select the separate heat sink, you have to consider heat.

This text is machine translated.
