Buy Schurter 0031.3601 0031.3601 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)

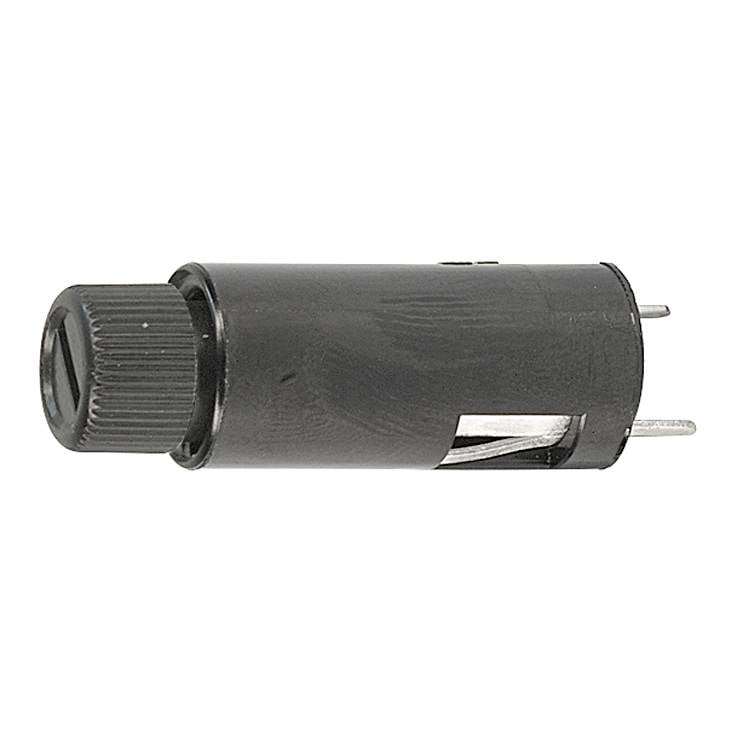

A black round cigarette lighter socket with two metal contacts at one end and a ribbed handle at the other.

Image similar

Product type

Fuse holder

Mounting type

PCB mount

Suitable for

Micro fuse 5 x 20 mm

Connection

Solder pins

Material

Duroplast

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

15 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Report legal concerns

Highlights & Details

Schurter high-current fuse holder

Our service for you

Technical specifications

Series: FAP
Dimensions: Height 36.6 mm
Approvals VDE
Design: Closed
Mounting: PCB mounting
Contact material: Tin-plated copper alloy
Applications: For G-fuses 5x20 mm
Housing material: Duroplast (UL94V-0)
Identification: Logo, type, nominal voltage, nominal current
Colour, black
Connection type: Soldering pins
Diameter: 11.6 mm
Weight: 4.8 g
Min. Operating temperature range -40 °C.
Operating temperature range, max. 85 °C.
Rated current 6.3 A
Dielectric strength 3 kV
Surge voltage resistance: 4 kV
NOMINAL VOLTAGE V AC 250 V AC
Contact resistance max. 10 mOhm
Insulation resistance 10 MOhm
Nominal power intake 1.6 W
Soldibility 245 °C / 2 s
IEC 61140 standard
Insulation class IP40
Contact protection category PC1

Product type: Fuse holder

Connection: Solder pins

Material: Duroplast

Mounting type: PCB mount

: IP40

Suitable for: Micro fuse 5 x 20 mm

Touch protection type: PC1

Weight: 4.80 g

Min. temperature: -40 °C

Max. temperature: 85 °C

Length: 36.6 mm

Height: 36.60 mm

(Ø): 11.60 mm

Content: 1 pc(s)

Dim: (Ø x H) 11.60 mm x 36.60 mm

RoHS-compliant: Yes

Type: 0031.3601

Certification marks: IEC 61140

Documents & Downloads

Datasheet

Datasheet 3156516 Schurter 0031.3601 0031.3601 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3156516 Schurter 0031.3601 0031.3601 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)

Description

• Closed fuse holder for currents of 6.3A (VDE)
• For 5x20mm fuses
• Slot for screwdriver, standing
• Material cap: Thermoplastic, black, UL 94V-0
• Solder connections for PCB mounting
• Protection class IP40 (according to IEC 61140)
• Soldibility: 245°C / 3s
• Suitable for devices of protection class I according to IEC61140

This text is machine translated.
