Name: Schurter 0031.8201 0031.8201 Fuse holder Suitable for Micro fuse 5 x 20 mm 100 pc(s)
Brand: Schurter
SKU: 3190312
Availability: InStock

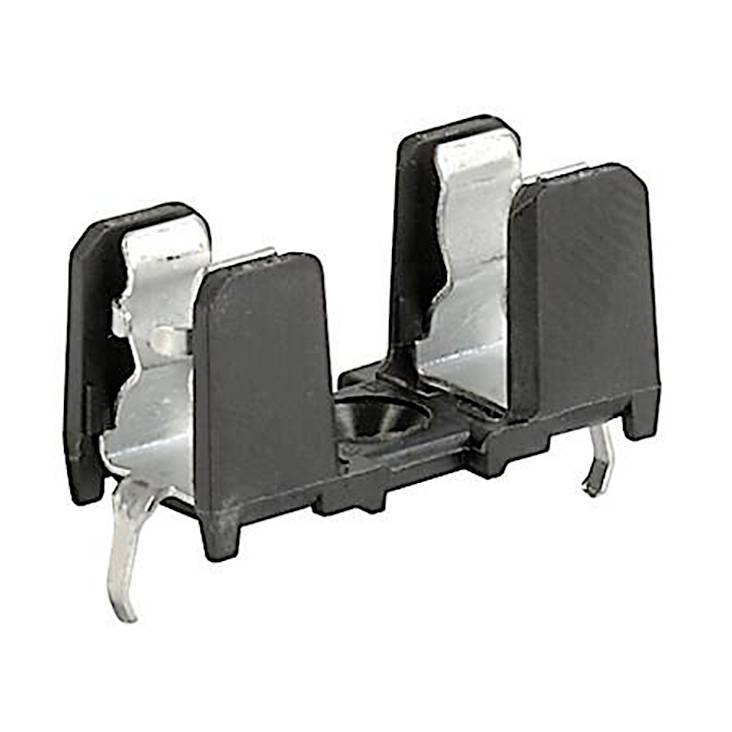

A black plastic fuse holder with metallic terminals, suitable for mounting on a printed circuit board in electronic devices.

Image similar

Product type

Fuse holder

Mounting type

PCB mount

Suitable for

Micro fuse 5 x 20 mm

Connection

Solder pins

Material

Thermoplastic

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 100 pc(s))

Set(s)

Total (€ 0.58 / piece)

€ 57.99

incl. VAT

Only 3 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Schurter Open Fuse Holder

Our service for you

Technical specifications

Series OGN
Dimensions: Length 22.5 mm
Dimensions: Width 10.8 mm
Dimensions: Height 15.5 mm
Approvals: CULus,VDE
Design: Open
Mounting: PCB mounting
Contact material: Tin-plated copper alloy
Applications: For G-fuses 5x20 mm
Note:IP20 together with cover cap 0853.0576
Housing material: Thermoplastic (UL 94V-0)
Colour, black
Connection type: Soldering pins
Weight: 1.7 g
Min. Operating temperature range -40 °C.
Operating temperature range, max. 85 °C.
Rated current 10 A
Dielectric strength 3 kV
Surge voltage resistance: 4 kV
NOMINAL VOLTAGE V AC 500 V AC
Contact resistance max. 10 mOhm
Insulation resistance 10 MOhm
Nominal power intake 4 W
Soldibility 245 °C / 3 s
IEC 60335-1 standard
Insulation class IP20 with cover cap

Product type: Fuse holder

Connection: Solder pins

Material: Thermoplastic

Mounting type: PCB mount

Suitable for: Micro fuse 5 x 20 mm

Touch protection type: IP20

Weight: 1.70 g

Min. temperature: -40 °C

Max. temperature: 85 °C

Length: 22.50 mm

Width: 10.00 mm

Height: 15.50 mm

Content: 100 pc(s)

Dim: (L x W x H) 22.50 x 10.00 x 15.50 mm

RoHS-compliant: Yes

Type: 0031.8201

Documents & Downloads

Datasheet

Datasheet 3190312 Schurter 0031.8201 0031.8201 Fuse holder Suitable for Micro fuse 5 x 20 mm 100 pc(s)

User & Safety Instructions

User & Safety Instructions 3190312 Schurter 0031.8201 0031.8201 Fuse holder Suitable for Micro fuse 5 x 20 mm 100 pc(s)

Description

• IP 20 with covering cap 0853.0576
• Suitable for devices in unattended operation: Domestic appliances, industrial electronics, control electronics

This text is machine translated.

Hints

IP20 in conjunction with cover cap 0853.0576

Description

• IP 20 with covering cap 0853.0576
• Suitable for devices in unattended operation: Domestic appliances, industrial electronics, control electronics
