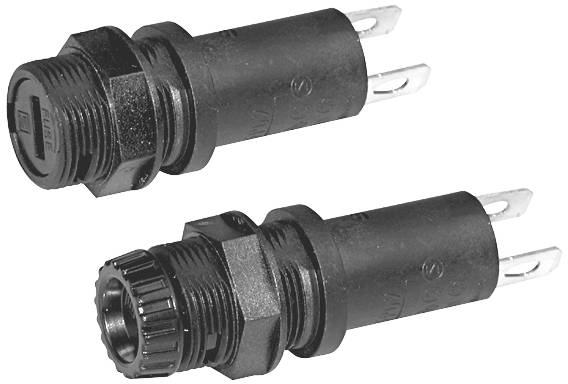

Image similar
Image similar
Schurter 3101.0120 3101.0120 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fuse holder
Suitable for
Micro fuse 5 x 20 mm
Material
Thermoplastic
IP rating
IP40
Number of fuses
1
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
Highlights & Details
Schurter flush-mount fuse holder
Our service for you
Technical specifications
- Series FPG1
- Dimensions: Height 46.5 mm
- Approvals: CULus, VDE, KTL
- Design: Closed
- Mounting: Front panel mounting
- Mounting: Screw nut
- Contact material: Tin-plated copper alloy
- Applications: For G-fuses 5x20 mm
- Housing material: Thermoplastic (UL 94V-0)
- Identification: Logo, type, rated voltage, rated current, rated power, Test mark
- Colour, black
- Connection type: Spade connector 4.8x0.5 mm
- Diameter 15 mm
- Weight: 5.7 g
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Rated current 10 A
- Dielectric strength 3 kV
- Surge voltage resistance: 4 kV
- NOMINAL VOLTAGE V AC 250 V AC
- Contact resistance max. 10 mOhm
- Insulation resistance 10 MOhm
- Nominal power intake 2.5 W
- Soldibility 350 °C / 3 s
- IEC 60335-1 standard
- Insulation class IP40
- Contact protection category: PC2
- Product type
Fuse holder
- Material
Thermoplastic
IP40
- Suitable for
Micro fuse 5 x 20 mm
- Number of fuses
1
- Type
With finger grip for opening by hand
- Touch protection type
PC2
- Weight
5.70 g
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Height
46.50 mm
- (Ø)
15.00 mm
- Dimensions
Höhe: 46.5 mm. Durchmesser: 15 mm mm
- Content
1 pc(s)
- Dim
(Ø x H) 15.00 mm x 46.50 mm
- RoHS-compliant
Yes
- Type
3101.0120
Documents & Downloads
Datasheet
Datasheet 3306379 Schurter 3101.0120 3101.0120 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306379 Schurter 3101.0120 3101.0120 Fuse holder Suitable for Micro fuse 5 x 20 mm 1 pc(s)
Description
• Closed fuse holder for 5x20 mm fuse with finger grip for opening by hand, standing
• Solder and 4.8x0.5mm plug connections for PCB mounting
• Mounting: Panel mounting, front side
• Fastening: Screw nut SW14
• Sealed from the back
• Suitable for devices of protection class I in accordance with IEC 60068-1, e.g. for household appliances, medical devices, etc.
This text is machine translated.
• Solder and 4.8x0.5mm plug connections for PCB mounting
• Mounting: Panel mounting, front side
• Fastening: Screw nut SW14
• Sealed from the back
• Suitable for devices of protection class I in accordance with IEC 60068-1, e.g. for household appliances, medical devices, etc.
This text is machine translated.
