Name: Schützinger DI SAB 9430 Au / GE Safety surface-mount socket straight Yellow 1 pc(s)
Brand: Schützinger
SKU: 3385766
Availability: InStock

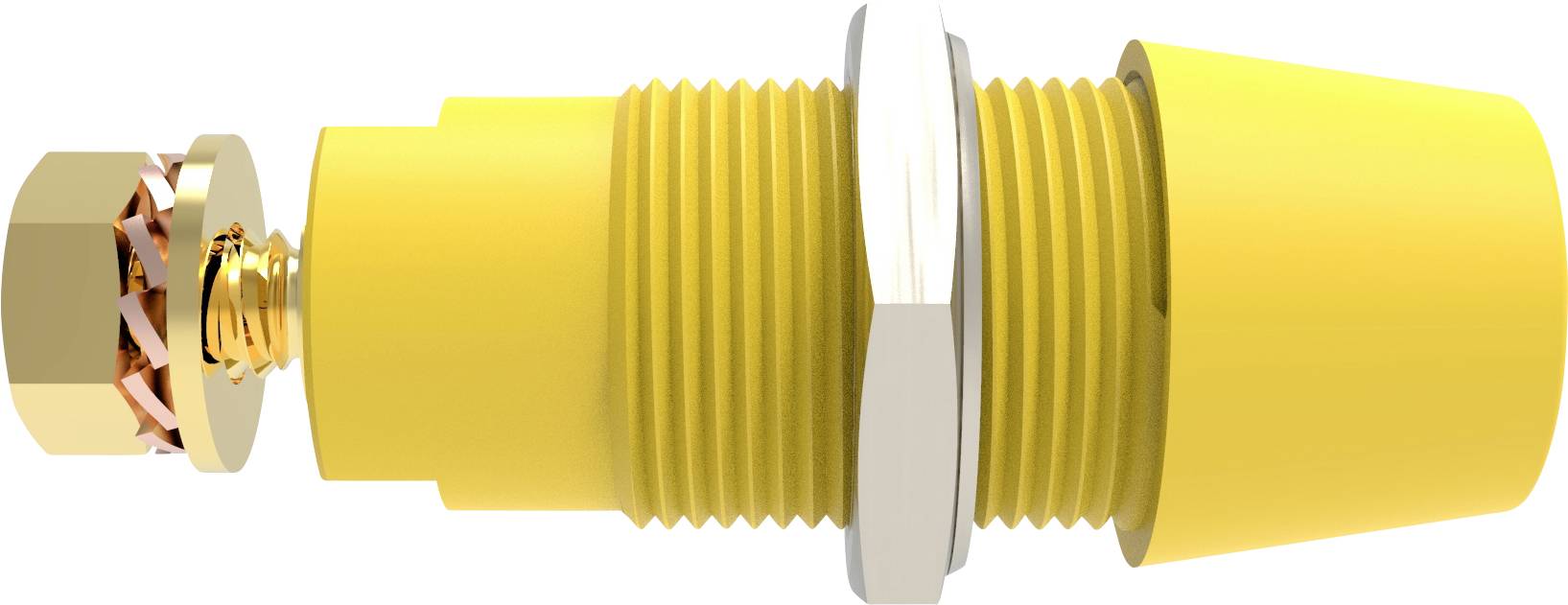

Yellow, cylindrical component with threading and a metal ring. On the left, a small, copper-coloured element protrudes from the main part.

Product type

Safety surface-mount socket

Connector type

straight

Connection

Socket

Screws

Nominal current

32 A

Nominal current - rounded value

32 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

20 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Mounted safety socket DI SAB 9430 Au / GE

32 A Yellow

Technical specifications

Colour: yellow.
Diameter of socket 4 mm
Connection 1: Socket
Connection 2: Screws
Design 4 mm-Safety program
Contact parts: Gold-plated
PA 6.6 (polyamide) UL94 - V2
Mounting hole 12.2 mm
M4 x 0.7 nuts
Constant resistance 7 mΩ / 5 mΩ
Rated voltage 1500V DC 1000V CAT III 600V CAT IV.
Rated current 32 A
Operating temperature from -25 °C to +80 °C
Tightening torque of fixing nut 45 Ncm
Tightening torque of M4 nut: 100 Ncm

Product type: Safety surface-mount socket

Connector type: straight

Nominal current: 32 A

Nominal current - rounded value: 32 A

Connection: Socket
Screws

Factory colour: Yellow

Insulation type: Insulated

Manufacturer part #: 99023242

Type: DI SAB 9430 Au / GE

Dim: (Ø) 4 mm

Type: 4 mm safety program

Scoop-proof: Yes

Jack diameter: 4 mm

Thread type: M4 x 0.7 nuts

Content: 1 pc(s)

Insulation material: PA 6.6 UL94 - V2

Contact material: Gold plated

Dimensions: 12.2 mm

Nominal voltage: 1500 V DC
1000 V
600 V

(Ø): 4 mm

Temperature range: From -25 °C to +80 °C. °C

Max. resistance: 5 mΩ

Documents & Downloads

Datasheet

Datasheet 3385766 Schützinger DI SAB 9430 Au / GE Safety surface-mount socket straight Yellow 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3385766 Schützinger DI SAB 9430 Au / GE Safety surface-mount socket straight Yellow 1 pc(s)

Information

Information 3385766 Schützinger DI SAB 9430 Au / GE Safety surface-mount socket straight Yellow 1 pc(s)

Description

Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.

This text is machine translated.
