Name: Siemens 3RA2110-1GE15-1BB4 3RA21101GE151BB4 Feeder terminal Motor power at 400 V 2.2 kW 690 V Nominal current 4.9 A
Brand: Siemens
SKU: 1744637
Availability: BackOrder

Industrial scene: An open electrical cabinet revealing wiring and control units, positioned beside a rain-soaked machine behind glass.

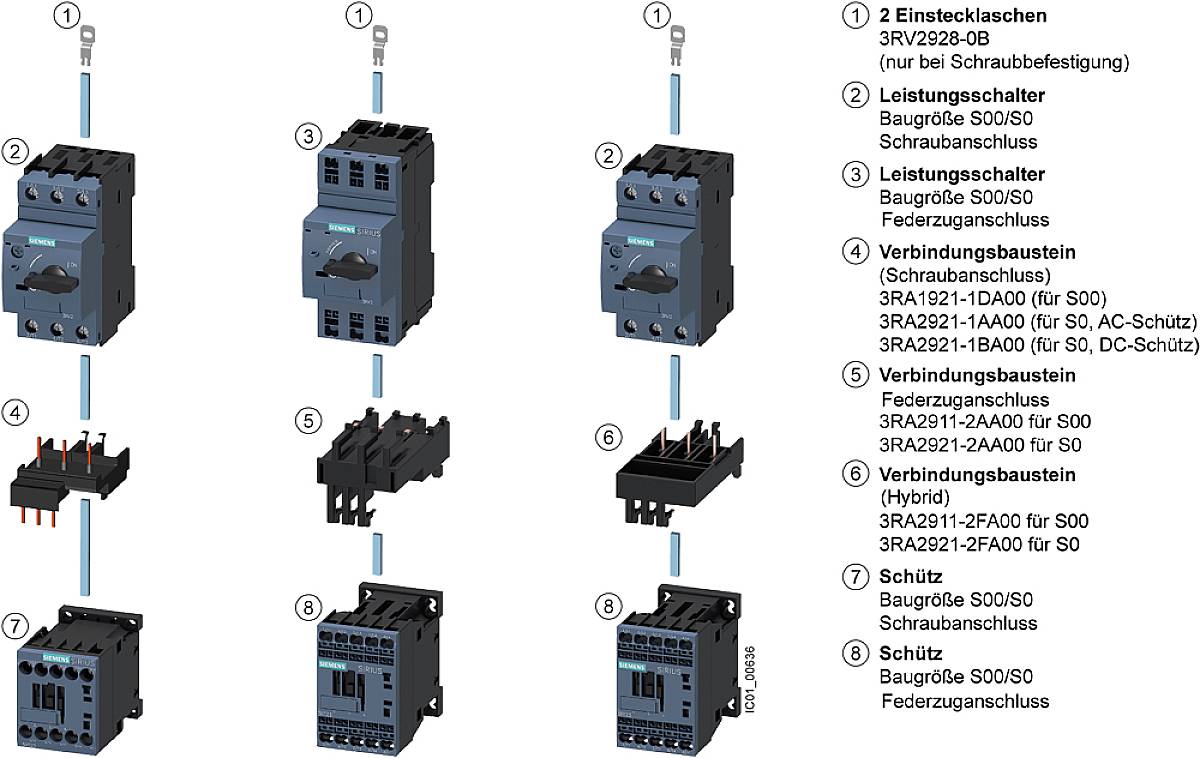

'Schematic representation of circuit breakers and contactors with connection modules. Parts are numbered and explained.'

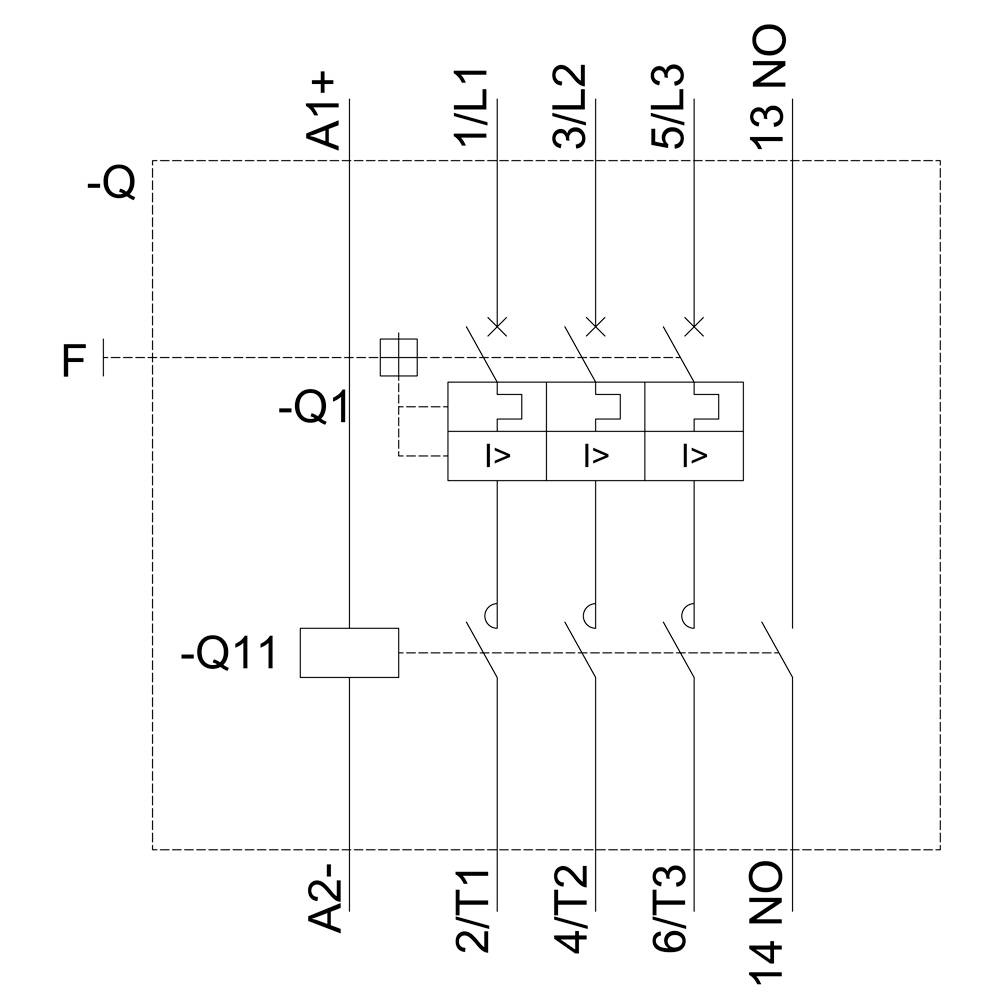

Circuit diagram of a three-phase power contactor with contact designations: A1+, A2-, 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13 NO, 14 NO.

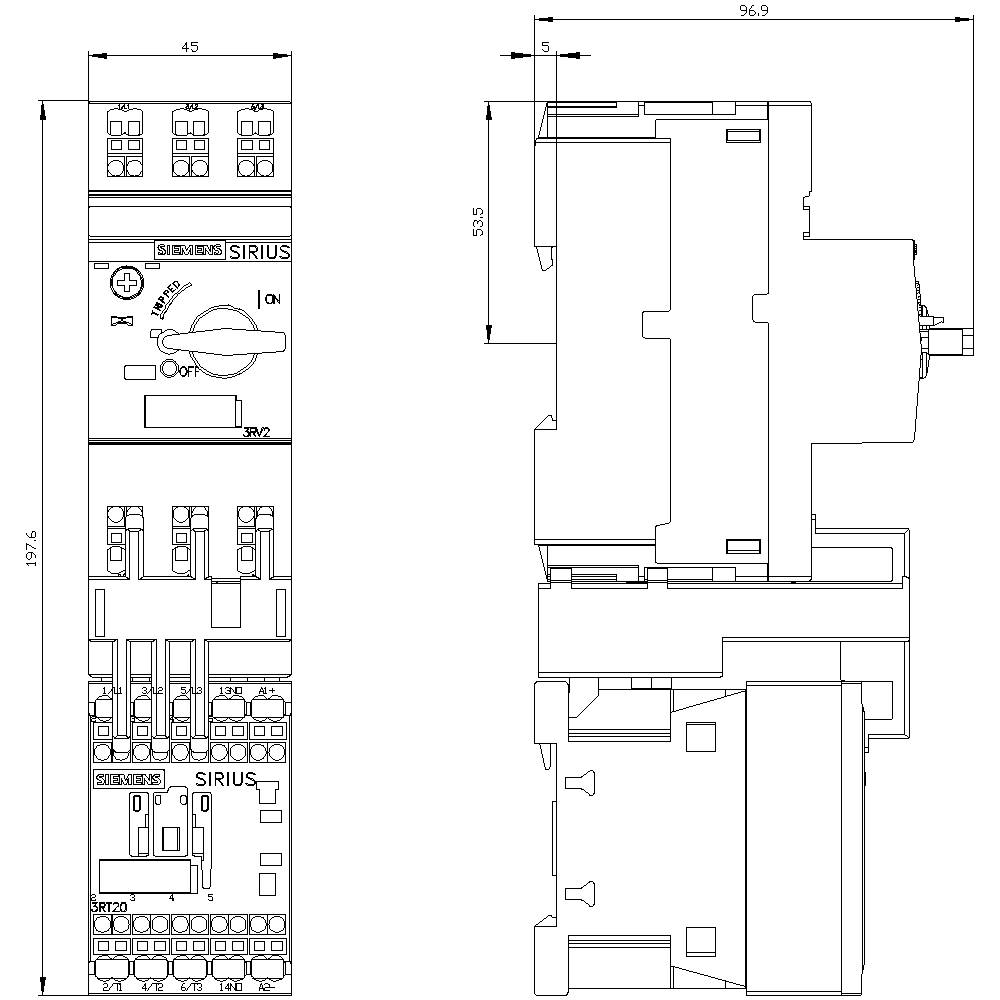

Technical drawing of an electronic device in cross-section and side view with technical dimensions, control button, and connection details.

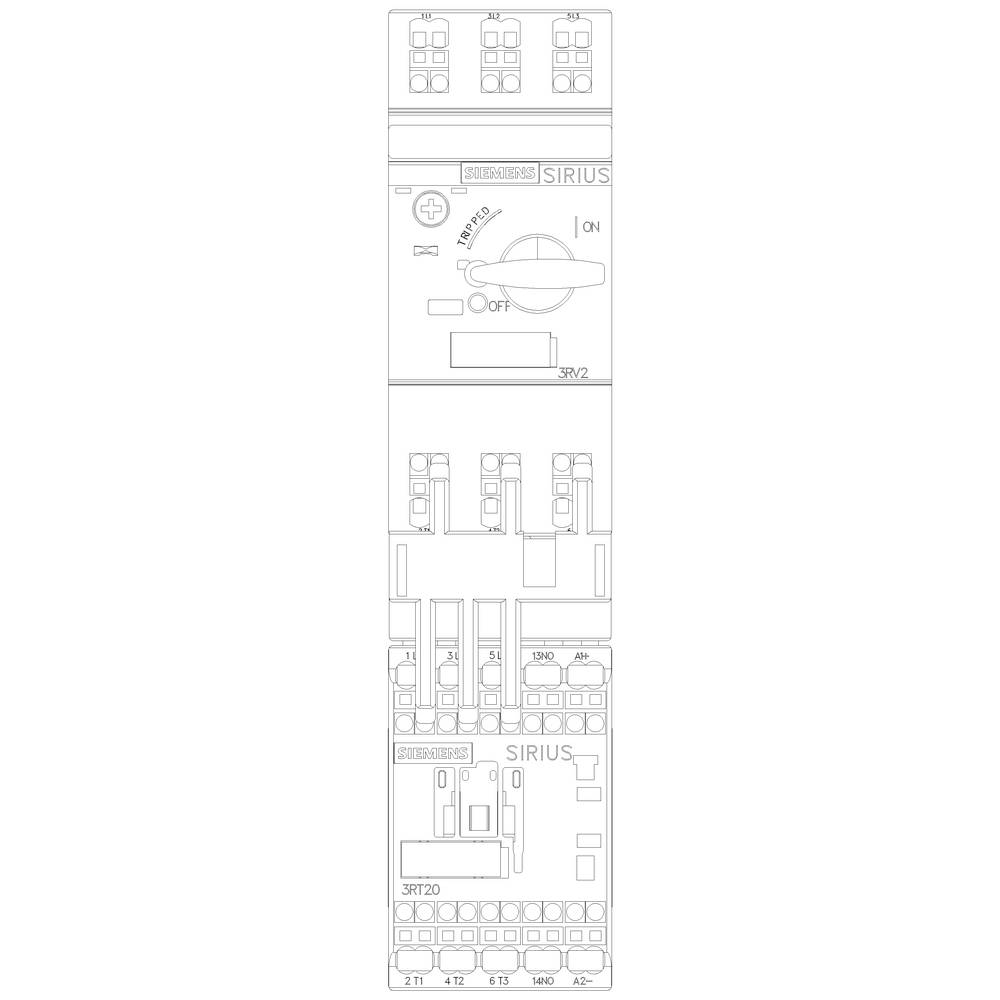

Diagram of a Siemens Sirius motor protection switch with switching and control functions, including a rotary switch with 'On' and 'Off' positions.

1/6

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 139.99 / piece)

€ 139.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the electrical connection: Spring-loaded connection
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 4.9 A

Motor power at 400 V: 2.2 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap-on mounting rail 35 mm

Manufacturer part #: 3RA21101GE151BB4

Nominal current: 4.9 A

Nominal current - rounded value: 4.9 A

Type: 3RA2110-1GE15-1BB4

Motor power at 230V / 400V: 2.2 kW

Dim: (W x H x D) 45 x 198 x 97 mm

Connection: Spring-loaded connector

Width: 45 mm

Height: 198 mm

Depth: 97 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 45

: 198 mm

: 97 mm

: FALSE

: 2.2 kW

: 1

: 6.3 A

: 0

: IP20

: CLASS 10

: TRUE

: FALSE

: Spring clamp connection

: Spring clamp connection

: DC

: Other

: 6.3 A

: 60 °C

: 65000

: 30000

: Other

: Class 1

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Motor power at 400 V

Motor power at 230V / 400V

Nominal current - rounded value

Siemens 3RA2110-1AA15-1BB4 3RA21101AA151BB4 Feeder terminal Motor power at 400 V 0.55 kW 690 V Nominal current 1.5 A

Item no:1704776

Dispatches on Thu 12 Nov

Conrad Electronic

0.55 kW

1.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

Siemens 3RA2110-1AD15-1BB4 3RA21101AD151BB4 Feeder terminal Motor power at 400 V 0.55 kW 690 V Nominal current 1.5 A

Item no:1699690

Dispatches on Thu 12 Nov

Conrad Electronic

0.55 kW

1.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 174.99^*

Siemens 3RA2110-1AE15-1BB4 3RA21101AE151BB4 Feeder terminal Motor power at 400 V 0.55 kW 690 V Nominal current 1.5 A

Item no:1744608

Dispatches on Thu 12 Nov

Conrad Electronic

0.55 kW

1.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

Siemens 3RA2110-1AH15-1BB4 3RA21101AH151BB4 Feeder terminal Motor power at 400 V 0.55 kW 690 V Nominal current 1.5 A

Item no:1699343

Dispatches on Thu 12 Nov

Conrad Electronic

0.55 kW

1.5 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Siemens 3RA2110-1BA15-1BB4 3RA21101BA151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1699344

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3RA2110-1BD15-1BB4 3RA21101BD151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1744611

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Siemens 3RA2110-1BE15-1BB4 3RA21101BE151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1744613

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3RA2110-1BH15-1BB4 3RA21101BH151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1744615

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 184.99^*

Siemens 3RA2110-1CA15-1BB4 3RA21101CA151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1699345

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 139.99^*

Siemens 3RA2110-1CD15-1BB4 3RA21101CD151BB4 Feeder terminal Motor power at 400 V 0.75 kW 690 V Nominal current 1.9 A

Item no:1748463

Dispatches on Thu 12 Nov

Conrad Electronic

0.75 kW

1.9 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Documents & Downloads

Datasheet

Datasheet 1744637 Siemens 3RA2110-1GE15-1BB4 3RA21101GE151BB4 Feeder terminal Motor power at 400 V 2.2 kW 690 V Nominal current 4.9 A

User & Safety Instructions

User & Safety Instructions 1744637 Siemens 3RA2110-1GE15-1BB4 3RA21101GE151BB4 Feeder terminal Motor power at 400 V 2.2 kW 690 V Nominal current 4.9 A

Description

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 7.00...10.0 A 230 V AC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NO (contactor)

Description

Load feeder fuseless, Direct-on-line starting 400 V AC, Size S00 7.00...10.0 A 230 V AC screw terminal for installation on standard mounting rail Type of coordination 1, Iq = 150 kA 1 NO (contactor)
