Name: Siemens 3RA2130-4EA35-0AP0 3RA21304EA350AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 29 A
Brand: Siemens
SKU: 1702888
Availability: BackOrder

A black electric switch with multiple terminals and a rotary knob for controlling electrical devices.

An open electrical cabinet with cables and electronic components beside a rain-soaked window reveals the connection between technology and environment.

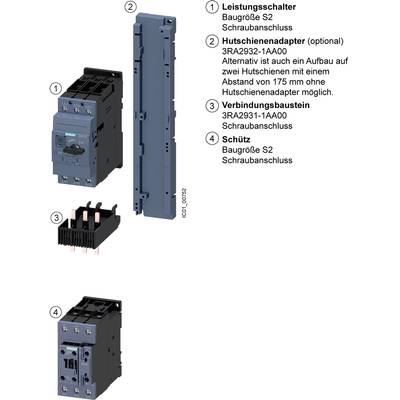

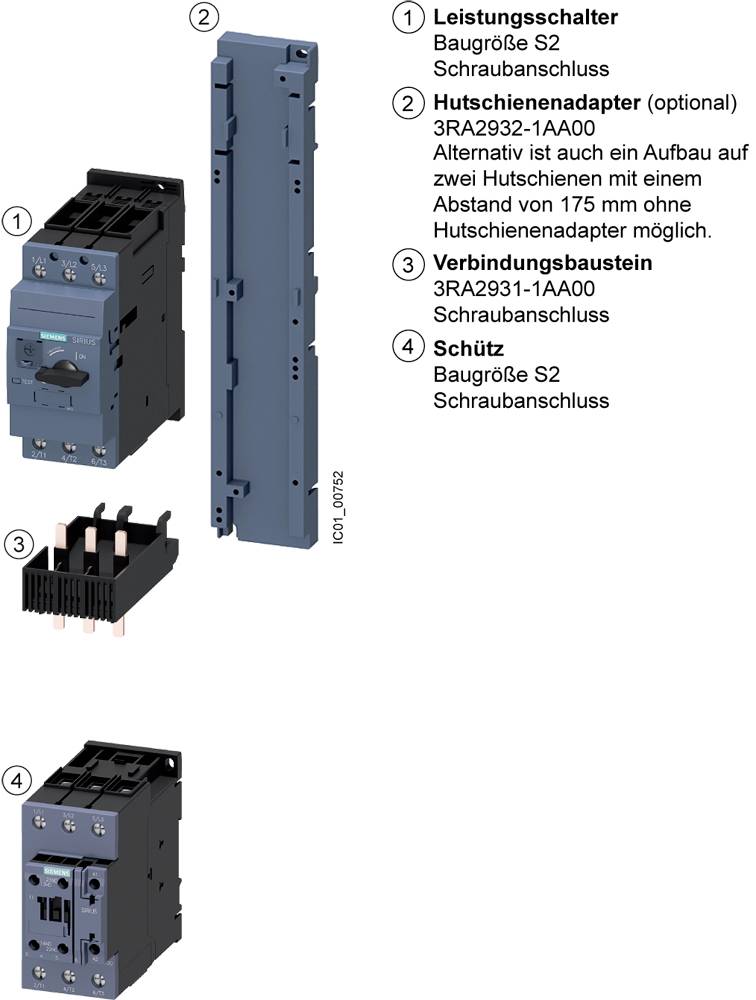

Electrical control cabinet with components: circuit breaker, DIN rail adapter, connection module, and contactor.

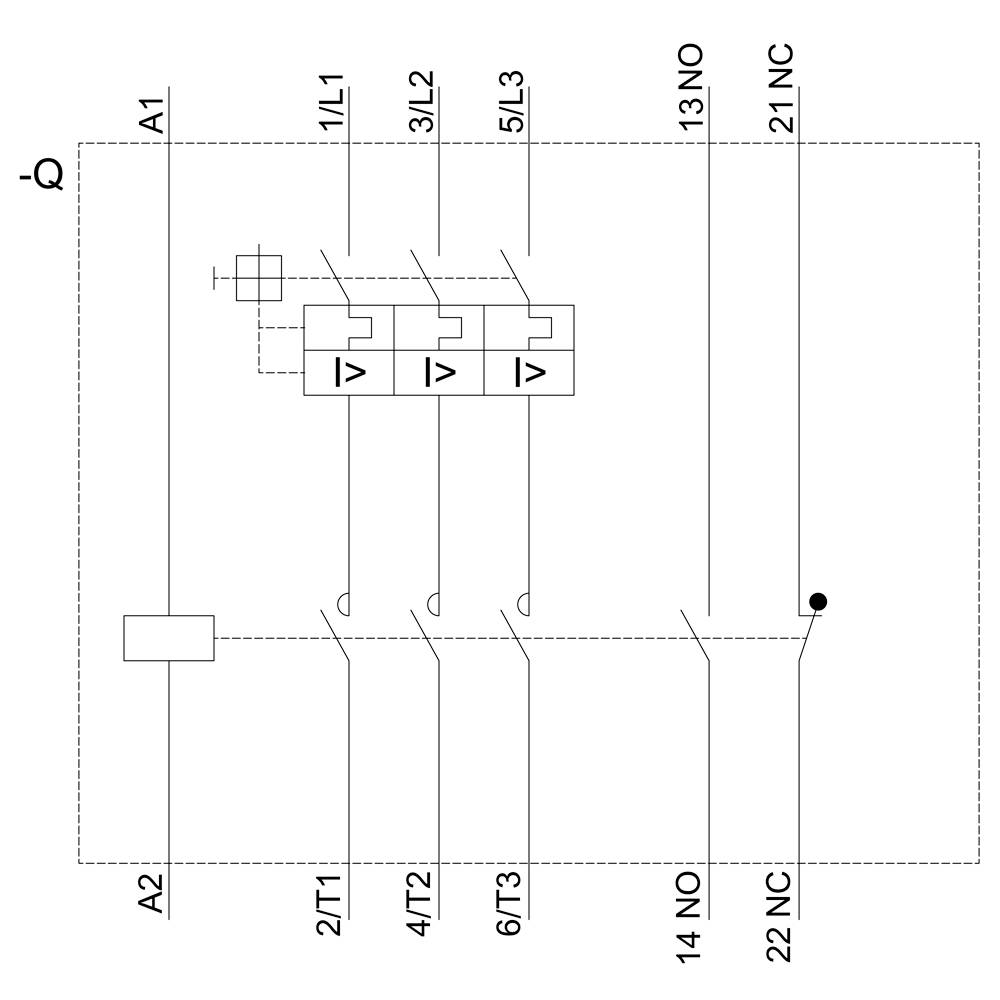

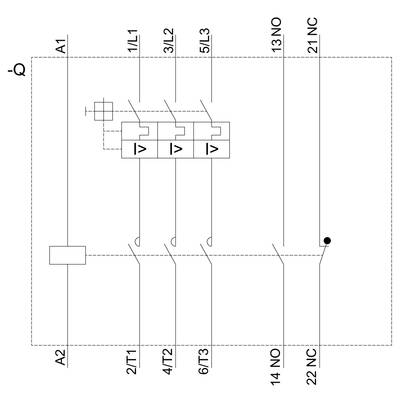

Wiring Diagram of a Three-Phase Motor: Shows switches, relays, and wiring for control and protection with connection details.

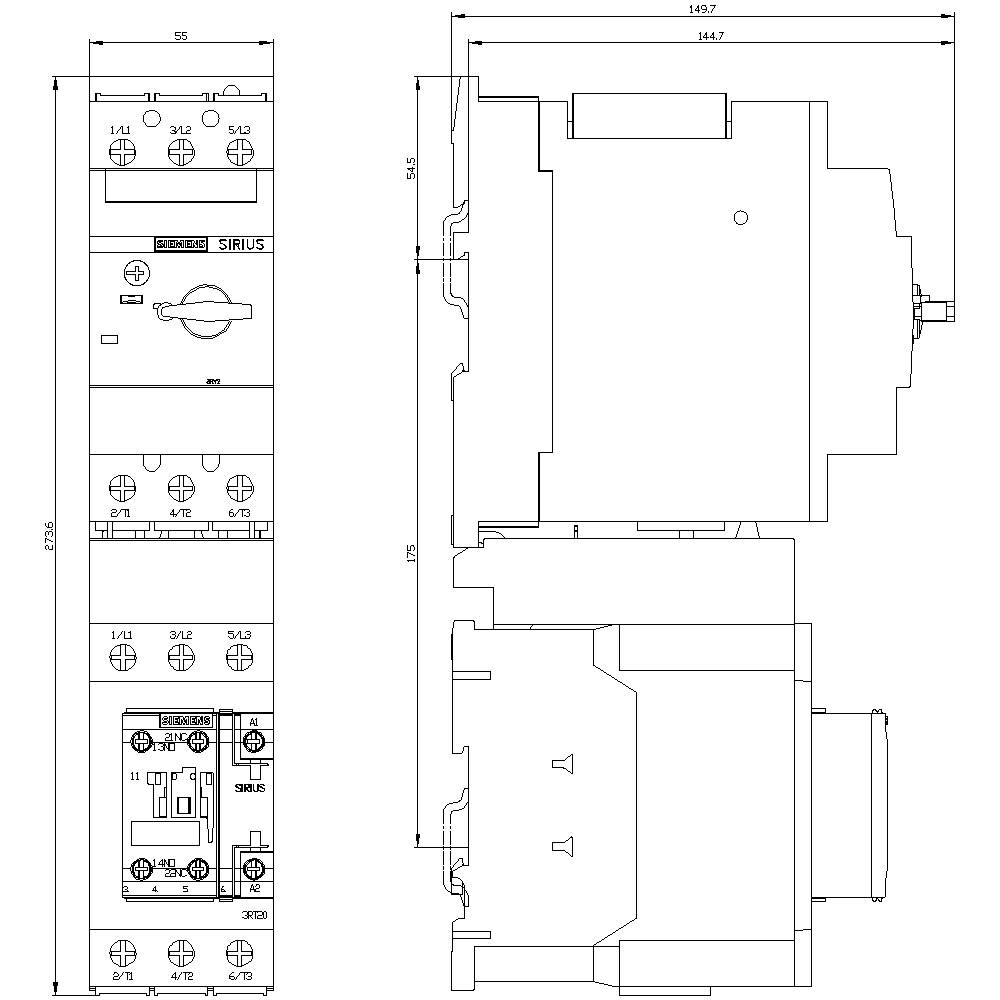

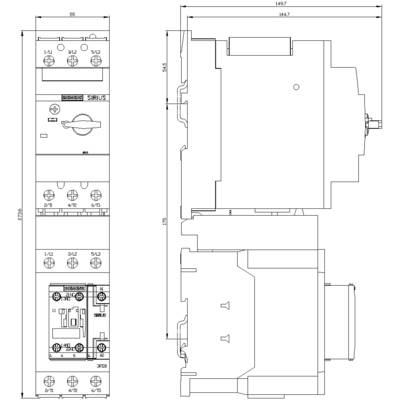

Technical drawing of an electromechanical component with detailed views and dimensions in millimetres.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 389.00 / piece)

€ 389.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S2
Operating frequency: 50/60 Hz

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 29 A

Motor power at 400 V: 15 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap-on 2 DIN rail 35 mm

Manufacturer part #: 3RA21304EA350AP0

Nominal current: 29 A

Nominal current - rounded value: 29 A

Type: 3RA2130-4EA35-0AP0

Motor power at 230V / 400V: 15 kW

Dim: (W x H x D) 55 x 274 x 150 mm

Connection: Screw terminal

Width: 55 mm

Height: 274 mm

Depth: 150 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 55

: 274 mm

: 150 mm

: FALSE

: 15 kW

: 1

: 32 A

: 0

: IP20

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: AC

: Other

: 32 A

: 60 °C

: 100000

: 100000

: 65000

: 25000

: Other

: Class 2

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Motor power at 400 V

Motor power at 230V / 400V

Nominal current - rounded value

Siemens 3RA2130-4EA35-0AP0 3RA21304EA350AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 29 A

Item no:1702888

Dispatches on Thu 12 Nov

Conrad Electronic

This article

15 kW

29 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 389.00^*

Siemens 3RA2120-4NA27-0AP0 3RA21204NA270AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 28 A

Item no:1742162

Dispatches on Thu 12 Nov

Conrad Electronic

15 kW

28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 399.00^*

Siemens 3RA2120-4ND27-0AP0 3RA21204ND270AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 28 A

Item no:1742164

Dispatches on Thu 12 Nov

Conrad Electronic

15 kW

28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 445.00^*

Siemens 3RA2120-4NE27-0AP0 3RA21204NE270AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 28 A

Item no:1742166

Dispatches on Thu 12 Nov

Conrad Electronic

15 kW

28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 405.00^*

Siemens 3RA2120-4NH27-0AP0 3RA21204NH270AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 28 A

Item no:1748484

Dispatches on Thu 12 Nov

Conrad Electronic

15 kW

28 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Siemens 3RA2130-4JA37-0AP0 3RA21304JA370AP0 Feeder terminal Motor power at 400 V 30 kW 690 V Nominal current 55 A

Item no:1702889

Dispatches on Thu 12 Nov

Conrad Electronic

30 kW

55 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 575.00^*

Siemens 3RA2130-4KA38-0AP0 3RA21304KA380AP0 Feeder terminal Motor power at 400 V 37 kW 690 V Nominal current 65 A

Item no:1742171

Dispatches on Thu 12 Nov

Conrad Electronic

37 kW

65 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 639.00^*

Siemens 3RA2130-4PA35-0AP0 3RA21304PA350AP0 Feeder terminal Motor power at 400 V 18.5 kW 690 V Nominal current 35 A

Item no:1742173

Dispatches on Thu 12 Nov

Conrad Electronic

18.5 kW

35 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 409.00^*

Siemens 3RA2130-4UA35-0AP0 3RA21304UA350AP0 Feeder terminal Motor power at 400 V 18.5 kW 690 V Nominal current 35 A

Item no:1742174

Dispatches on Thu 12 Nov

Conrad Electronic

18.5 kW

35 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Siemens 3RA2130-4VA36-0AP0 3RA21304VA360AP0 Feeder terminal Motor power at 400 V 22 kW 690 V Nominal current 41 A

Item no:1742175

Dispatches on Thu 12 Nov

Conrad Electronic

22 kW

41 A

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 495.00^*

Documents & Downloads

Datasheet

Datasheet 1702888 Siemens 3RA2130-4EA35-0AP0 3RA21304EA350AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 29 A

User & Safety Instructions

User & Safety Instructions 1702888 Siemens 3RA2130-4EA35-0AP0 3RA21304EA350AP0 Feeder terminal Motor power at 400 V 15 kW 690 V Nominal current 29 A

Description

Power contactor, AC-3 80 A, 37 kW / 400 V 1 NO + 1 NC, 230 V AC 50/60 Hz, 3-pole Size S2, screw terminals

Description

Power contactor, AC-3 80 A, 37 kW / 400 V 1 NO + 1 NC, 230 V AC 50/60 Hz, 3-pole Size S2, screw terminals
