Name: Siemens 3RA2150-4VA36-0NB3 3RA21504VA360NB3 Feeder terminal Motor power at 400 V 22 kW 690 V Nominal current 45 A
Brand: Siemens
SKU: 1742188
Availability: BackOrder

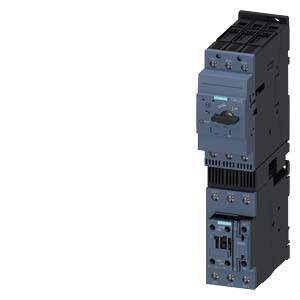

A black mechanical device with multiple modules and buttons, likely an electrical contactor or power switch.

An open electrical cabinet with numerous cables and switches positioned next to a window, through which an industrial machine in operation can be seen.

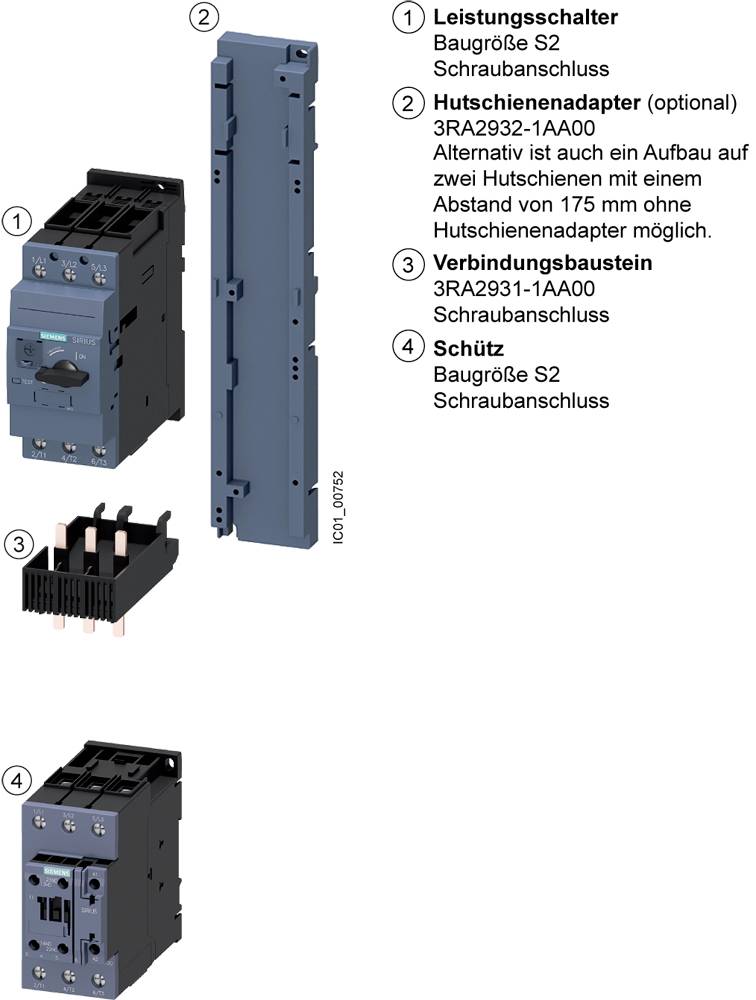

Electrical Component Set: 1. Circuit Breaker (Screw Terminal), 2. DIN Rail Adapter (optional), 3. Connecting Module, 4. Contactor (Screw Terminal).

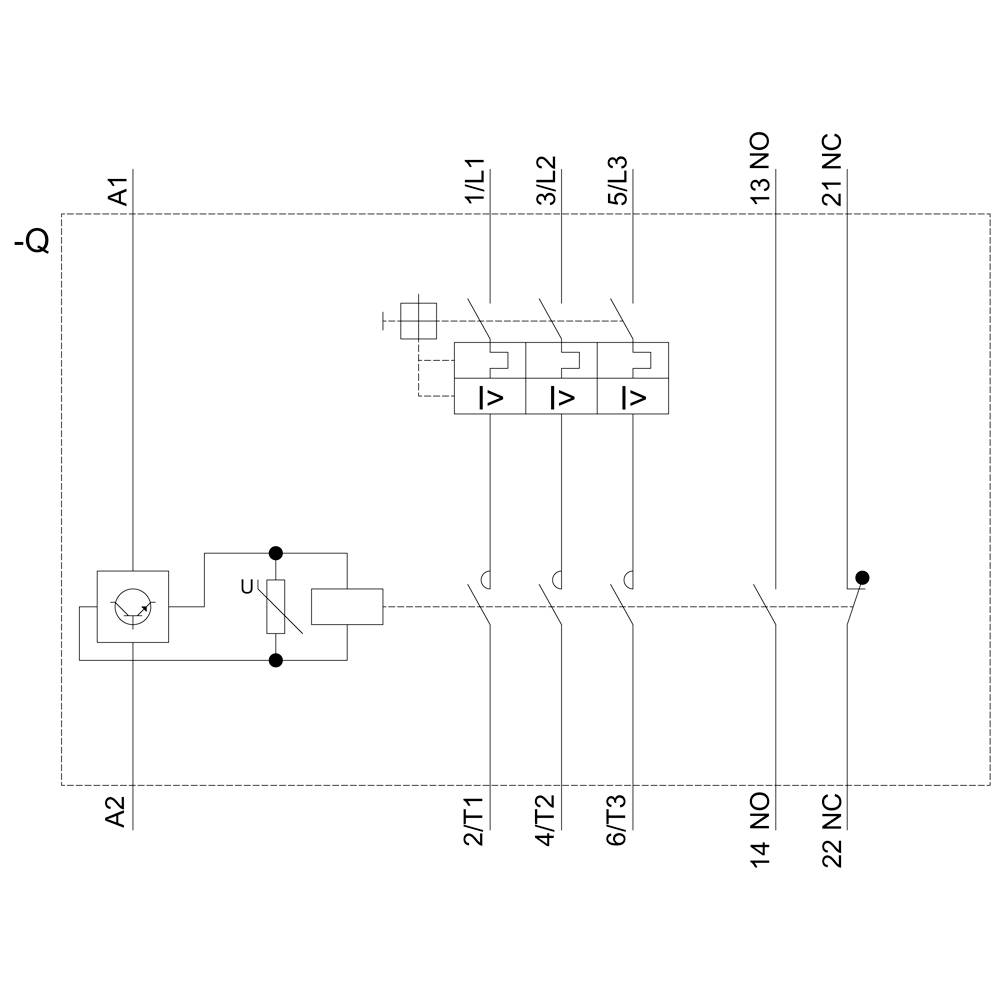

'Protective Circuit': An electrical circuit diagram shows the configuration of a protective circuit with contactors, coil, and connections.

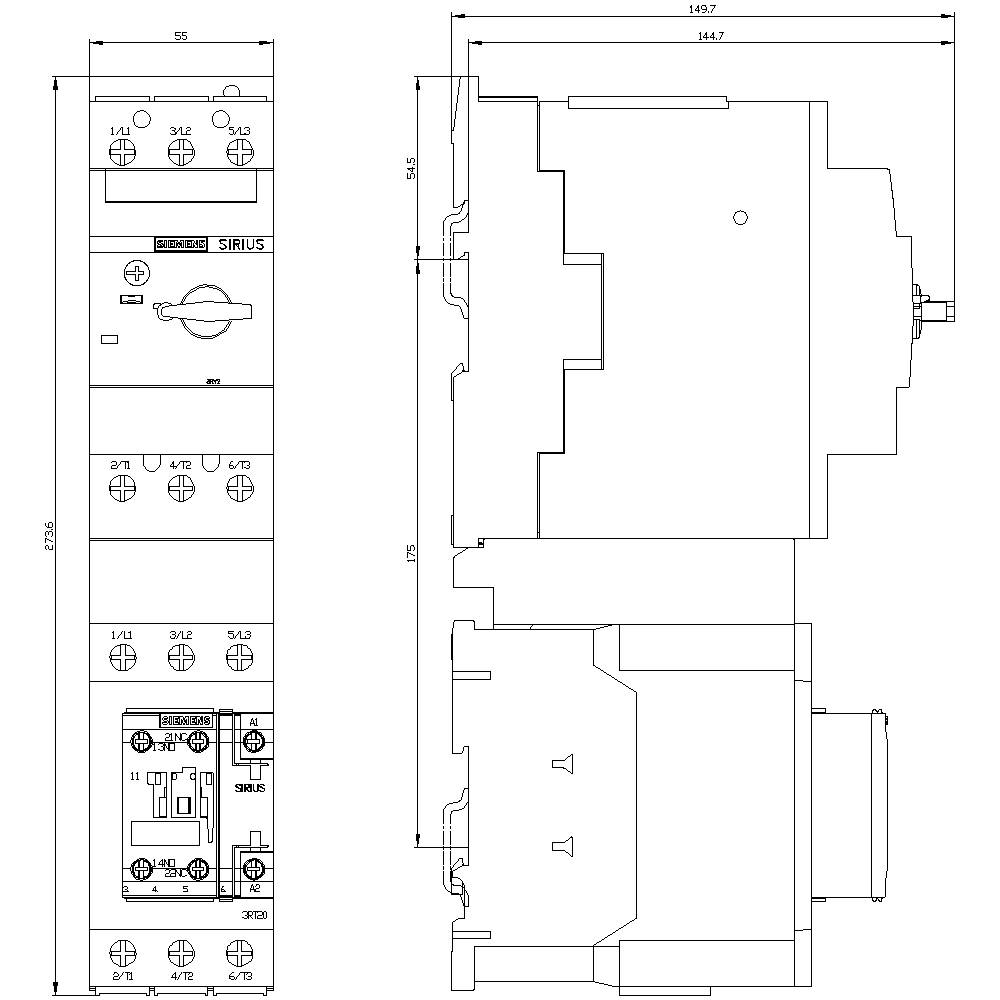

Technical drawing of an electrical switch with dimensions in millimetres. Shows top view and side view of the device.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 725.00 / piece)

€ 725.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S2
Operating frequency: 50/60 Hz

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 45 A

Motor power at 400 V: 22 kW

Nominal voltage: 690 V

Type: Mounting type: screw and snap-on 2 DIN rail 35 mm

Manufacturer part #: 3RA21504VA360NB3

Nominal current: 45 A

Nominal current - rounded value: 45 A

Type: 3RA2150-4VA36-0NB3

Motor power at 230V / 400V: 22 kW

Dim: (W x H x D) 55 x 274 x 150 mm

Width: 55 mm

Height: 274 mm

Depth: 150 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 55

: 274 mm

: 150 mm

: FALSE

: 22 kW

: 1

: 45 A

: 0

: IP20

: CLASS 10

: TRUE

: FALSE

: Screw connection

: Screw connection

: AC/DC

: Other

: 45 A

: 60 °C

: 150000

: 150000

: 100000

: 22000

: Other

: Class 2

UKCA: not relevant
