Name: Siemens 3RA2210-1FH15-2AP0 3RA22101FH152AP0 Feeder terminal Motor power at 400 V 1.5 kW 690 V Nominal current 3.6 A
Brand: Siemens
SKU: 1749055
Availability: BackOrder

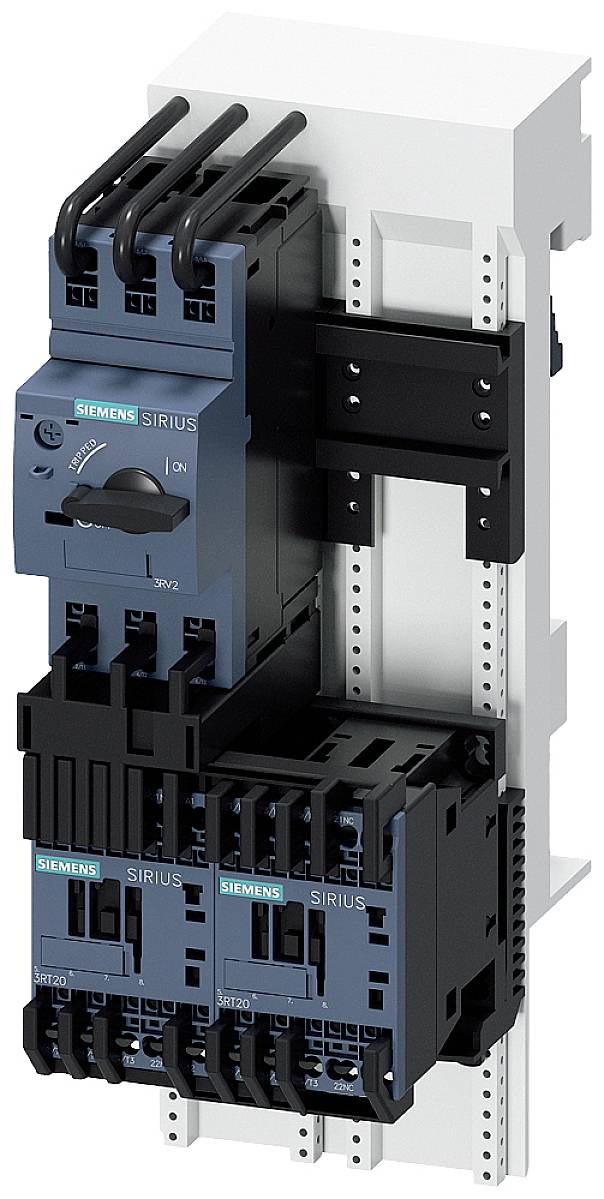

An electrical switchgear assembly with multiple switches and wiring, mounted on a DIN rail, partially marked with 'Siemens SIRIUS'.

An electrical control cabinet displays complex wiring and circuits. In the background, a device can be seen through a rain-spattered window.

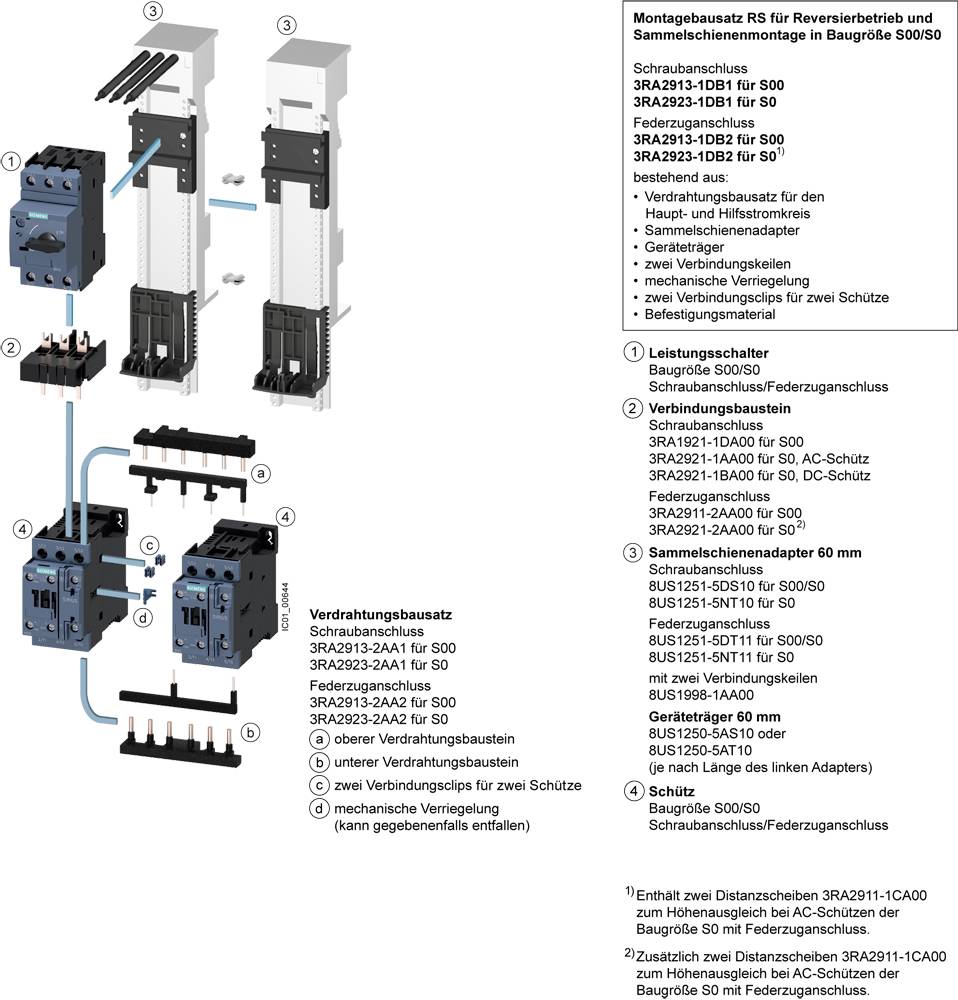

'Assembly kits for maintenance operations and busbar installation in size S00/S0' shows switching solutions and connections.

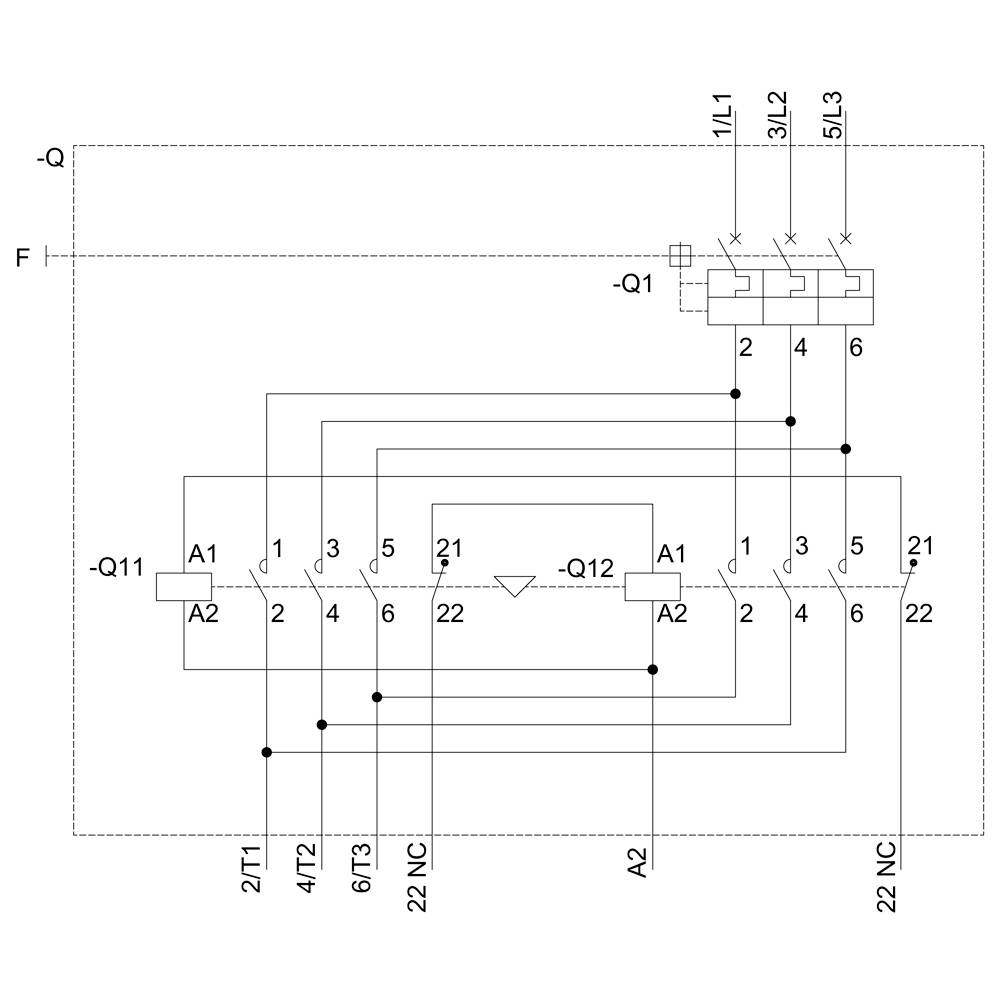

Circuit diagram of a relay with multiple connections: The main current circuit -Q runs through -Q1 to -Q11 with connection terminals 1/1L1 to 5/L3.

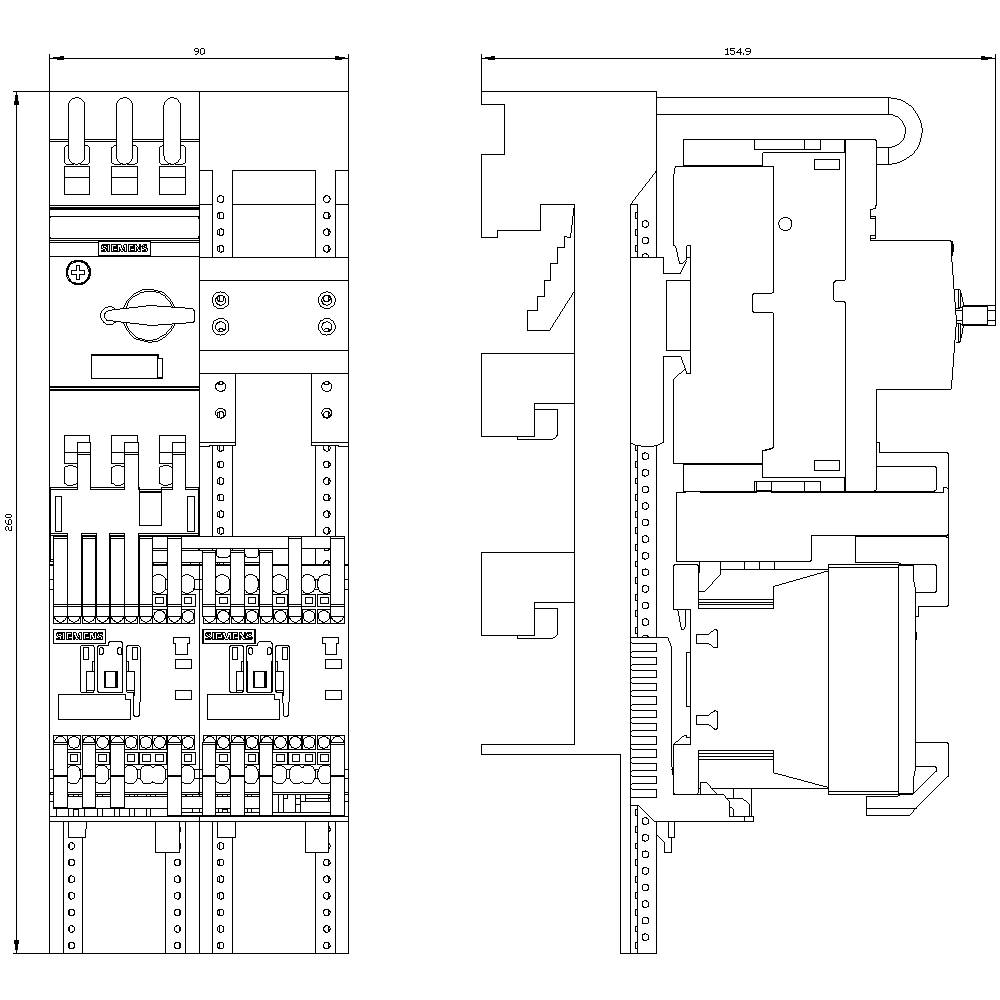

Technical drawing of an electrical switchboard assembly with fuses, switches, and control cabinets in front and side views. Dimensions are indicated.

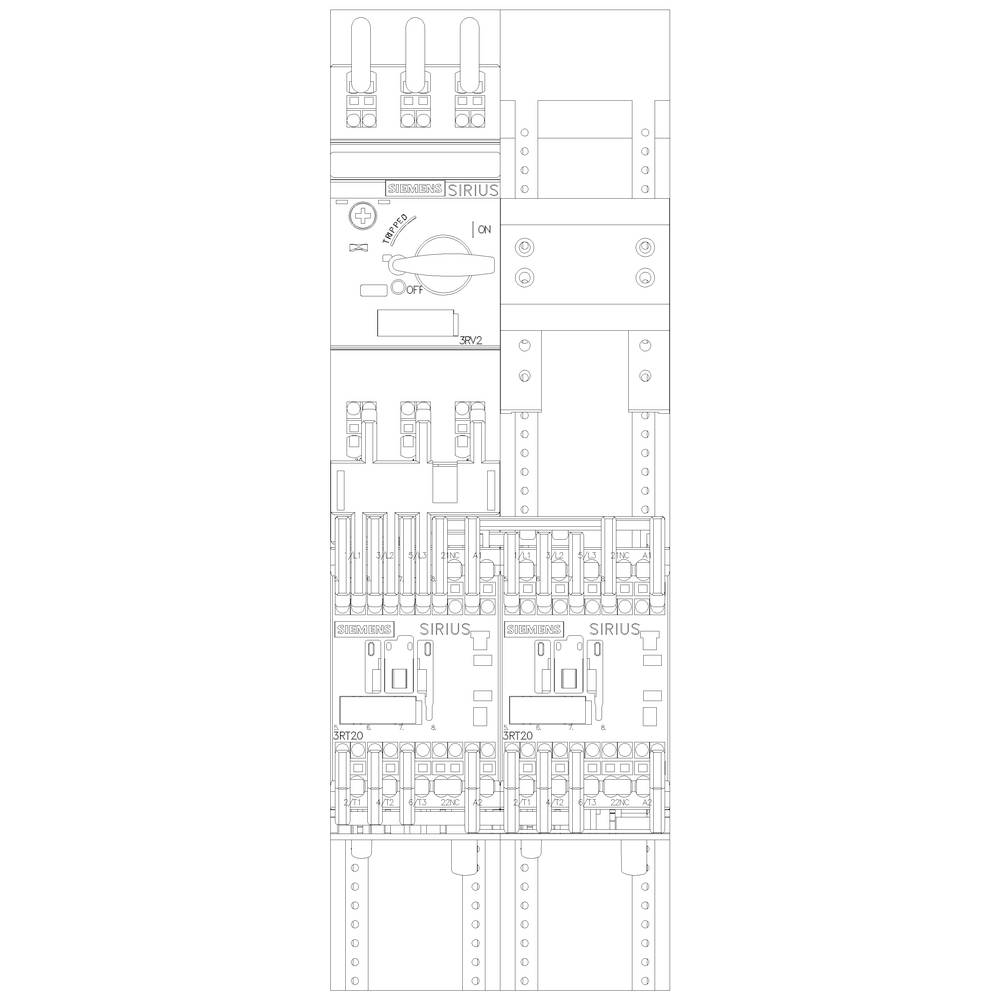

Technical drawing of an electrical switch and fuse system with multiple components and circuits.

1/6

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 355.00 / piece)

€ 355.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the electrical connection: Spring-loaded connection
Size of the load feeder: S00
Operating frequency: 50/60 Hz

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 3.6 A

Motor power at 400 V: 1.5 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22101FH152AP0

Nominal current: 3.6 A

Nominal current - rounded value: 3.6 A

Type: 3RA2210-1FH15-2AP0

Motor power at 230V / 400V: 1.5 kW

Dim: (W x H x D) 90 x 260 x 155 mm

Connection: Spring-loaded connector

Width: 90 mm

Height: 260 mm

Depth: 155 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 260 mm

: 155 mm

: FALSE

: 1.5 kW

: 1

: 5 A

: 0

: IP20

: CLASS 10

: TRUE

: FALSE

: Spring clamp connection

: Spring clamp connection

: AC

: Other

: 5 A

: 60 °C

: 65000

: 30000

: Other

: Class 1

UKCA: not relevant
