Name: Siemens 3RA2220-1JD24-0BB4 3RA22201JD240BB4 Feeder terminal Motor power at 400 V 0.4 kW 690 V Nominal current 8.5 A
Brand: Siemens
SKU: 1704752
Availability: BackOrder

A control cabinet with a circuit breaker and two contactors, mounted on a metal plate. Cables are connected to the circuit breaker.

Open electrical cabinet with electronic components on the left; a gleaming, rain-soaked window on the right. Machines blurred behind it.

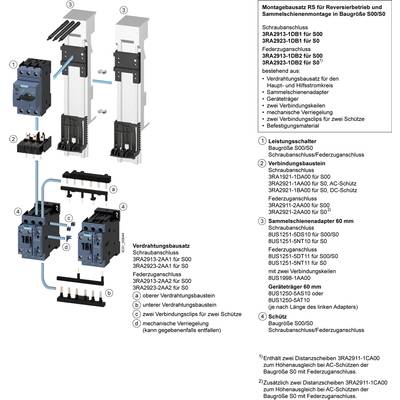

Assembly instructions for switchgear with screw terminals. Includes component list, diagrams, and sizing options for size S00/S0.

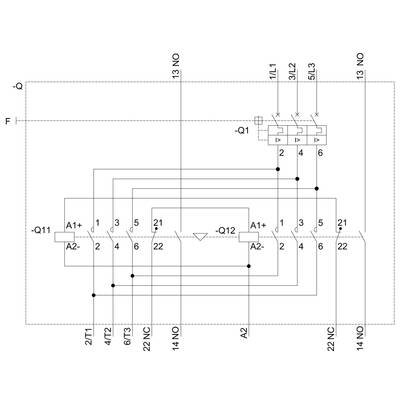

Circuit diagram of an electrical control system with switches, relays, and connections. Main components are -Q1, A1+, 1/1L1, and -Q12.

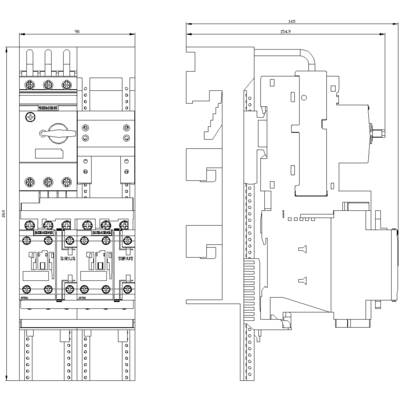

'Technical drawing of an electrical installation plan showing switch, circuit breakers and wiring, front and side view.'

Drawing of an electrical control cabinet with multiple switches and fuses. Labelled 'SIRIUS'. Shows electrical components and wiring.

1/6

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 415.00 / piece)

€ 415.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Design of the Electrical Connection: screw terminals.
Size of the load feeder: S0
Operating frequency: 50/60 Hz

Motor voltage: 400 V AC

Product type: Feeder terminal

Supply current: 8.5 A

Motor power at 400 V: 0.4 kW

Nominal voltage: 690 V

Type: Mounting type: For snapping onto 60 mm busbar system

Manufacturer part #: 3RA22201JD240BB4

Nominal current: 8.5 A

Nominal current - rounded value: 8.5 A

Type: 3RA2220-1JD24-0BB4

Motor power at 230V / 400V: 0.4 kW

Dim: (W x H x D) 90 x 260 x 165 mm

Connection: Screw terminal

Width: 90 mm

Height: 260 mm

Depth: 165 mm

Max. temperature: +60 °C

Min. temperature: -20 °C

: 90

: 260 mm

: 165 mm

: FALSE

: 4 kW
