Name: Siemens 3RK1308-0CC00-0CP0 3RK13080CC000CP0 Direct motor starter Motor power at 400 V 1.1 kW 500 V Nominal current 3 A
Brand: Siemens
SKU: 1702348
Availability: BackOrder

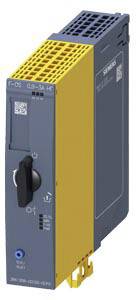

Electrical device in a rectangular shape with a yellow and grey casing. Switches and connections are visible.

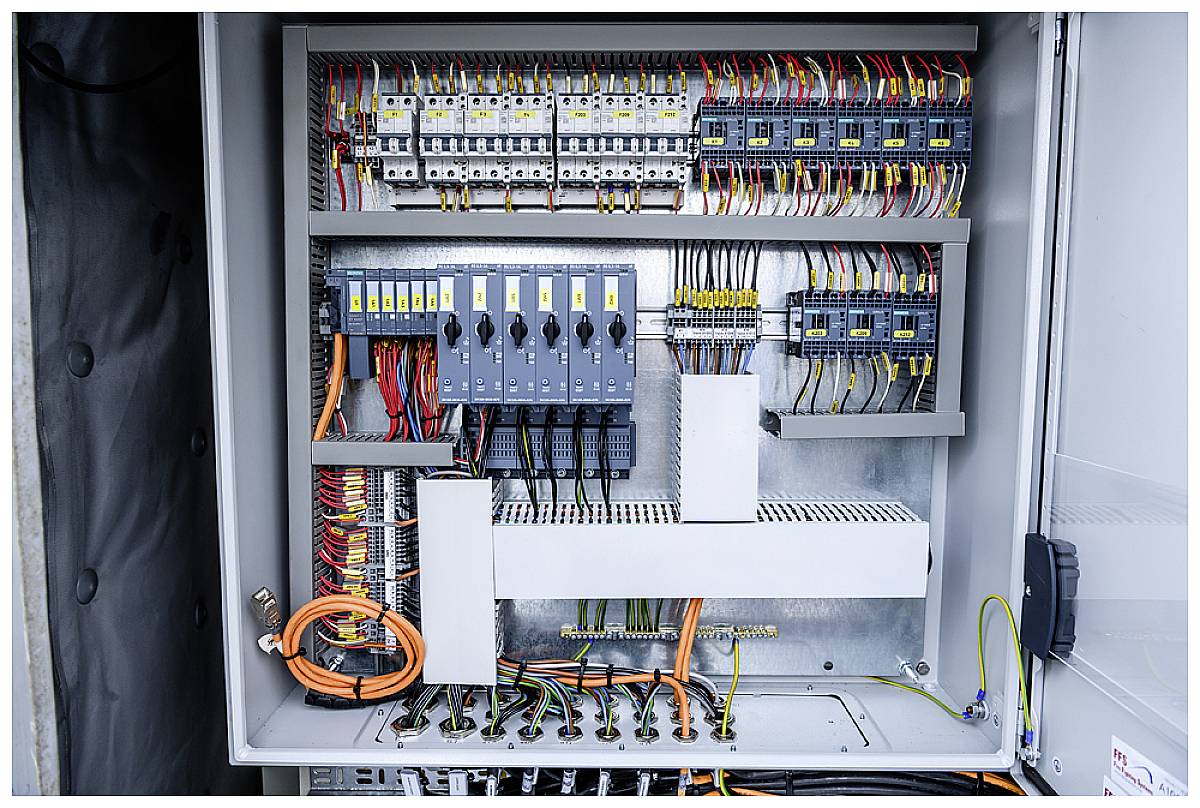

An open electrical cabinet displays cables and electronic components. Top row with fuses, below that control units, with orange cables on the left.

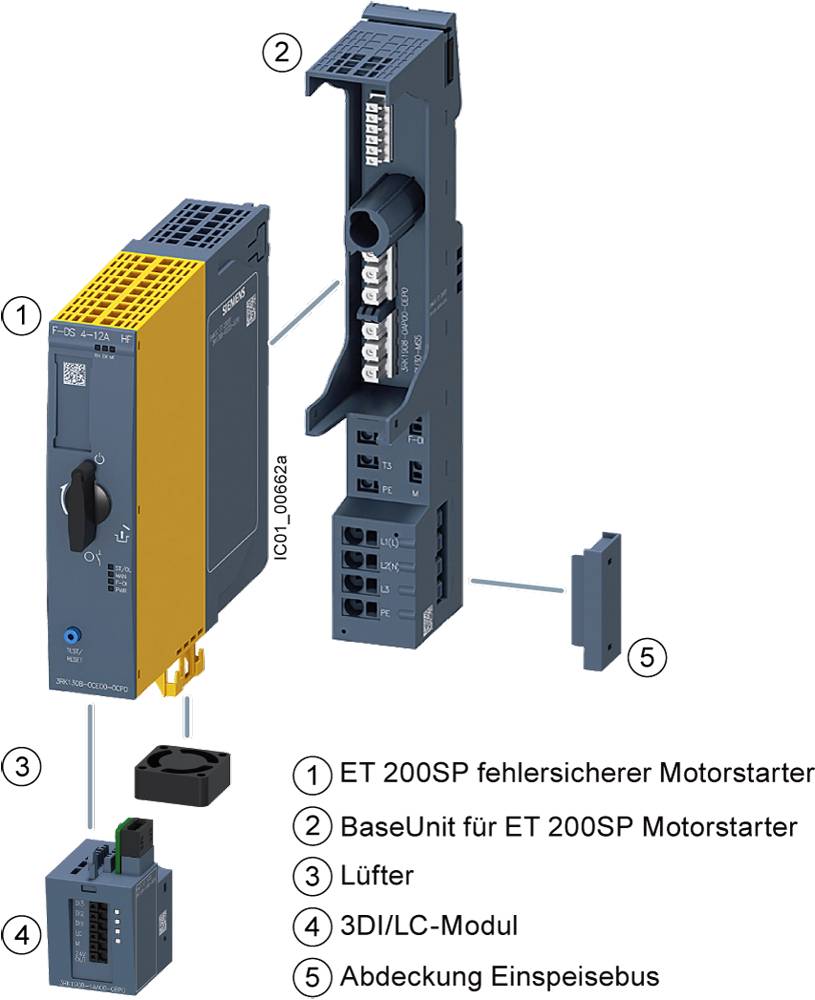

'ET 200SP failsafe motor starter' with BaseUnit, fan, 3DI/LC module and supply bus cover. Components are numbered.

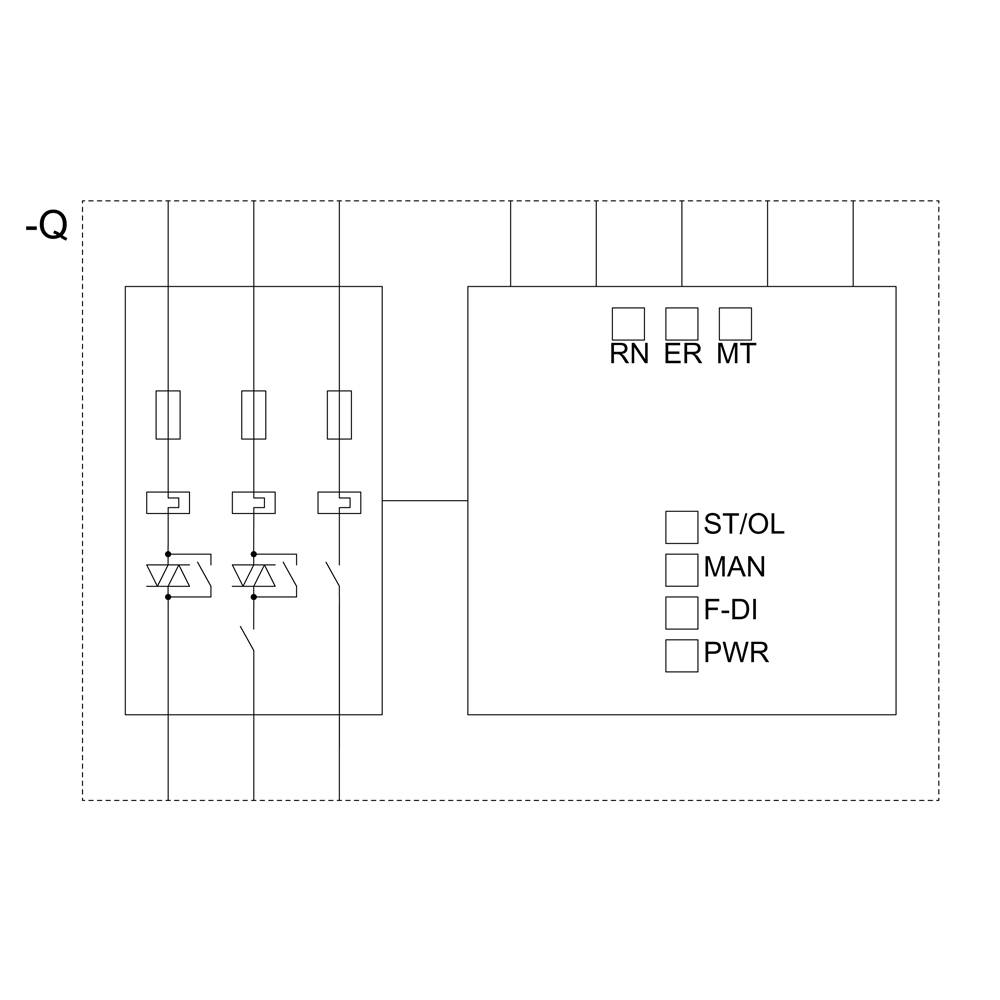

'Circuit diagram with two sections: on the left, three vertical switches and symbols; on the right, a rectangular area with five labels RN, ER, MT, ST/OL, MAN, F-DI, PWR.'

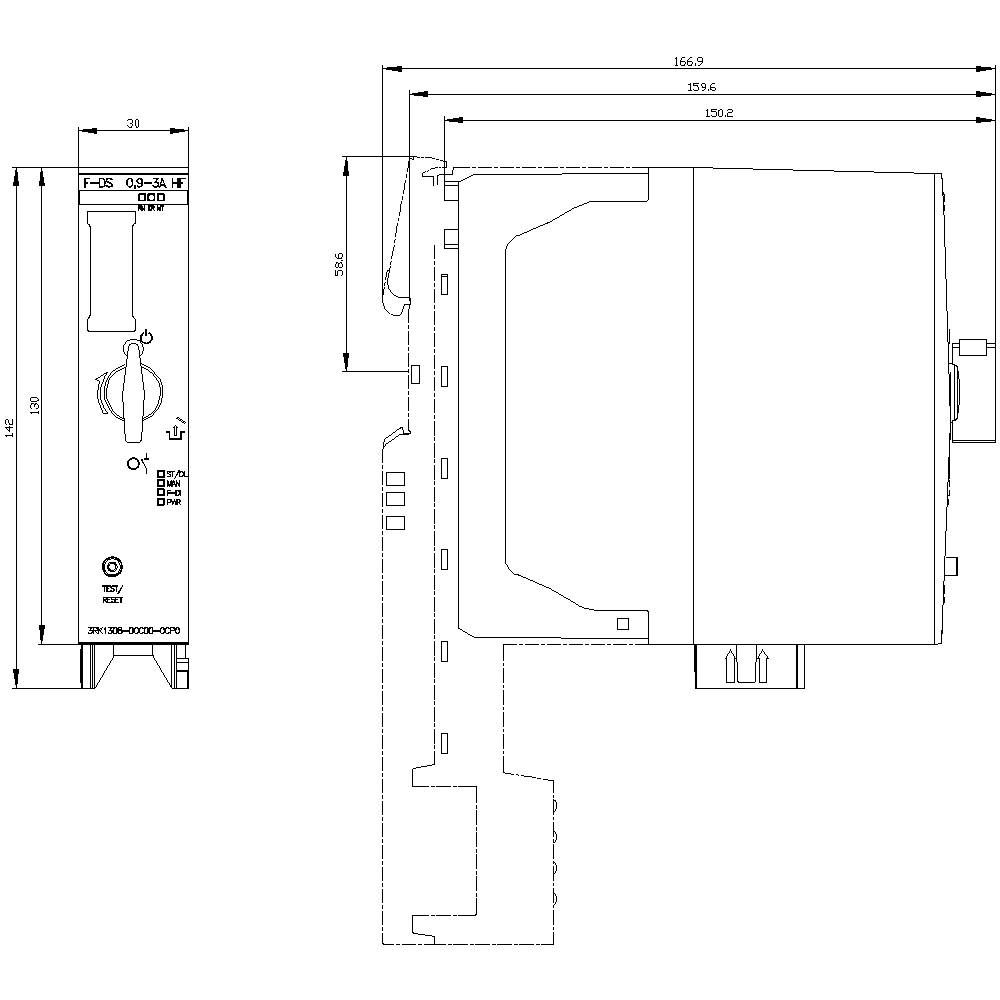

Technical drawing of an electrical switch with side and front view. Dimensions and placement of components are indicated.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 475.00 / piece)

€ 475.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Version of the motor protection: electronically
Operating frequency: 50/60 Hz
Number of pins: 3
Number of digital inputs: 5
Surge voltage resistance: 6 kV

Motor voltage: 400 V

Product type: Direct motor starter

Supply current: 3 A

Motor power at 400 V: 1.1 kW

Nominal voltage: 500 V

Operating phases: 3

Manufacturer part #: 3RK13080CC000CP0

Nominal current: 3 A

Nominal current - rounded value: 3 A

Type: 3RK1308-0CC00-0CP0

Motor power at 230V / 400V: 1.1 kW

Dim: (W x H x D) 30 x 142 x 150 mm

Connection: Jack connector

Width: 30 mm

Height: 142 mm

Depth: 150 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: 30

: 142 mm

: 150 mm

: FALSE

: 3 A

: 7

: FALSE

: TRUE

: IP20

: TRUE

: DC

: 1.2 kW

: Class 1

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1702348 Siemens 3RK1308-0CC00-0CP0 3RK13080CC000CP0 Direct motor starter Motor power at 400 V 1.1 kW 500 V Nominal current 3 A

User & Safety Instructions

User & Safety Instructions 1702348 Siemens 3RK1308-0CC00-0CP0 3RK13080CC000CP0 Direct motor starter Motor power at 400 V 1.1 kW 500 V Nominal current 3 A

Description

Load disconnector 3LD3, Iu 25 A Main switch 3-pole + N Rated operating capacity at AC-23 A at 400V 9.0kW Installation in distribution boards, Basic switch without Knob-operated mechanism with auxiliary switch 1OE + 1S The 3LD main and emergency off switch for safe disconnection of loads in a wide variety of environments. There are numerous possible applications for the 3LD3 disconnector units. After disconnects from the grid, they ensure safe activation of all of the electrical equipment, thus switch, for example, to three-phase motors, but also air-conditioning and ventilation systems. 3LD3 are also ideal for control panels, in particular for applications in small machines (for example saws, compressors, pumps, concrete mixers, drills, mills, and woodworking machinery) Key features of the Siemens 3LD main and emergency off switches: 1. Modular design, fast and easy mounting of auxiliary switches, N-PE terminal, or 4-pole 2. Versatile thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Types of mounting: Front mounting, mounting plate, standard mounting rail. 6. Optimized disconnect from 16 A to 63 A with lockable rotary operating mechanism. www.siemens.com/switching-devices. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
