Siemens 3RK1308-0CD00-0CP0 3RK13080CD000CP0 Motor starter Motor power at 400 V 4 kW 500 V Nominal current 9 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 495.00 / piece)
€ 495.00
incl. VAT
14-day return policy included
Technical specifications
- Version of the motor protection: electronically
- Operating frequency: 50/60 Hz
- Number of pins: 3
- Number of digital inputs: 5
- Surge voltage resistance: 6 kV
- Motor voltage
400 V
- Product type
Motor starter
- Supply current
9 A
- Motor power at 400 V
4 kW
- Nominal voltage
500 V
- Operating phases
3
- Manufacturer part #
3RK13080CD000CP0
- Nominal current
9 A
- Nominal current - rounded value
9 A
- Type
3RK1308-0CD00-0CP0
- Motor power at 230V / 400V
4 kW

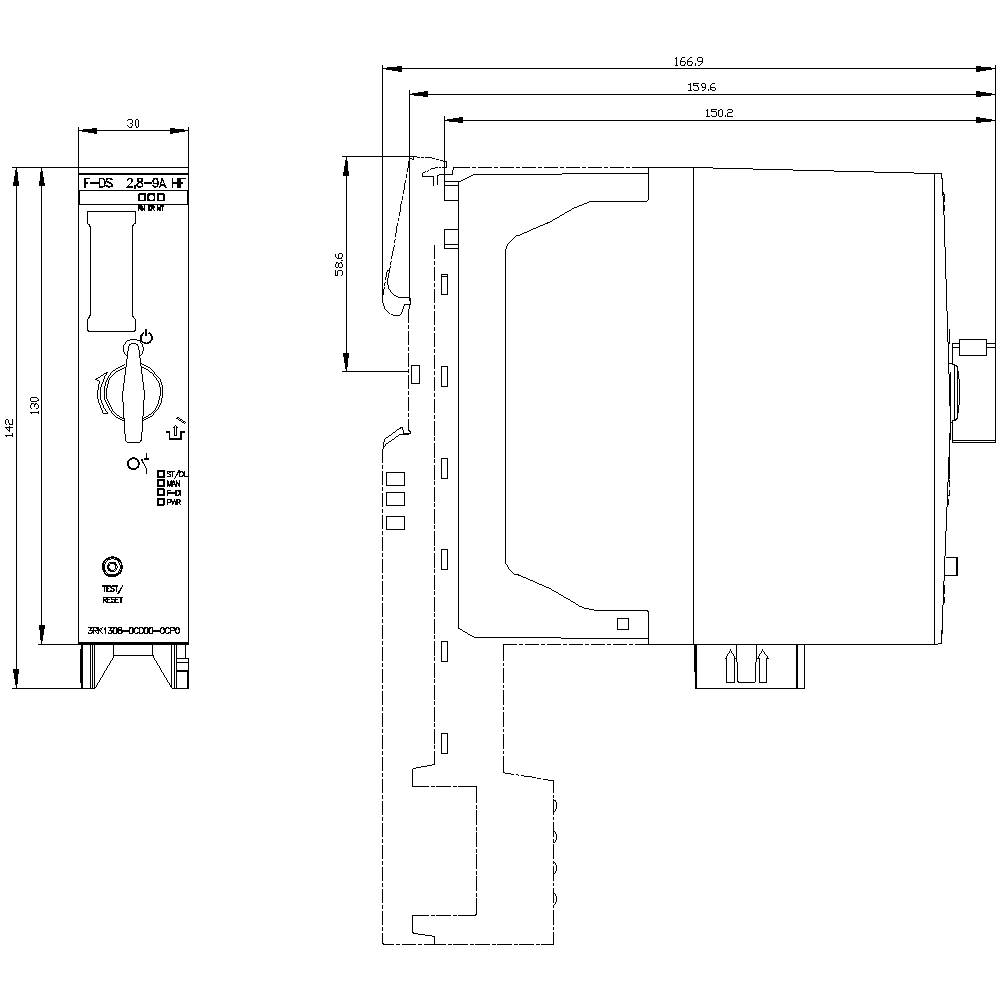

- Dim
(W x H x D) 30 x 142 x 150 mm
- Connection
Push-fit
- Width
30 mm
- Height
142 mm
- Depth
150 mm
- Max. temperature
+60 °C
- Min. temperature
-25 °C
30
142 mm
150 mm
FALSE
9 A
7
FALSE
TRUE
IP20
TRUE
DC
3.59 kW
Class 1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1735686 Siemens 3RK1308-0CD00-0CP0 3RK13080CD000CP0 Motor starter Motor power at 400 V 4 kW 500 V Nominal current 9 A
User & Safety Instructions
User & Safety Instructions 1735686 Siemens 3RK1308-0CD00-0CP0 3RK13080CD000CP0 Motor starter Motor power at 400 V 4 kW 500 V Nominal current 9 A
Description
Power contactor, AC-3 400 A, 200 kW / 400 V Coil AC 50/60 Hz and DC 96-127 V x (0.8-1.1) F-PLC input 24 V DC 3-pole size S12 Auxiliary contacts 2 NO + 2 NC cannot be dissolved (SUVA) Main circuit: Busbar Control and auxiliary circuit: screw terminal
