Buy Siemens 3RK1308-0DD00-0CP0 3RK13080DD000CP0 Reversing starter Motor power at 400 V 4 kW 500 V Nominal current 9 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

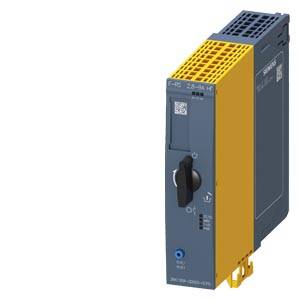

Industrial control unit, rectangular, vertically positioned. It has a grey front panel with black and yellow elements.

Industrial control unit, rectangular, vertically positioned. It has a grey front panel with black and yellow elements.

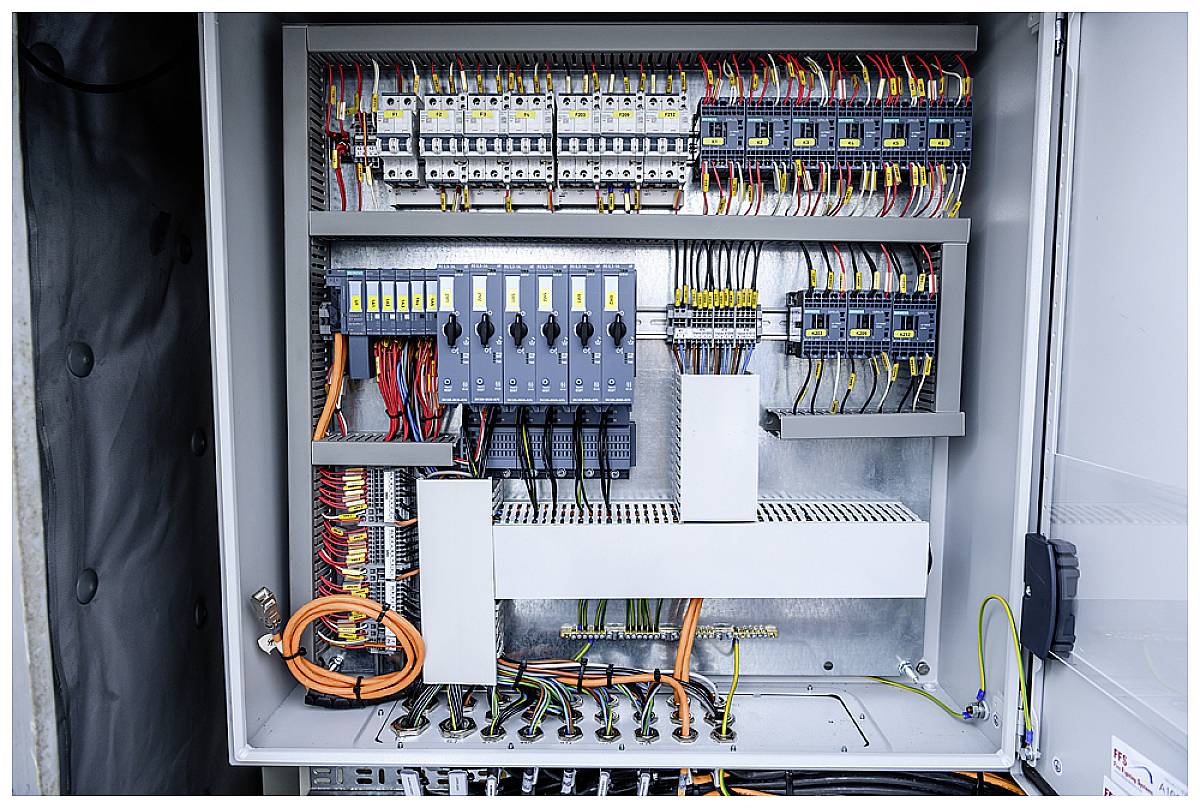

An open electrical cabinet with numerous coloured wires and electrical components. The cabinet displays complex wiring.

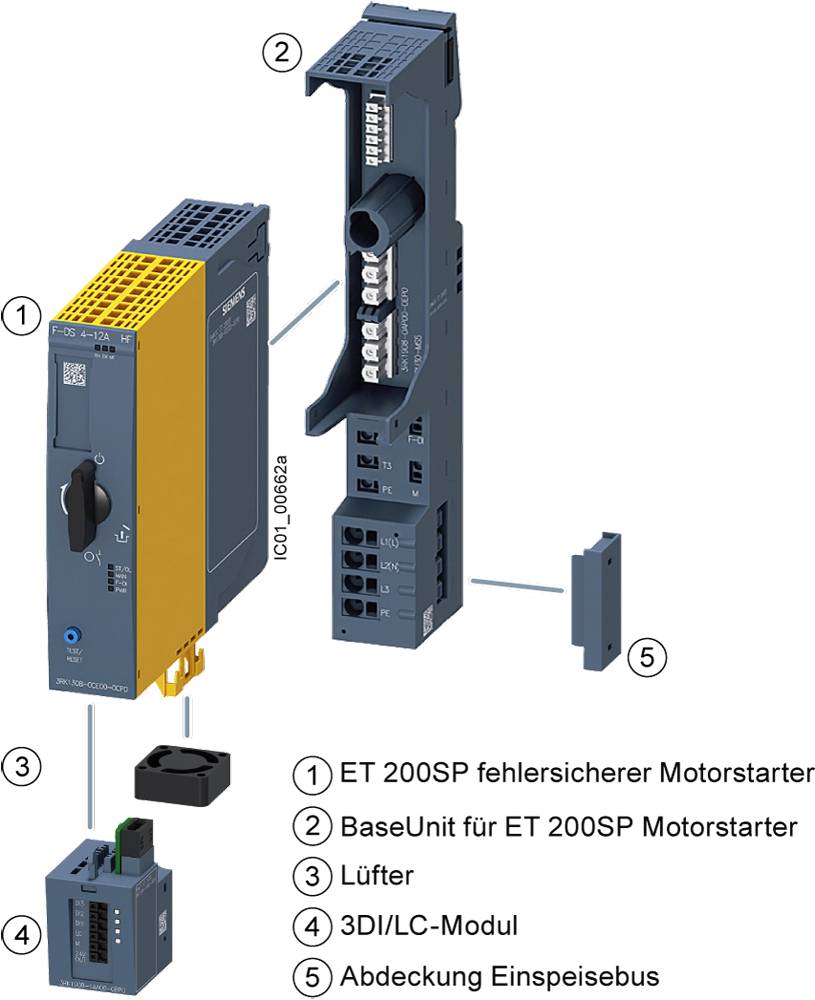

'ET 200SP Motor Starter Set with fail-safe motor starter, BaseUnit, fan, 3DI/LC module and supply bus cover.'

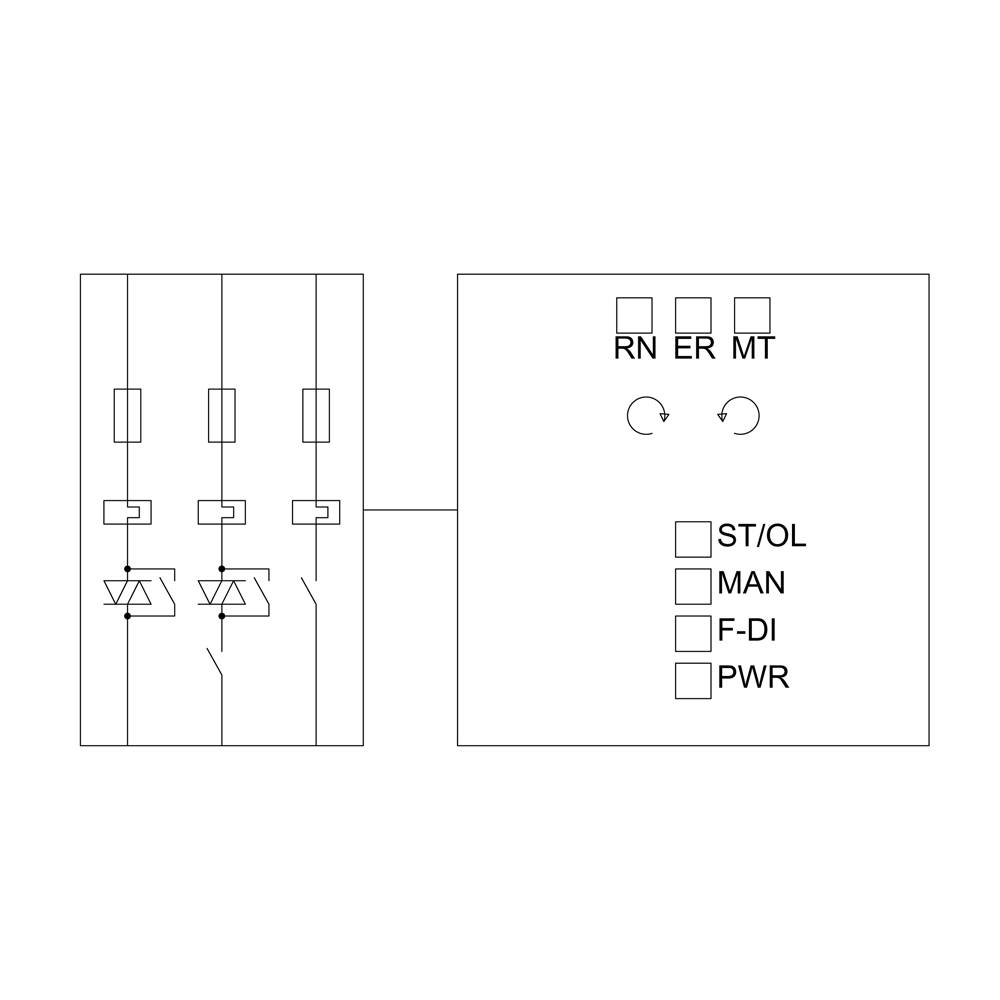

Diagram of an electrical circuit with three switches on the left connected to a control box on the right. The box displays RN, ER, MT lights and buttons: ST/OL, MAN, PWR.

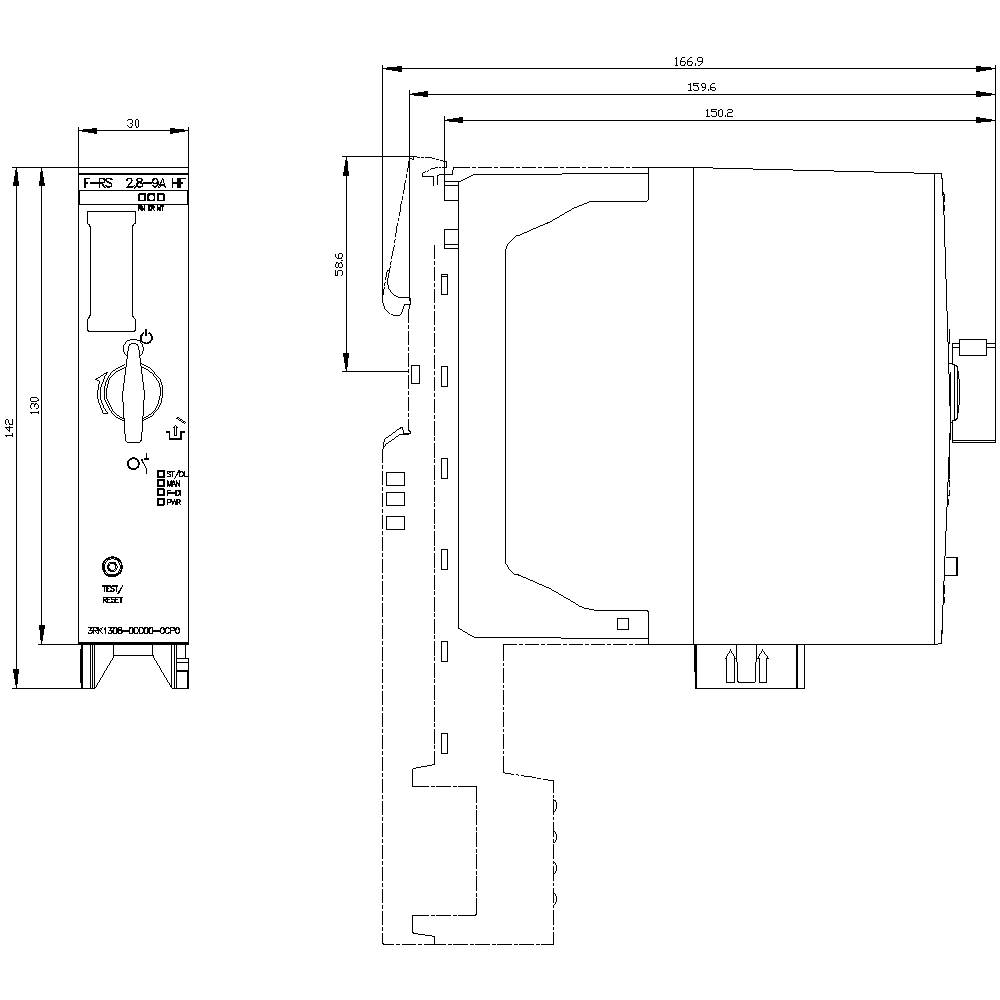

Technical drawing of a switching device: Shows side view with detailed dimensions and switch positions.

1/5

Image similar

Siemens

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 629.00 / piece)

€ 629.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Version of the motor protection: electronically
Operating frequency: 50/60 Hz
Number of pins: 3
Number of digital inputs: 5
Surge voltage resistance: 6 kV

Motor voltage: 500 V

Product type: Reversing starter

Supply current: 9 A

Motor power at 400 V: 4 kW

Nominal voltage: 500 V

Operating phases: 3

Manufacturer part #: 3RK13080DD000CP0

Nominal current: 9 A

Nominal current - rounded value: 9 A

Type: 3RK1308-0DD00-0CP0

Motor power at 230V / 400V: 4 kW

Dim: (W x H x D) 30 x 142 x 150 mm

Connection: Push-fit

Width: 30 mm

Height: 142 mm

Depth: 150 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: 30

: 142 mm

: 150 mm

: FALSE

: 9 A

: 7

: FALSE

: TRUE

: IP20

: TRUE

: DC

: 3.59 kW

: Class 1

UKCA: yes
