Name: Siemens 3RT1275-6AV36 Vacuum contactor 3 makers 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 p
Brand: Siemens
SKU: 1747200
Availability: BackOrder

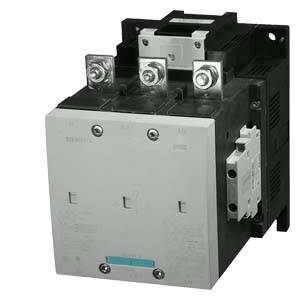

A grey electrical contactor with a black enclosure and metallic terminals, suitable for use in electrical switchgear.

An open electrical cabinet reveals electronic components beside a rain-soaked window, through which industrial machinery can be glimpsed indistinctly.

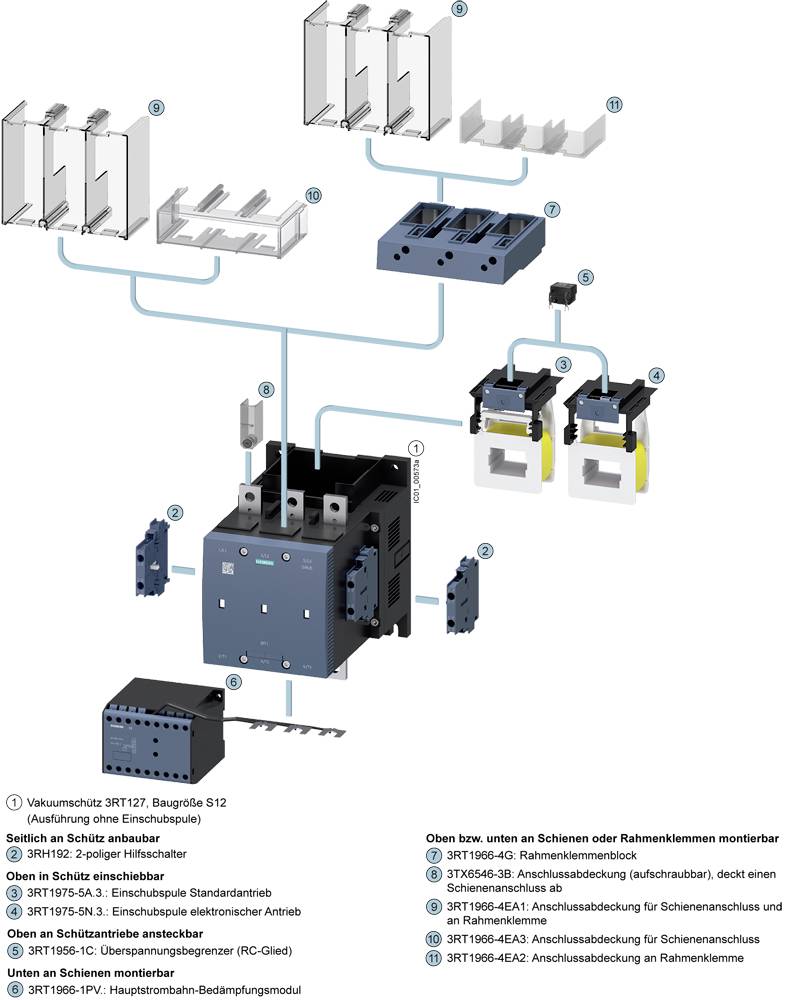

Exploded diagram of a switchgear with components including vacuum contactor, busbars, terminals, and connection cables. Step-by-step assembly instructions.

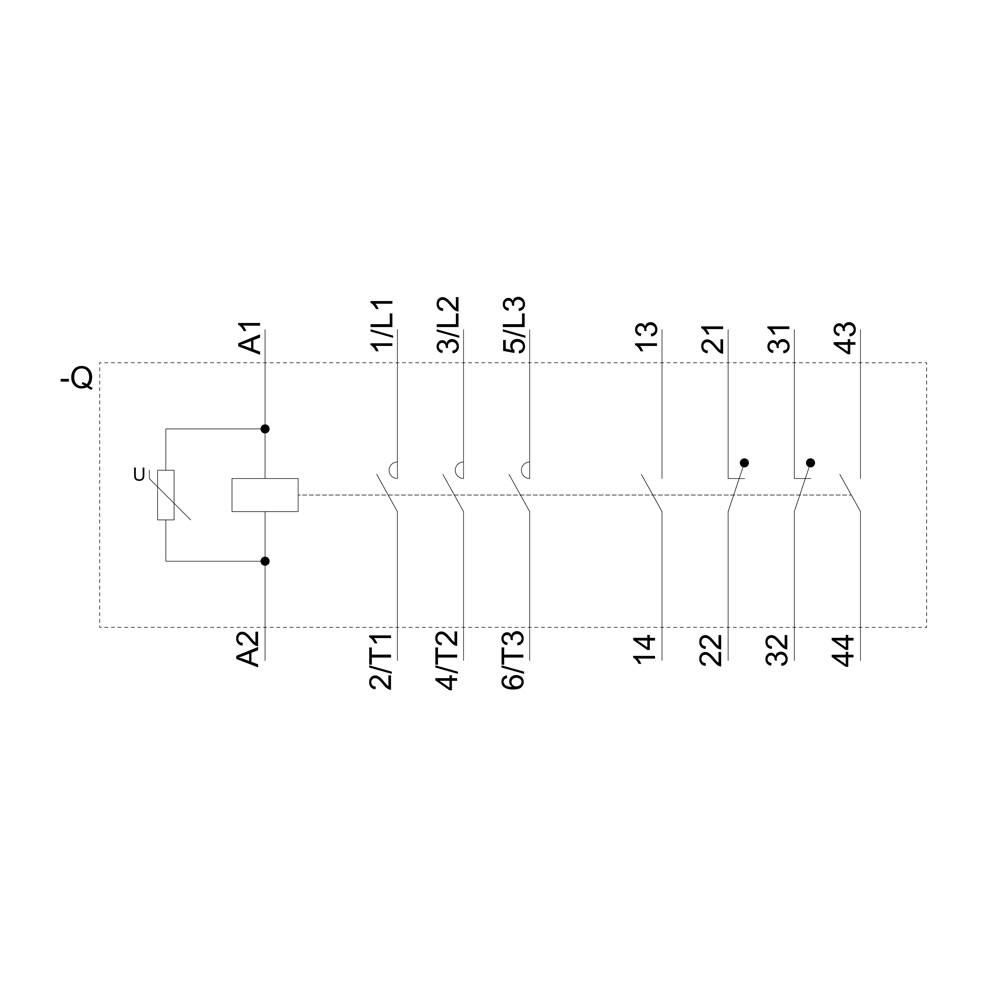

'Contactor Circuit Diagram: A1 and A2 are control terminals; L1, L2, L3 are power inputs; T1, T2, T3 are power outputs.'

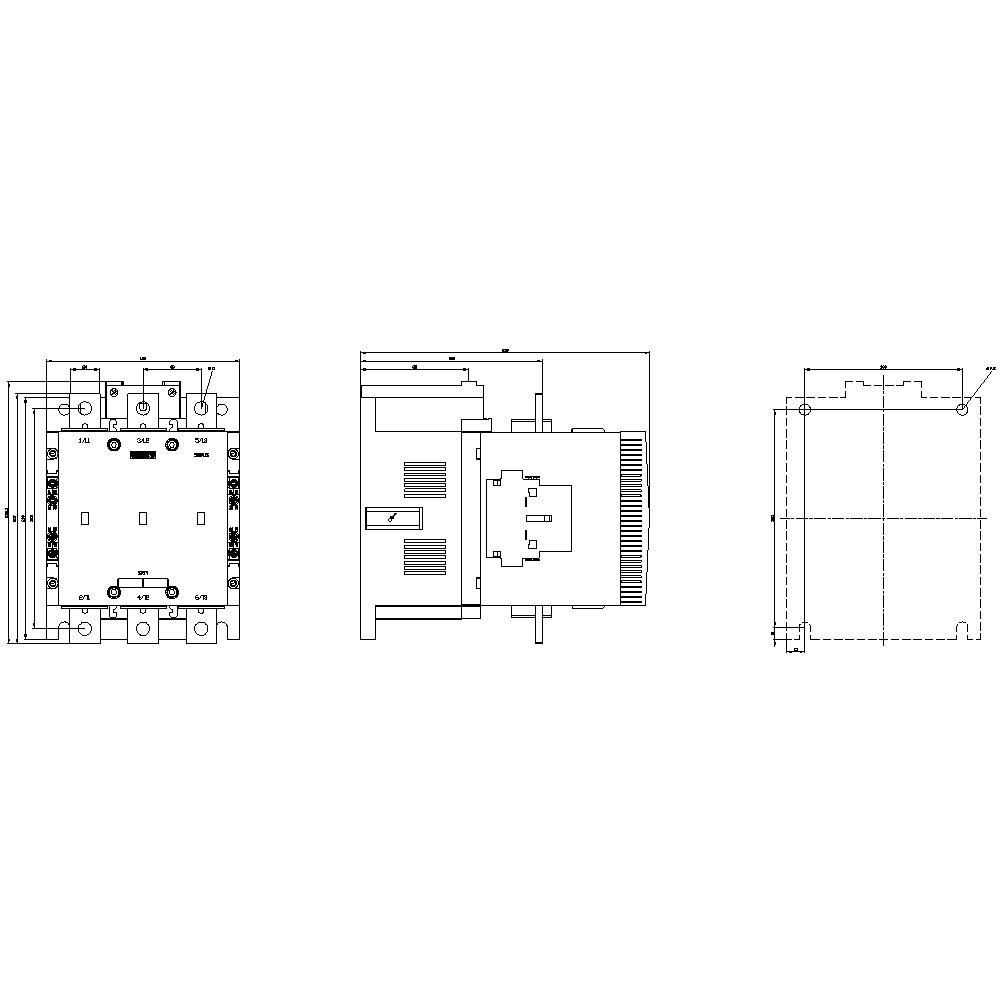

Circuit diagram of an electronic circuit with multiple inputs and outputs, showing connections and internal components.

1/5

Image similar

Product type

Vacuum contactor

No. of pins

3-pin

Nominal voltage

1000 V AC

Connection

Terminal strip

Type

3RT1275-6AV36

Datasheet (PDF)

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,865.00 / piece)

€ 2,865.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage, AC/DC
Conductor cross-section single or multi-strand: 240 mm²

Product type: Vacuum contactor

Type: 3RT1275-6AV36

Type: S12

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 1000 V AC

Switching voltage (max.): 1000 V AC

Permanent current (max.): 400 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Screw-fit

Connection: Terminal strip

Durability: 1000 0000

: IP00

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 145 mm

Height: 210 mm

Depth: 206 mm

Dim: (W x H x D) 145 x 210 x 206 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 200 kW

: 3

: 2

: 2

: 400 A

: 610 A

: 380-420 V

: 380-420 V

: 380-420 V

: Rail connection

: AC/DC

: 350 A

: 200 kW

: 220.65

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Siemens 3RT1264-6AB36 Vacuum contactor 3 makers 110 kW 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746299

Dispatches on Fri 30 Oct

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AD36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746300

Dispatches on Tue 10 Nov

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AF36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1746301

Dispatches on Fri, 19 Feb 2027

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AM36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746302

Dispatches on Fri, 19 Feb 2027

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AP36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1741935

Dispatches on Tue 20 Oct

12 Piece(s)Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AR36 Vacuum contactor 3 makers 1000 V AC Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746303

Dispatches on Fri, 19 Feb 2027

Conrad Electronic

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AS36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747107

Dispatches on Fri 30 Oct

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AT36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747108

Dispatches on Fri 30 Oct

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AU36 Vacuum contactor 3 makers 110 kW 1000 V AC Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1698938

Dispatches on Fri, 19 Feb 2027

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Siemens 3RT1264-6AV36 Vacuum contactor 3 makers 110 kW 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1747109

Dispatches on Fri, 19 Feb 2027

Conrad Electronic

110 kW

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,649.00^*

Documents & Downloads

Datasheet

Datasheet 1747200 Siemens 3RT1275-6AV36 Vacuum contactor 3 makers 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 p

User & Safety Instructions

User & Safety Instructions 1747200 Siemens 3RT1275-6AV36 Vacuum contactor 3 makers 1000 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 p

Description

Vacuum contactor, AC-3 500 A, 250 kW / 400 V AC (50-60 Hz) / DC operation 240-277 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S12 Busbar connections Drive: conventional

Description

Vacuum contactor, AC-3 500 A, 250 kW / 400 V AC (50-60 Hz) / DC operation 240-277 V UC Auxiliary contacts 2 NO + 2 NC 3-pole, Size S12 Busbar connections Drive: conventional
