Siemens 3RT2015-1MB42-0KT0 Electrical contactor 3 makers 690 V AC 1 pc(s)

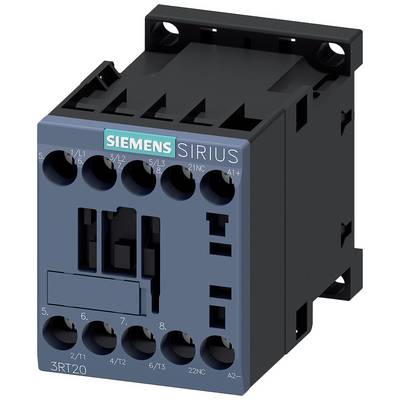

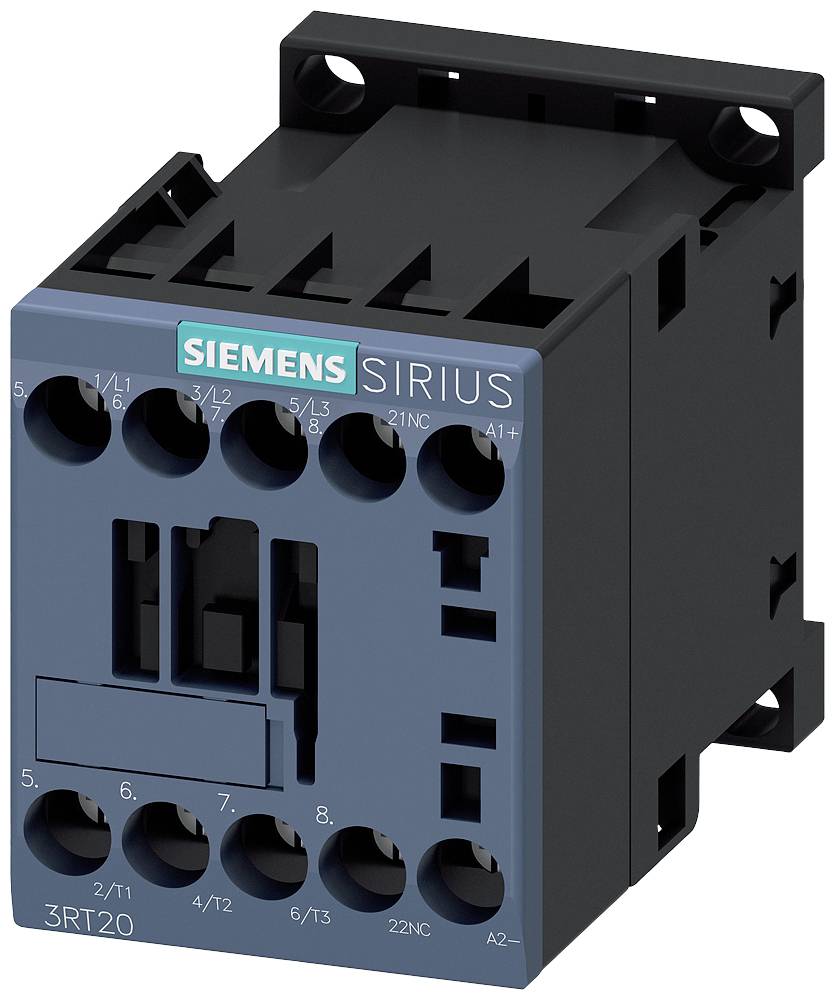

Siemens Sirius contactor, model number 3RT20, with a black and blue housing featuring multiple visible connections.
A machine control cabinet on the left reveals open electronic components, with a window to the right showing water droplets and machinery.
Image shows a diagram of firearms and accessories, numbered with explanations. Displays connections, functional modules, and possible interfaces.
Circuit diagram of a relay with coil terminals A1 (+) and A2 (-) and power contacts 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3.
Technical drawing of an electrical relay with dimensions: 45x45x73 mm. Shows top view, side view, and rear view.

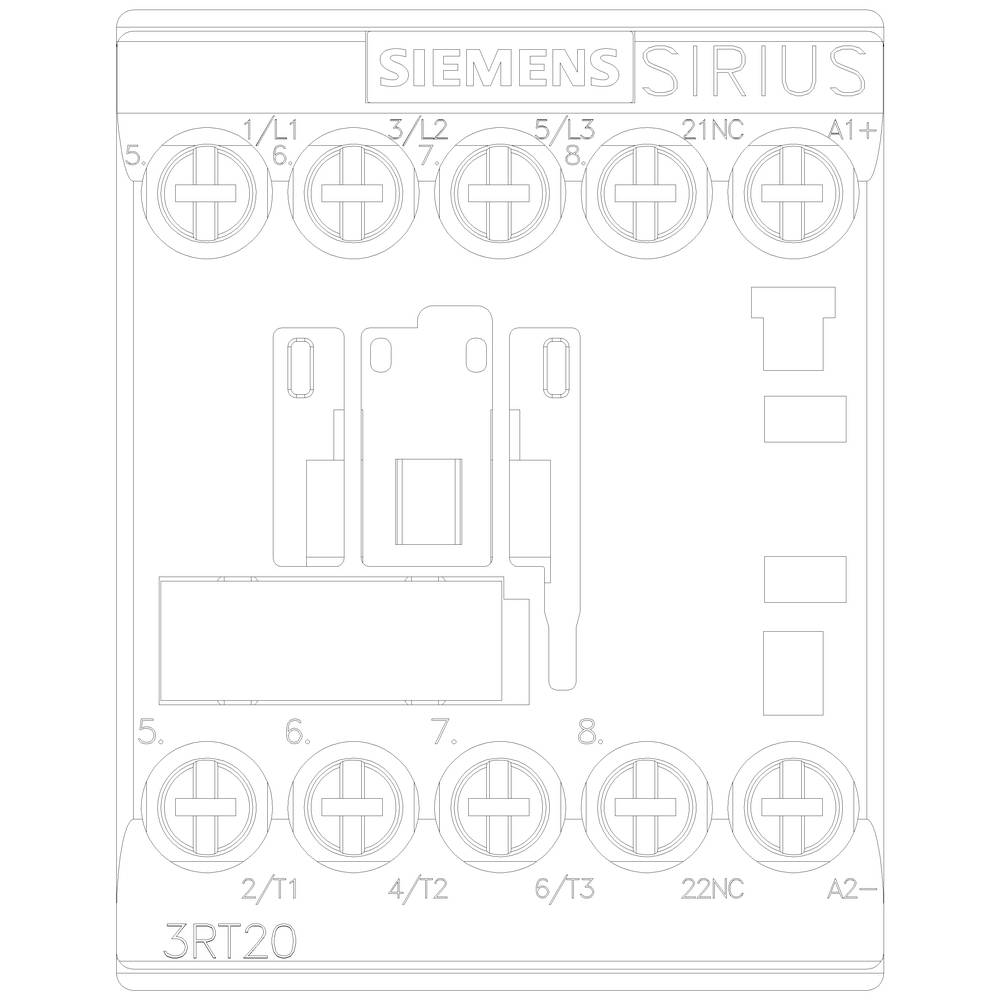

Technical drawing of a Siemens SIRIUS contactor with connection points, product number '3RT20', overview and detailed view.
1/6
Image similar
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
690 V AC
Connection
Screws
Type
3RT2015-1MB42-0KT0
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 67.99 / piece)
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type of voltage: DC
  • Conductor cross-section single or multi-wire: 4 mm²
  • Conductor cross-section for fine-wire: 2.5 mm²
Product type

Electrical contactor

Type

3RT2015-1MB42-0KT0

Type

S00

No. of pins

3-pin

Contact type

3 makers

Nominal voltage

690 V AC

Mounting type

Snap-in

Screw-fit

Connection

Screws

Durability

3000 0000

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

45 mm

Height

58 mm

Depth

73 mm

Dim

(W x H x D) 45 x 58 x 73 mm

Content

1 pc(s)

RoHS-compliant

Yes

TRUE

3 kW

3

1

7 A

18 A

Screw connection

DC

6.5 A

3 kW

2.20649625

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1730345 Siemens 3RT2015-1MB42-0KT0 Electrical contactor 3 makers 690 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730345 Siemens 3RT2015-1MB42-0KT0 Electrical contactor 3 makers 690 V AC 1 pc(s)

Description

Power contactor, AC-3 7 A, 3 kW / 400 V 1 NO, 42 V AC, 50 / 60 Hz 3-pole, Size S00 Spring-type terminal
