Siemens 3RT2016-1AD01 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)

Illustration of a Siemens SIRIUS contactor, Model 3RT2017, in black and grey. It is used for switching in electrical circuits.
Industrial machinery inside, right side with an open control cabinet, left side a rainy exterior window. The environment appears technical.

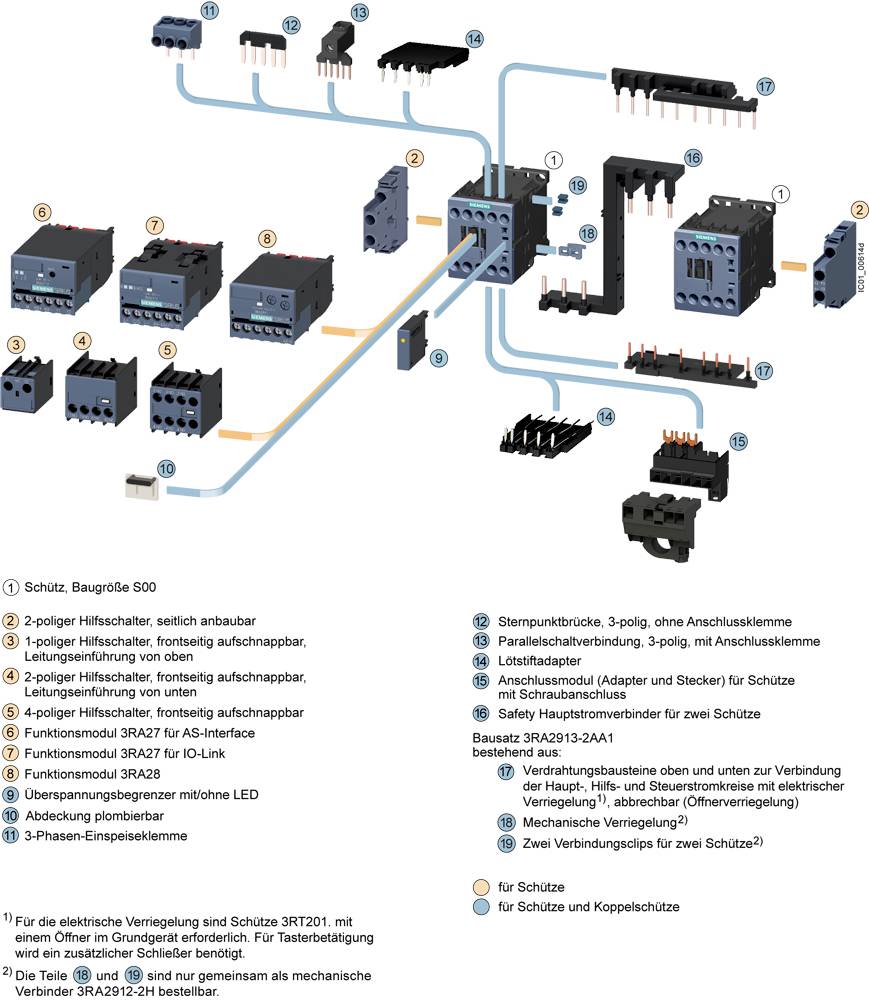

'Illustration of Shooter Setup: Displays electrical components, connections, and numbering. Explains combination possibilities and circuit diagrams.'

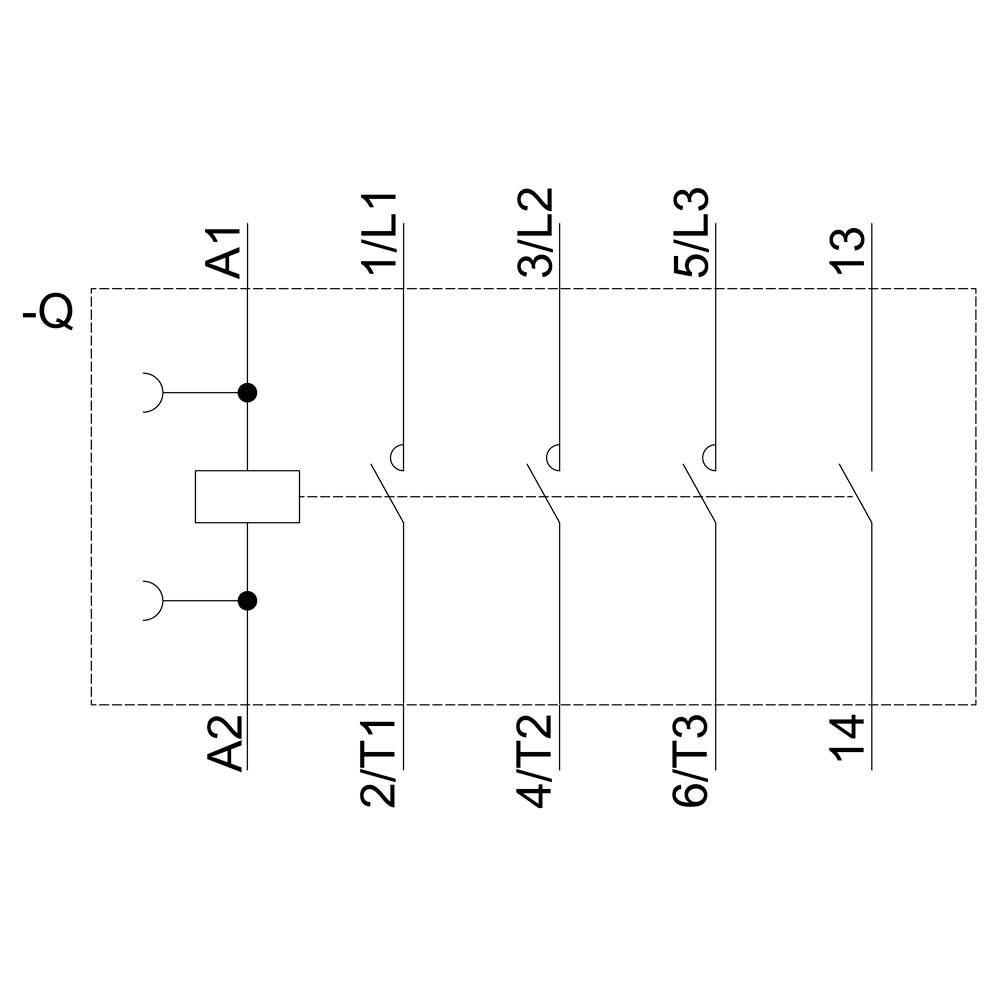

Circuit diagram of a contactor with control circuit A1, A2 and load circuits 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, and terminals 13, 14.

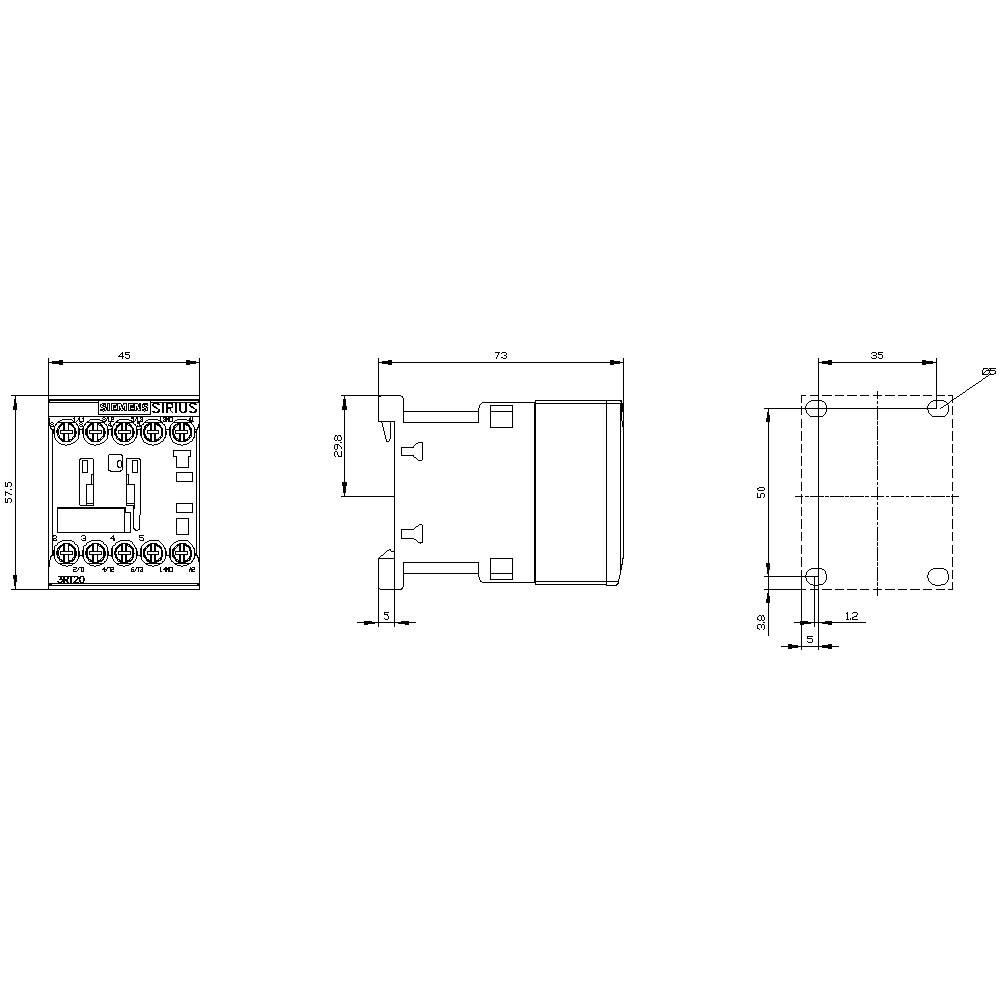

Technical drawing of an electrical component with dimensions: height 73 mm, width 45 mm, depth 35 mm. Side views and top view shown.

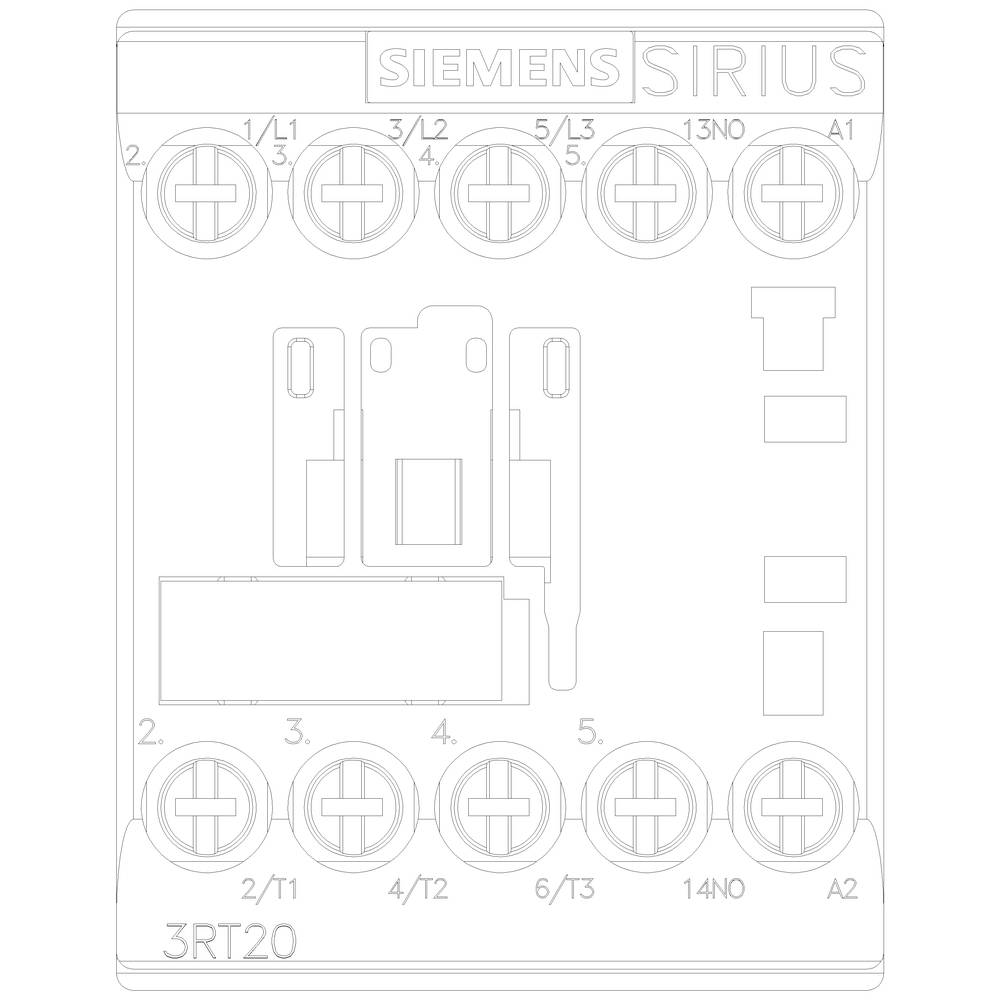

Circuit diagram of a Siemens SIRIUS contactor (3RT20 series) with connections and labels. Main terminals L1, L2, L3 and outputs 13NO, 14NO.
1/6
Image similar
Product type
Electrical contactor
No. of pins
3-pin
Nominal voltage
690 V AC
Power
4 kW
Connection
Screws
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Tue 10 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 67.99 / piece)
€ 67.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Type of voltage: AC
  • Conductor cross-section single or multi-wire: 4 mm²
  • Conductor cross-section for fine-wire: 2.5 mm²
Product type

Electrical contactor

Type

3RT2016-1AD01

Type

S00

No. of pins

3-pin

Contact type

3 makers

Auxiliary contact type

1 maker

Nominal voltage

690 V AC

Control voltage (max.)

42 V AC

Control voltage range

42 V AC (max)

Switching voltage (max.)

690 V AC

Max. switching capacity

4000 W

Permanent current (max.)

9 A

4 kW

Compatible with

Siemens

Compatible with series

Siemens Sirius series

Mounting type

Snap-in

Screw-fit

Connection

Screws

Durability

3000 0000

IP20

Min. temperature

-25 °C

Max. temperature

+60 °C

Width

45 mm

Height

58 mm

Depth

73 mm

Dim

(W x H x D) 45 x 58 x 73 mm

Content

1 pc(s)

RoHS-compliant

Yes

TRUE

4 kW

3

1

9 A

22 A

42-42 V

42-42 V

Screw connection

AC

8.5 A

3.677

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1748376 Siemens 3RT2016-1AD01 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1748376 Siemens 3RT2016-1AD01 Electrical contactor 3 makers 4 kW 690 V AC Compatible with (relay brand): Siemens 1 pc(s)

Description

Power contactor, AC-3 9 A, 4 kW / 400 V 1 NC, 230 V AC, 50 / 60 Hz 3-pole, Size S00 screw terminal
