Name: Siemens 3RT2017-1AF01 Electrical contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): S
Brand: Siemens
SKU: 1731381
Availability: BackOrder

A Siemens Sirius contactor, model 3RT202, is shown. It features multiple terminals on the front.

In a laboratory, an open electrical cabinet with electronic components and machines can be seen behind a rain-soaked glass pane.

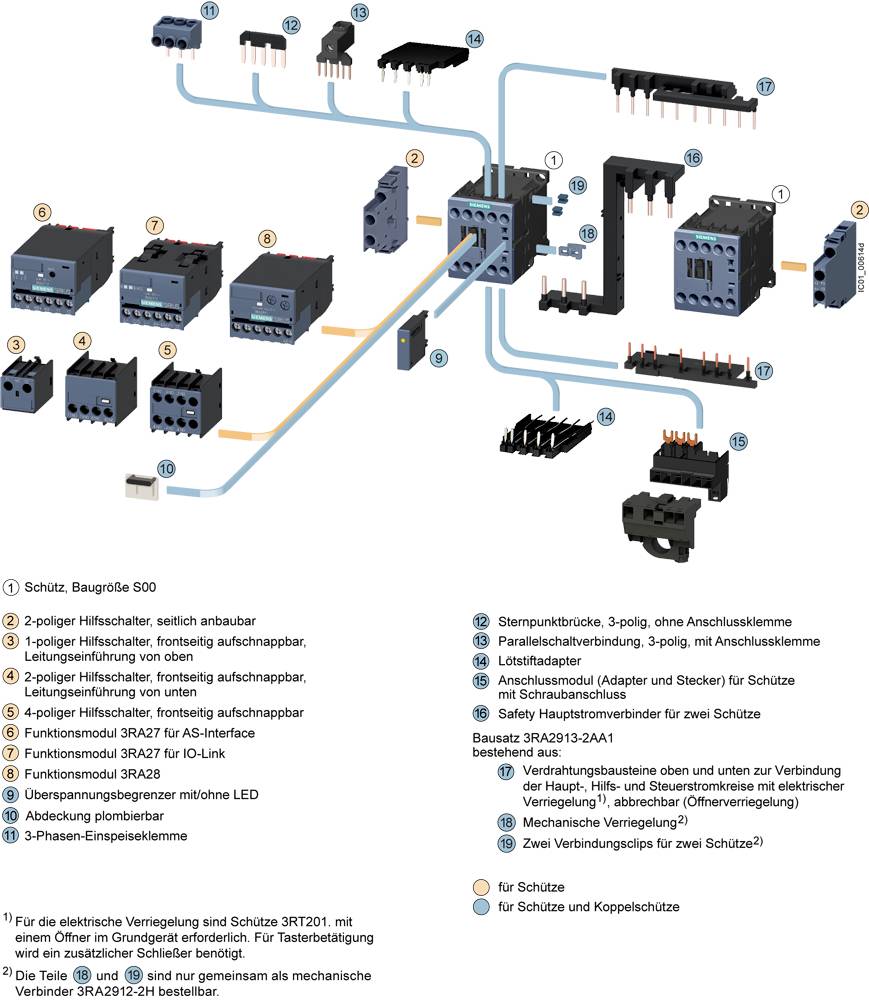

Contactor circuit diagram with numbered components, arrows, and legend. Shows the structure and connections of various contactor types.

Wiring diagram of a power contactor with markings for connection terminals A1, A2, 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, 13, 14.

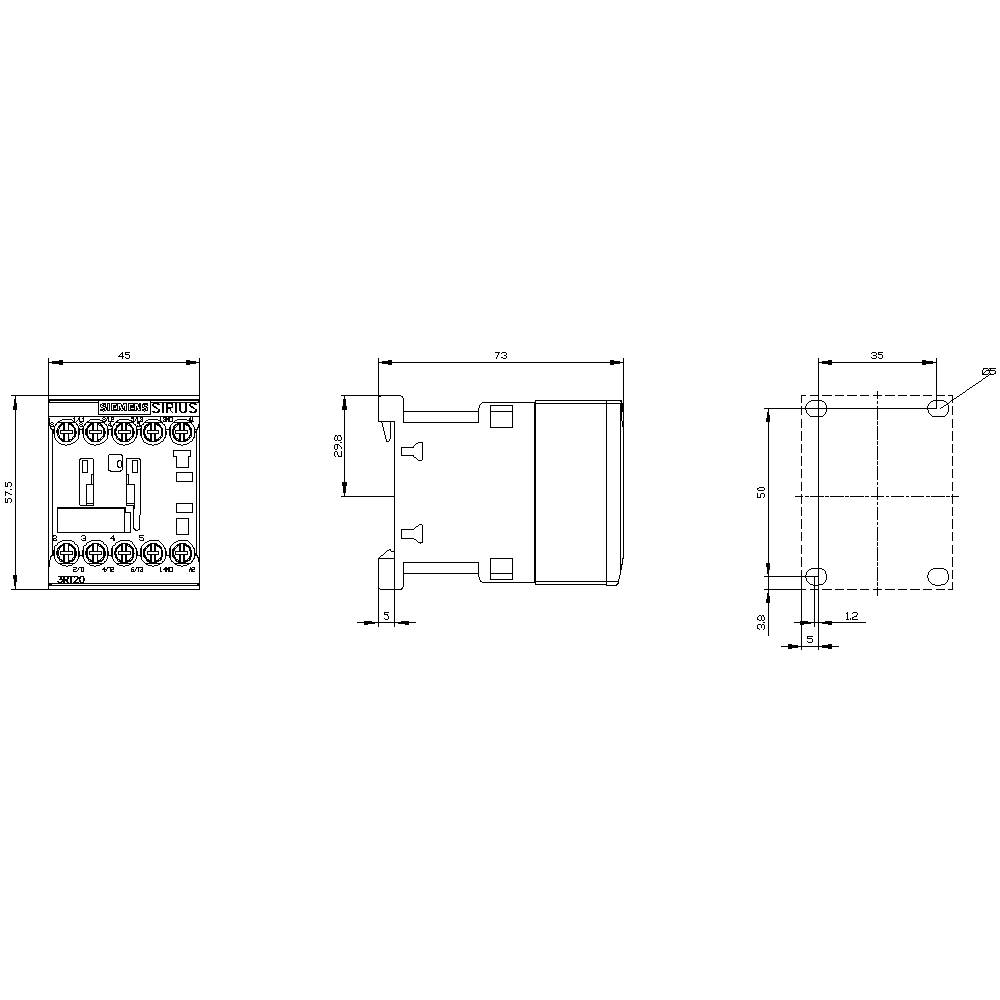

'Technical drawing of an electronic component in three views: 45 mm x 73 mm. Detailed dimensions and connections specified.'

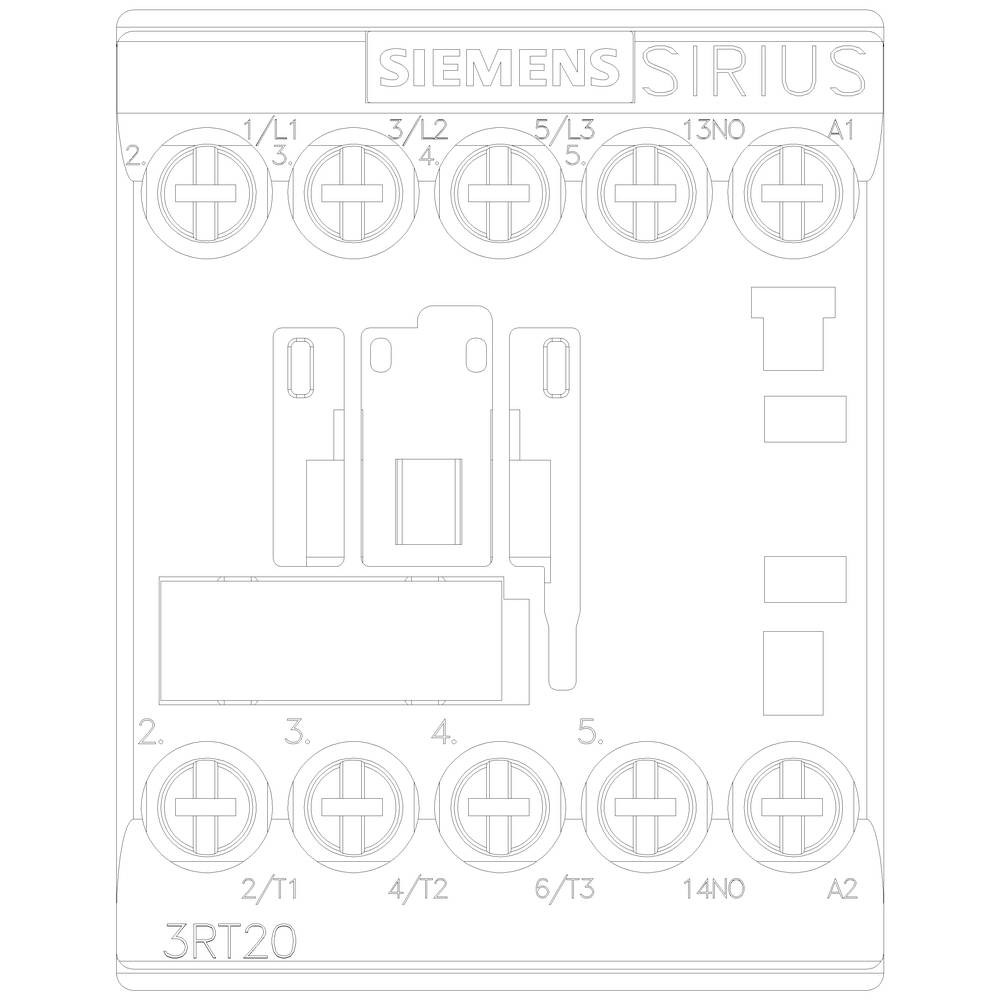

'Schütz Siemens SIRIUS 3RT20' with top and bottom connections; used for switchboard installations.

1/6

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

5.5 kW

Connection

Screws

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 59.99 / piece)

€ 59.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Product type: Electrical contactor

Type: 3RT2017-1AF01

Type: S00

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: 1 maker

Nominal voltage: 690 V AC

Control voltage (max.): 110 V AC

Control voltage range: 110 V AC (max)

Switching voltage (max.): 690 V AC

Permanent current (max.): 12 A

: 5.5 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 58 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 58 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 5.5 kW

: 3

: 1

: 12 A

: 22 A

: 110-110 V

: 110-110 V

: Screw connection

: AC

: 8.5 A

: 5.516

UKCA: yes
