Name: Siemens 3RT2024-2BF40 Electrical contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): S
Brand: Siemens
SKU: 1747037
Availability: BackOrder

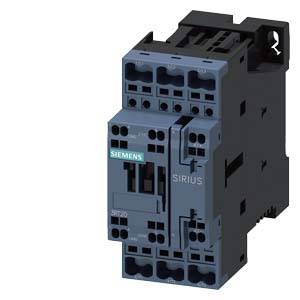

A Siemens electric contactor of the Sirius model, used for controlling electrical circuits in industrial applications.

A control cabinet with open doors reveals complex wiring. In the background, rain falls on a glazed surface with a blurred exterior view.

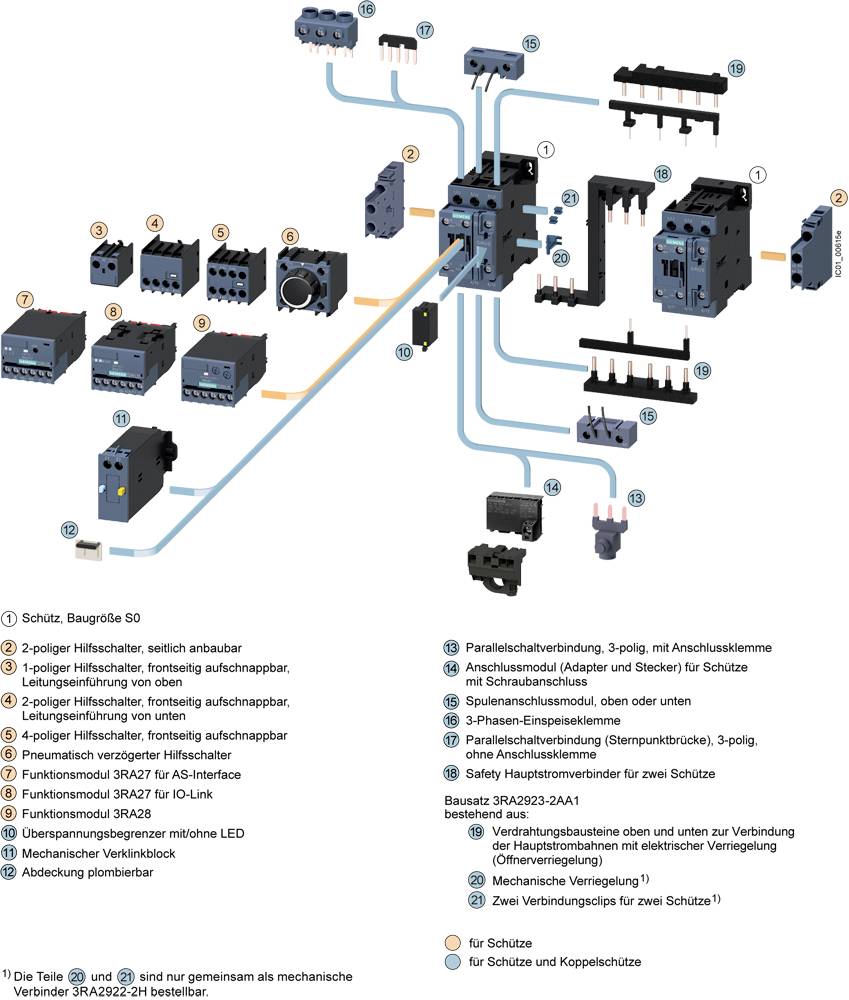

Exploded diagram of a contactor system with component labels. Main components: contactor, auxiliary switch, terminals. Legend for protection types and coupling contactors.

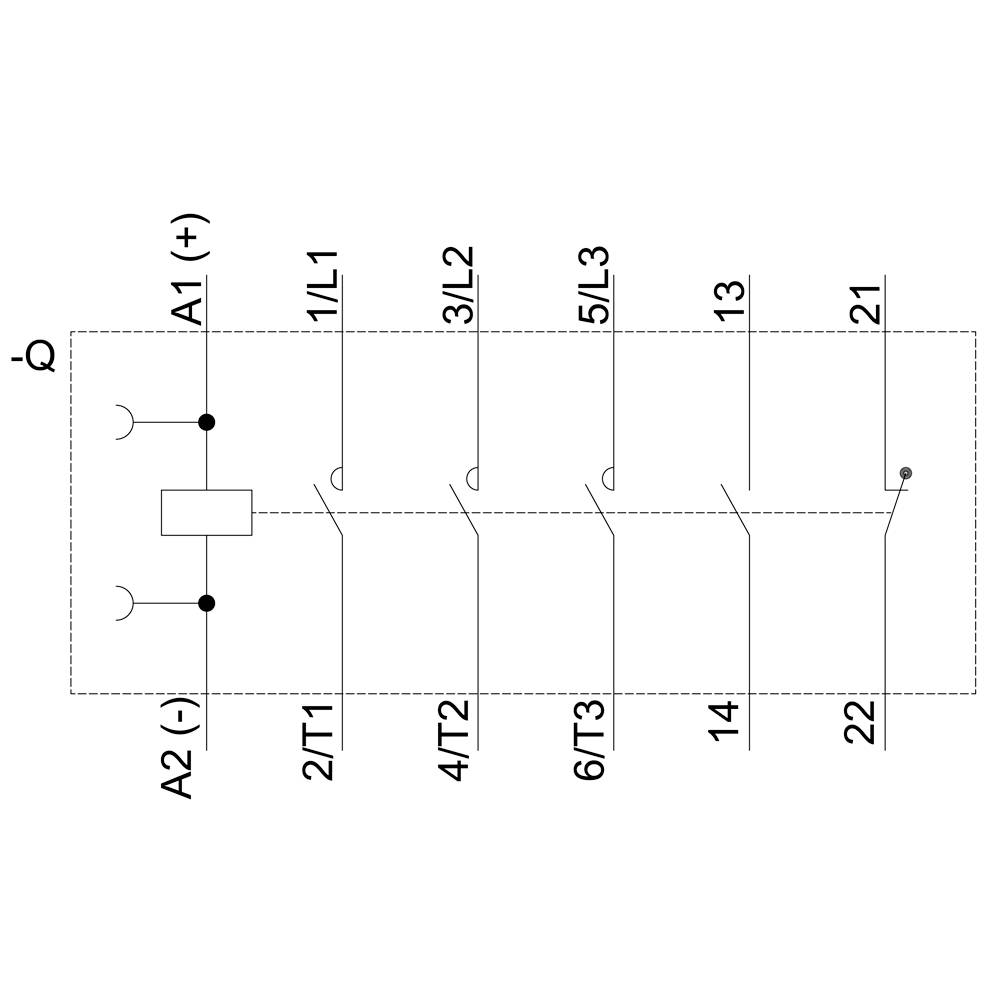

Circuit diagram of an electrical contactor with terminals A1 (+) and A2 (-), with side-numbered connections 1 to 6 and 1 to 22.

Technical drawing of an electrical switching device with dimensions: 54 mm x 101 mm x 94 mm. Detailed views with dimensional specifications.

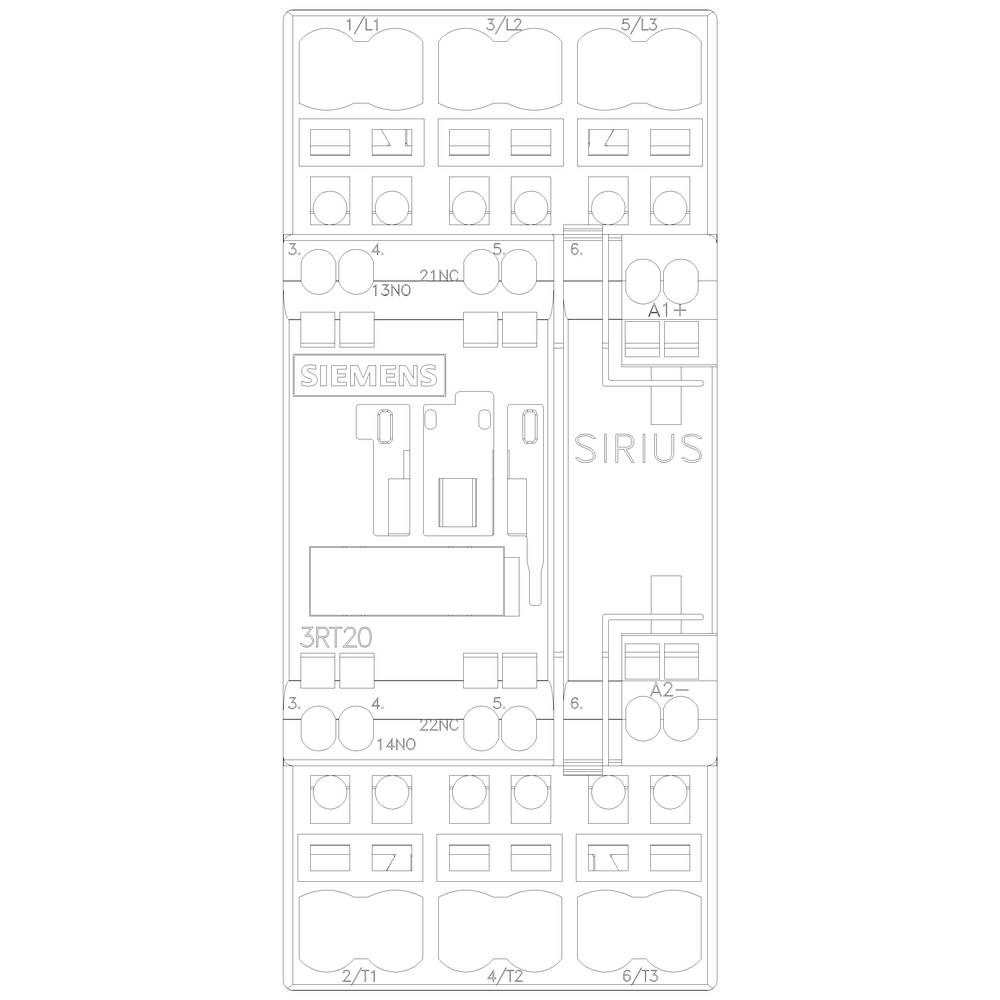

Figure of a Siemens SIRIUS switching device. Shows switching symbols, contact designations and the model name '3RT20'.

1/6

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

5.5 kW

Connection

Spring-loaded connector

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 104.99 / piece)

€ 104.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for fine-wire: 6 mm²

Product type: Electrical contactor

Type: 3RT2024-2BF40

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 12 A

: 5.5 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 102 mm

Depth: 107 mm

Dim: (W x H x D) 45 x 102 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 5.5 kW

: 3

: 1

: 1

: 12 A

: 40 A

: 110-110 V

: Spring clamp connection

: DC

: 12.5 A

: 5.516

UKCA: yes
