Name: Siemens 3RT2027-1AF00 Contactor 3 makers 15 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(
Brand: Siemens
SKU: 1702520
Availability: BackOrder

A navy blue Siemens contactor with two rows of terminal blocks and 'SIRIUS' printed on the front.

An industrial machine with visible cables and circuits in the foreground and a rain-streaked window pane in the background.

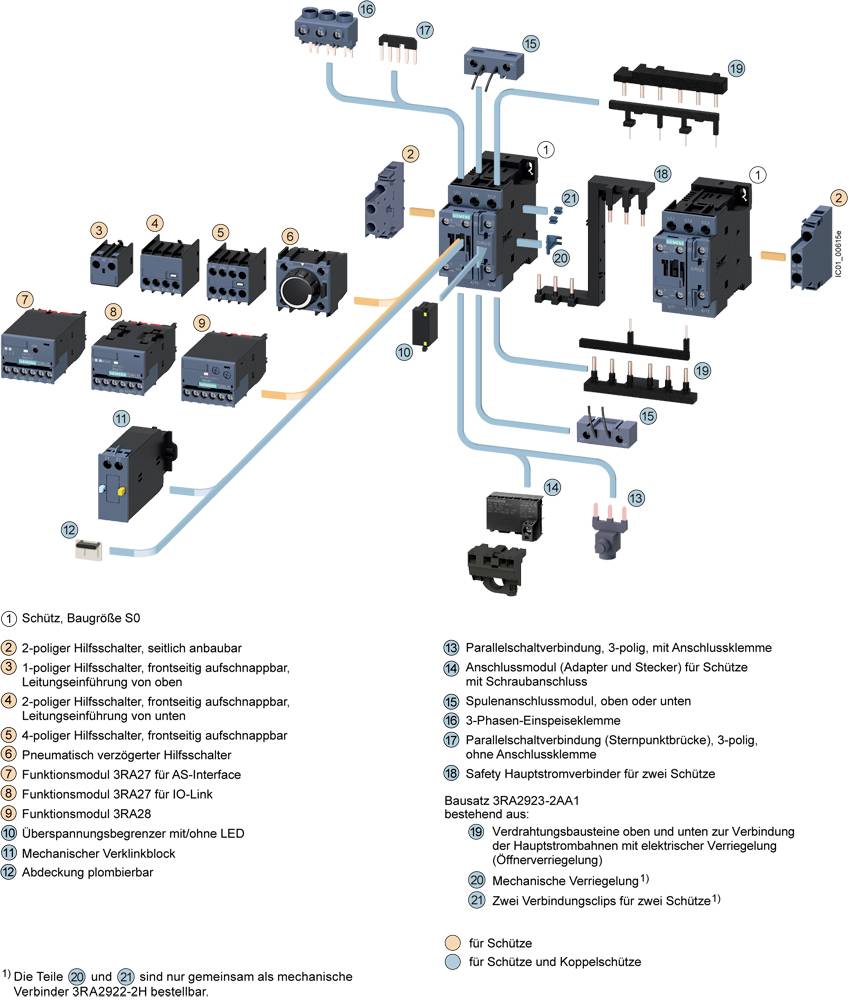

Exploded diagram of a protective system with numbered components and legend. Shows wiring details and assembly instructions for an electrical contactor.

Circuit diagram of a contactor with control and power contacts: terminals A1/A2, power contacts 1-2 and control contacts T1-T3.

Technical drawing of an electrical relay with dimensions: 47x45x37 mm. Views show wire connections and mounting holes.

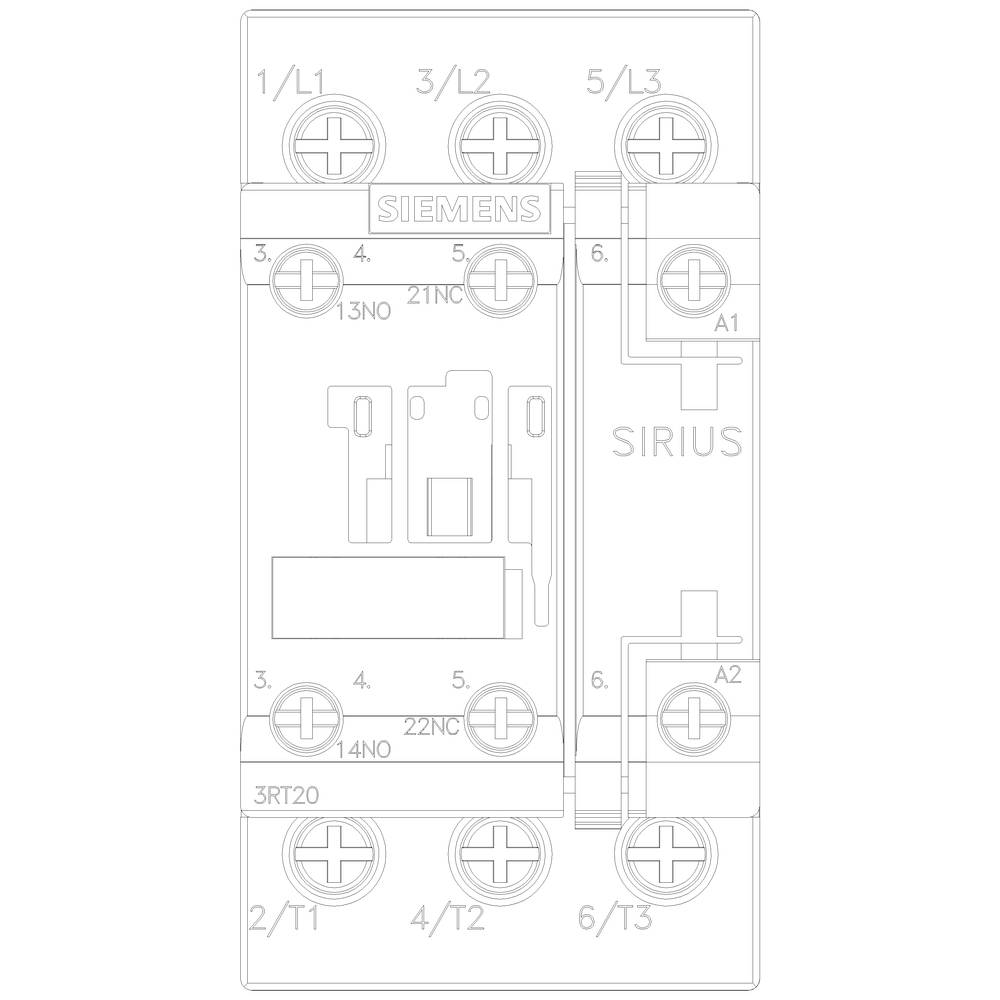

'Circuit diagram of a Siemens SIRIUS contactor with connection labels and contact positions. Main current connections: L1, L2, L3, T1, T2, T3. Control connections: A1, A2, 13NO, 21NC, 22NC.'

1/6

Image similar

Product type

Contactor

No. of pins

3-pin

Nominal voltage

690 V AC

Power

15 kW

Connection

Screws

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Contactor

Type: 3RT2027-1AF00

Type: S0

No. of pins: 3-pin

Contact type: 3 makers

Nominal voltage: 690 V AC

Control voltage (min.): 110 V AC

Control voltage (max.): 110 V AC

Control voltage range: 110 - 110 V AC

Switching voltage (max.): 690 V AC

Permanent current (max.): 32 A

: 15 kW

Compatible with: Siemens

Compatible with series: Siemens S0 type

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 85 mm

Depth: 97 mm

Dim: (W x H x D) 45 x 85 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 15 kW

: 3

: 1

: 1

: 32 A

: 50 A

: 110-110 V

: Screw connection

: AC

: 22 A

: 14.71

UKCA: yes
