Name: Siemens 3RT2046-1AP60-0UA0 Electrical contactor 3 makers 1000 V AC + auxiliary contact 1 pc(s)
Brand: Siemens
SKU: 1747374
Availability: BackOrder

A grey power contactor with three main contacts and multiple connection terminals, used in electrical switchgear.

An open electrical cabinet reveals electronic components. Through a rain-soaked window, an industrial machine is visible.

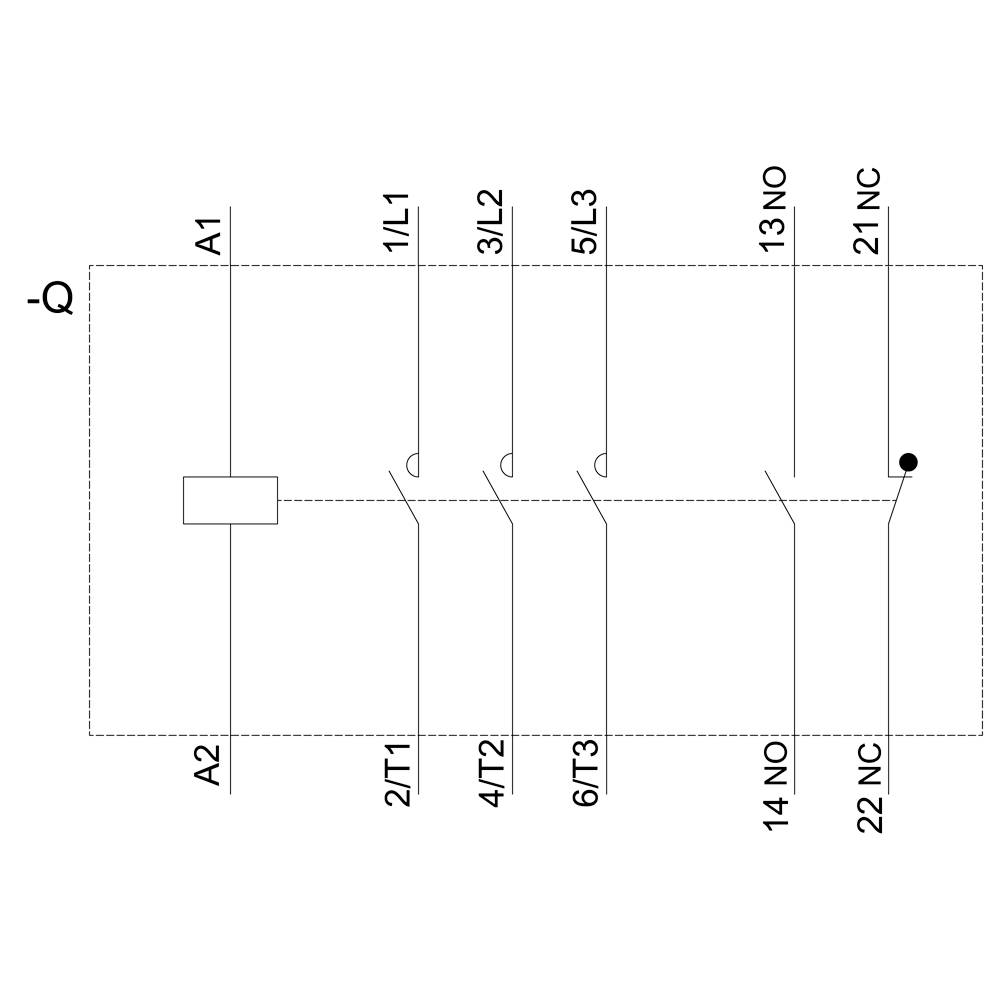

Circuit Diagram: It shows the connections and contacts of a contactor. On the left is a rectangle for the coil between A1 and A2. On the right are contacts 13NO, 21NC.

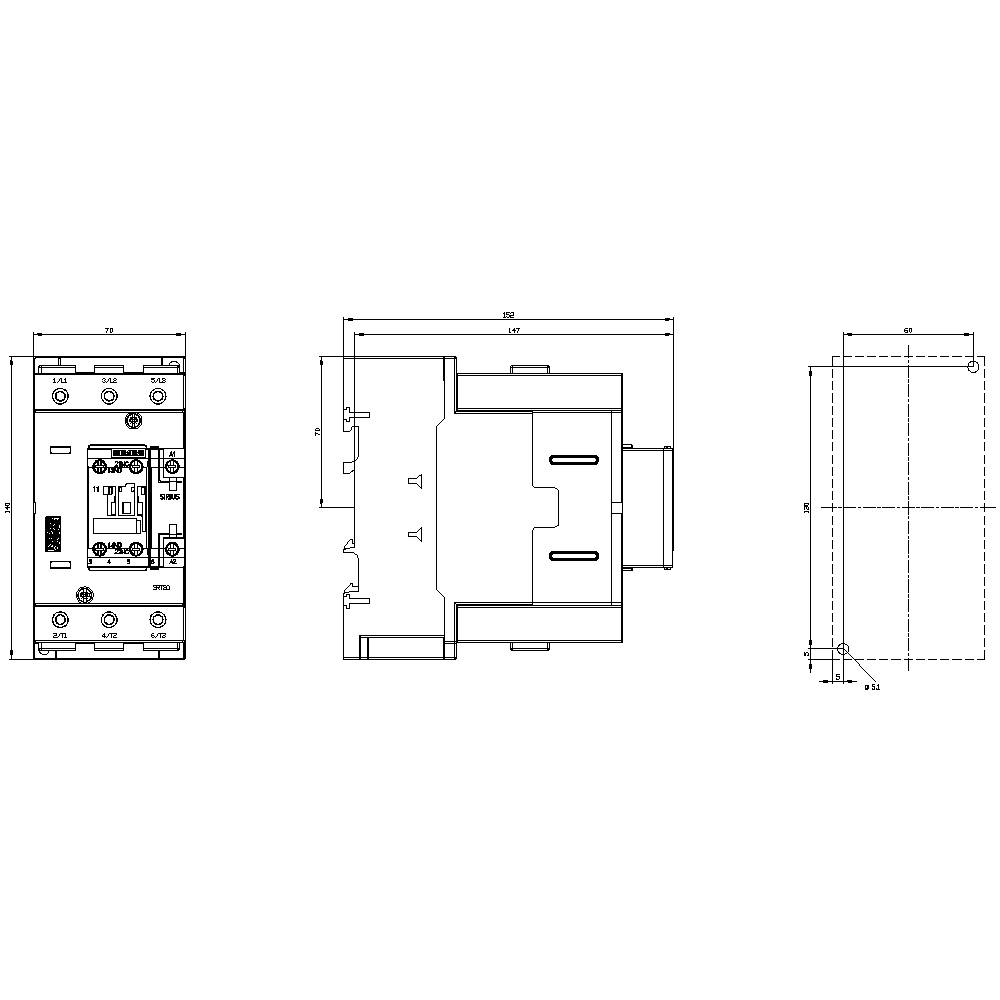

Technical drawing of an electromechanical device with three views: front view, side view, and top view. Dimensions are indicated.

1/4

Image similar

Product type

Electrical contactor

No. of pins

3-pin

Nominal voltage

1000 V AC

Connection

Screws

Type

3RT2046-1AP60-0UA0

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 13 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 419.00 / piece)

€ 419.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 70 mm²
Conductor cross-section for finely-stranded: 50 mm²

Product type: Electrical contactor

Type: 3RT2046-1AP60-0UA0

Type: S3

No. of pins: 3-pin

Contact type: 3 makers

Auxiliary contact type: Antivalent

Nominal voltage: 1000 V AC

Control voltage (min.): 220 V AC

Control voltage (max.): 240 V AC

Control voltage range: 220 - 240 V AC

Switching voltage (max.): 1000 V AC

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 70 mm

Height: 140 mm

Depth: 152 mm

Dim: (W x H x D) 70 x 140 x 152 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 45 kW

: 3

: 1

: 1

: 95 A

: 130 A

: Screw connection

: AC

: 80 A

: 36.7749375

UKCA: yes
