Name: Siemens 3RT2316-2AK60 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1729869
Availability: BackOrder

Industrial contactor with 'Siemens SIRIUS' labelling, showing connections and control components. Suitable for industrial applications.

An open electrical cabinet reveals complex wiring, while outside a vehicle is being sprayed with water.

Schematic of a protective circuit diagram with four switching contacts and a coil, represented by A1 and A2. Connected to inputs L1 to L4 and outputs T1 to T4.

Technical drawing of a device with dimensions: Width 45 mm, Depth 73 mm, Height 65 mm. Shows front, side, and top views.

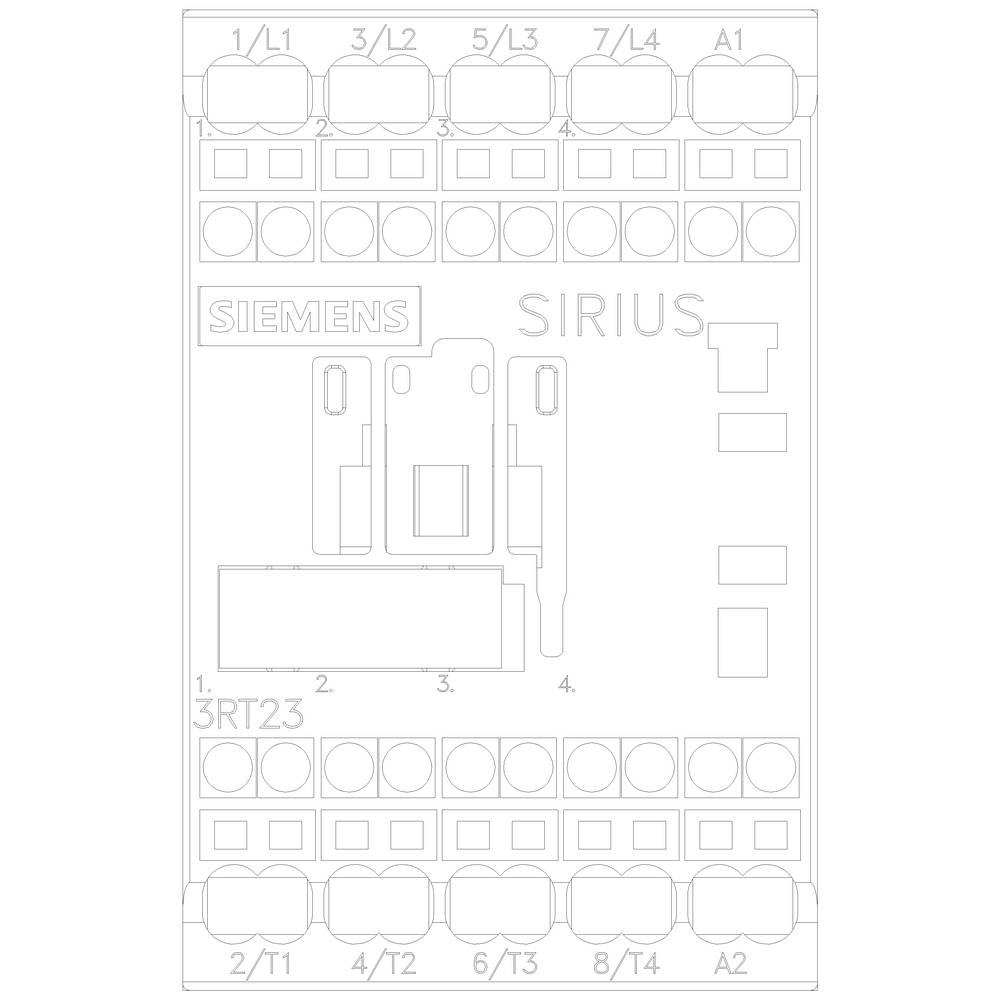

Circuit diagram of a Siemens SIRIUS contactor with numbered connection terminals for electrical wiring.

1/5

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Spring-loaded connector

Type

3RT2316-2AK60

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-wire: 4 mm²
Conductor cross-section for fine-wire: 2.5 mm²

Product type: Contactor

Type: 3RT2316-2AK60

Type: S00

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 4 makers

Control voltage (min.): 110 V AC

Control voltage (max.): 120 V AC

Control voltage range: 110 - 120 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 18 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Spring-loaded connector

Durability: 3000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 45 mm

Height: 70 mm

Depth: 73 mm

Dim: (W x H x D) 45 x 70 x 73 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 4 kW

: 4

: 9 A

: 18 A

: Spring clamp connection

: AC

: 8.5 A

: 4 kW

UKCA: yes

Variants(All information include VAT, plus shipping costs)
