Name: Siemens 3RT2326-1AB00 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)
Brand: Siemens
SKU: 1729901
Availability: BackOrder

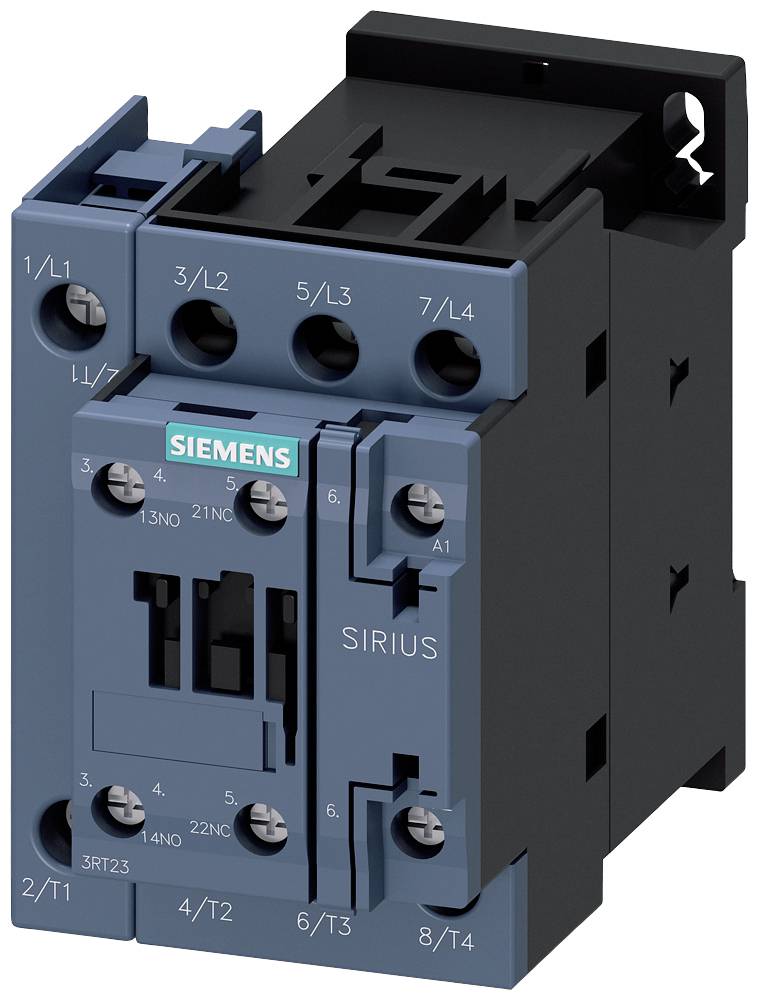

A Siemens electric contactor, Sirius model, with front-mounted terminals. Used for switching and control purposes.

An open electrical cabinet with electronic components on the left, a production machine in the background, separated by rain on the window.

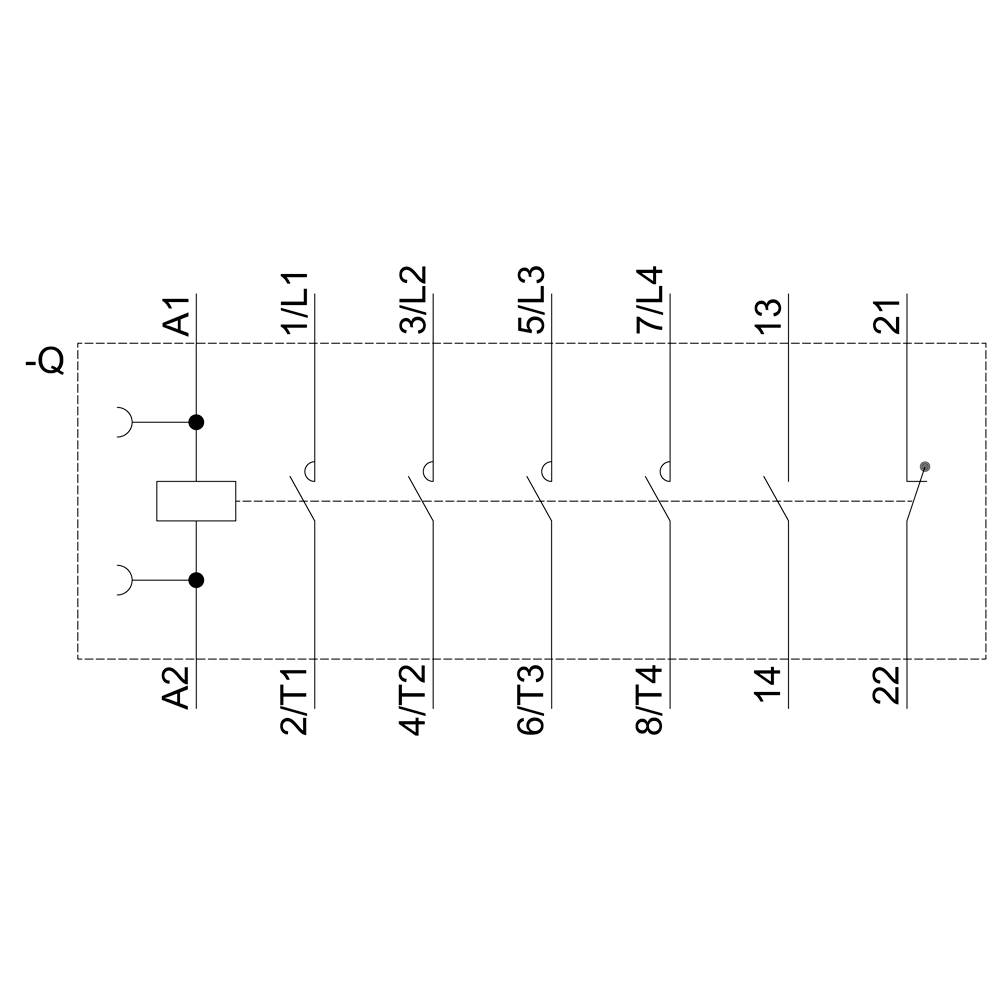

Circuit diagram shows a relay with multiple terminals (A1, A2, 1/L1, 3/L2, etc.). Lines connect the terminals to illustrate the circuit.

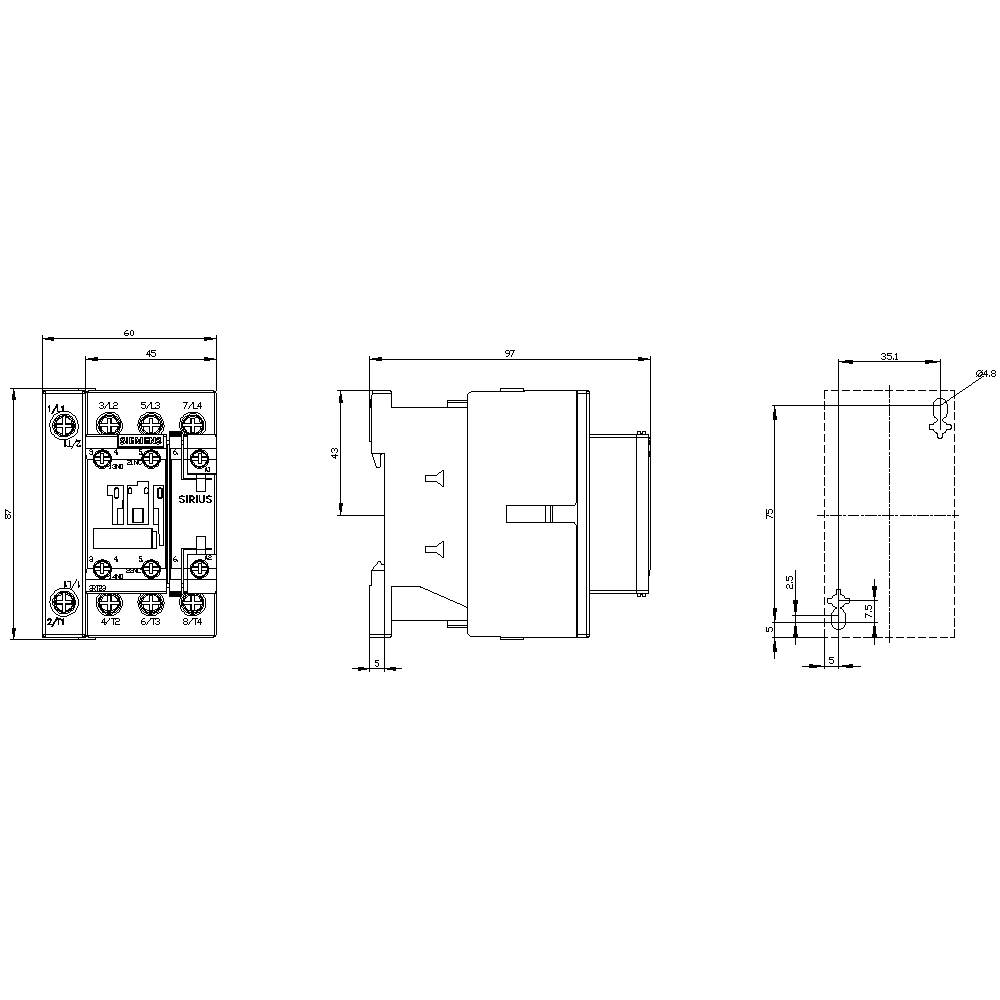

Technical drawing of an electrical switch with front, side, and top views. Dimensions and connection details are highlighted.

1/4

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Screws

Packaging type

Piece

Type

3RT2326-1AB00

Datasheet (PDF)

Dispatches on Fri 23 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Packaging type: Piece

Product type: Contactor

Type: 3RT2326-1AB00

Type: S0

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Control voltage (min.): 24 V AC

Control voltage (max.): 24 V AC

Control voltage range: 24 - 24 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 40 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 60 mm

Height: 85 mm

Depth: 97 mm

Dim: (W x H x D) 60 x 85 x 97 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 7.5 kW

: 4

: 1

: 1

: 15.5 A

: 40 A

: 24-24 V

: Screw connection

: AC

: 15.5 A

: 7.5 kW

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Power

Nominal voltage

Siemens 3RT2023-1AP00 Contactor 3 makers 4 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746216

Fast track dispatch on Thu 15 Oct

6 Piece(s)Conrad Electronic

4 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

Siemens 3RT2023-1AP04 Contactor 3 makers 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746217

Fast track dispatch on Thu 15 Oct

2 Piece(s)Conrad Electronic

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

Siemens 3RT2023-1BB40 Contactor 3 makers 4 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746220

Fast track dispatch on Thu 15 Oct

4 Piece(s)Conrad Electronic

4 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 91.99^*

Siemens 3RT2023-1BB44 Contactor 3 makers 3.67749375 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1746221

Dispatches on Fri 23 Oct

Conrad Electronic

3.67749375 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Siemens 3RT2024-1AP00 Contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1750244

Fast track dispatch on Thu 15 Oct

7 Piece(s)Conrad Electronic

5.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens 3RT2024-1AP04 Contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747008

Fast track dispatch on Thu 15 Oct

4 Piece(s)Conrad Electronic

5.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

Siemens 3RT2024-1BB40 Contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747010

Fast track dispatch on Thu 15 Oct

9 Piece(s)Conrad Electronic

5.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 99.99^*

Siemens 3RT2024-1BB44 Contactor 3 makers 5.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1747012

Dispatches on Fri 23 Oct

Conrad Electronic

5.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Siemens 3RT2025-1AL20 Contactor 3 makers 7.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)

Item no:1702404

Fast track dispatch on Thu 15 Oct

9 Piece(s)Conrad Electronic

7.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 75.99^*

Siemens 3RT2025-1AL24 Contactor 3 makers 7.5 kW 690 V AC + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Item no:1741022

Dispatches on Fri 23 Oct

Conrad Electronic

7.5 kW

690 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 134.99^*

Documents & Downloads

Datasheet

Datasheet 1729901 Siemens 3RT2326-1AB00 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1729901 Siemens 3RT2326-1AB00 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens Piece 1 pc(s)

Description

Circuit breaker size S0 for motor protection, CLASS 10 A-release 3.5...5 A N release 65 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC

Description

Circuit breaker size S0 for motor protection, CLASS 10 A-release 3.5...5 A N release 65 A screw terminal Standard switching capacity with transverse auxiliary switches 1 NO+1 NC
