Name: Siemens 3RT2326-1BB40 Contactor 4 makers + auxiliary contact Compatible with (relay brand): Siemens 1 pc(s)
Brand: Siemens
SKU: 1729906
Availability: BackOrder

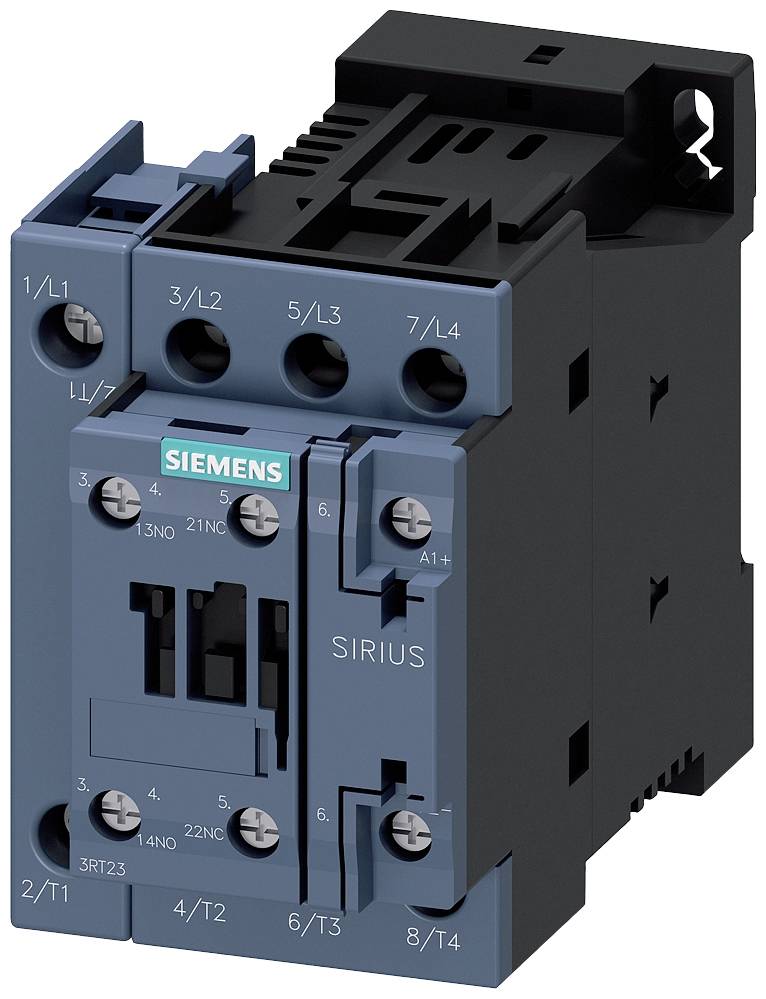

A Siemens electrical contactor, Sirius model, with connections and labels on the front panel.

An electrical control cabinet with an open enclosure reveals complex wiring and components, with a modern production line visible through a window in the background.

'Schematic circuit diagram of a 3-pole contactor with 8 reed relays and A1(+), A2(-) power circuits.'

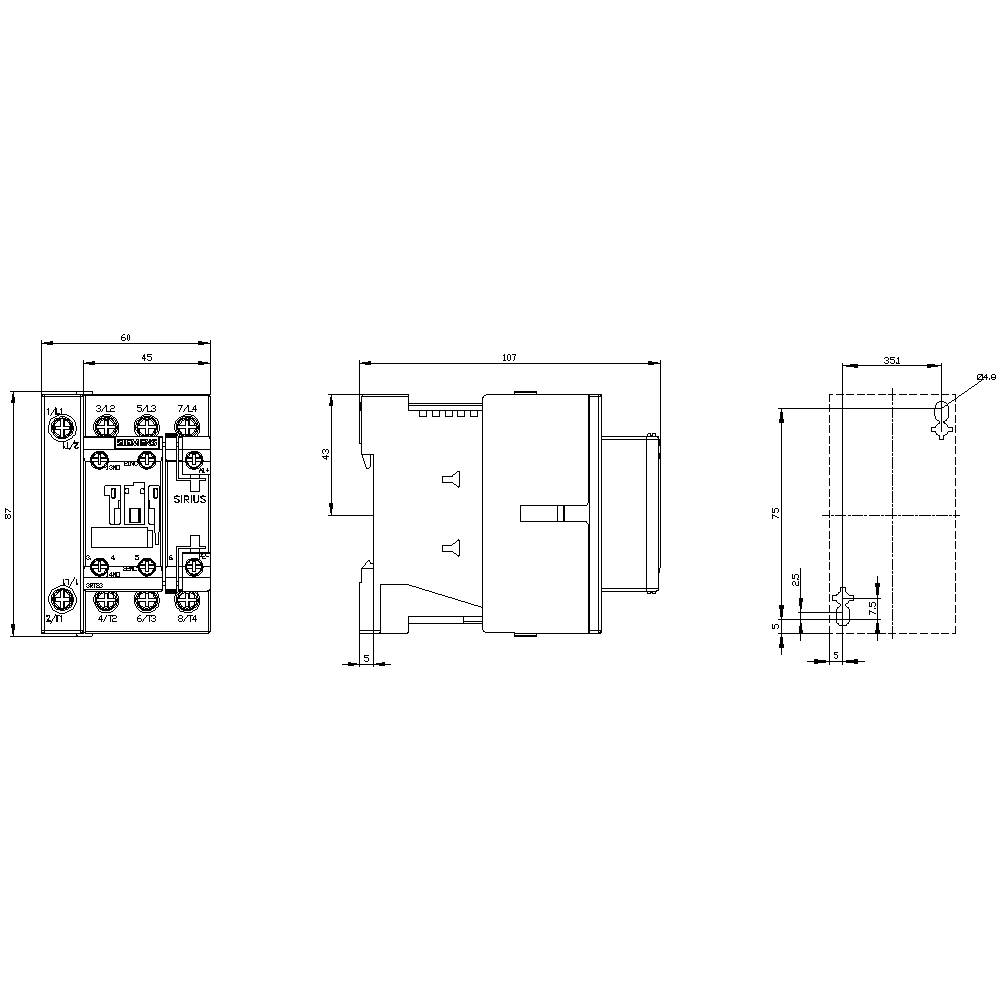

Technical drawing of an electrical switch with front, side, and top views. Dimensions and connections are indicated.

Electrical circuit diagram of a Siemens contactor with terminal designations L1, L2, L3, 13NO, 14NO, 21NC, 22NC, A1, A2.

1/5

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Screws

Type

3RT2326-1BB40

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Contactor

Type: 3RT2326-1BB40

Type: S0

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Switching voltage (max.): 400 V AC

Permanent current (max.): 40 A

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 60 mm

Height: 85 mm

Depth: 107 mm

Dim: (W x H x D) 60 x 85 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 7.5 kW

: 4

: 1

: 1

: 15.5 A

: 40 A

: 24-24 V

: Screw connection

: DC

: 15.5 A

: 7.5 kW

UKCA: yes
