Name: Siemens 3RT2327-1BB40 Contactor 4 makers + auxiliary contact 1 pc(s)
Brand: Siemens
SKU: 1730054
Availability: BackOrder

'Industrial control cabinet open, showing cables and circuits. Production area with machinery visible through wet window.'

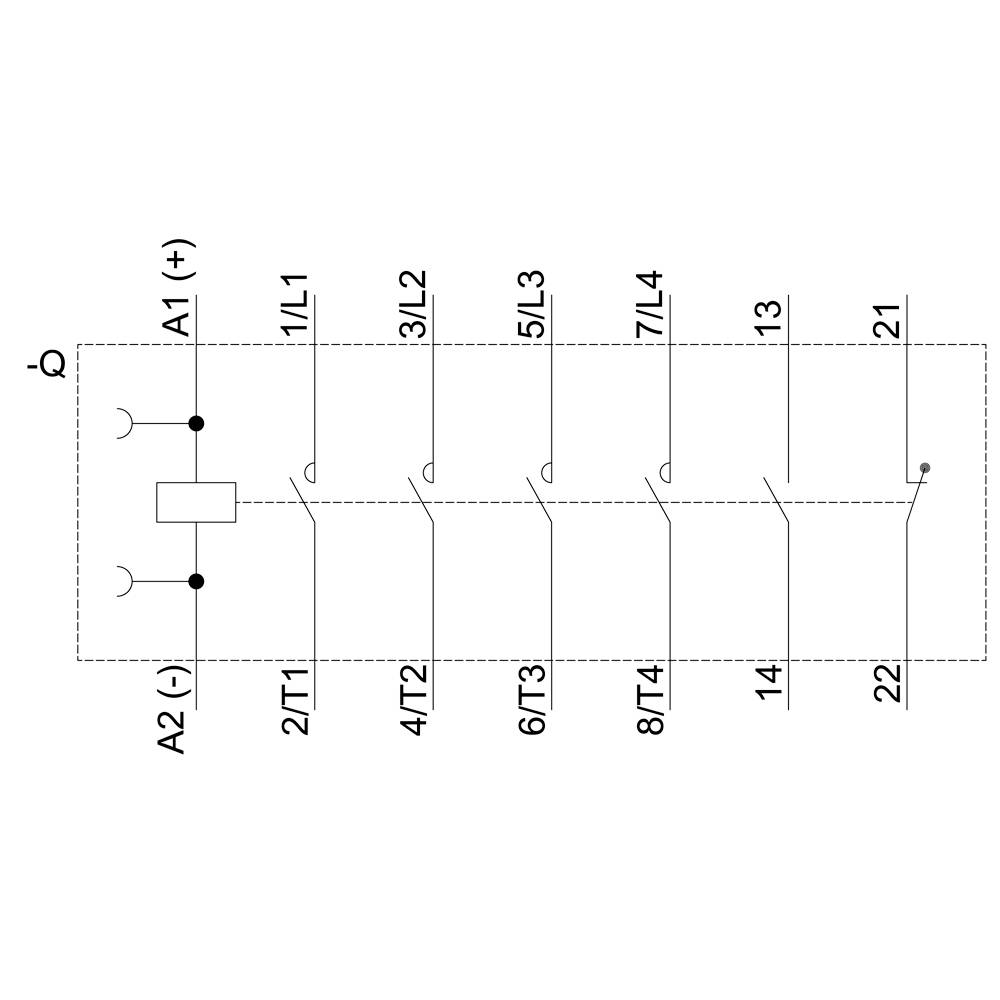

Circuit diagram of an electrical contactor module with terminals A1, A2, 1L, 2T and others. Shows contact and switching positions.

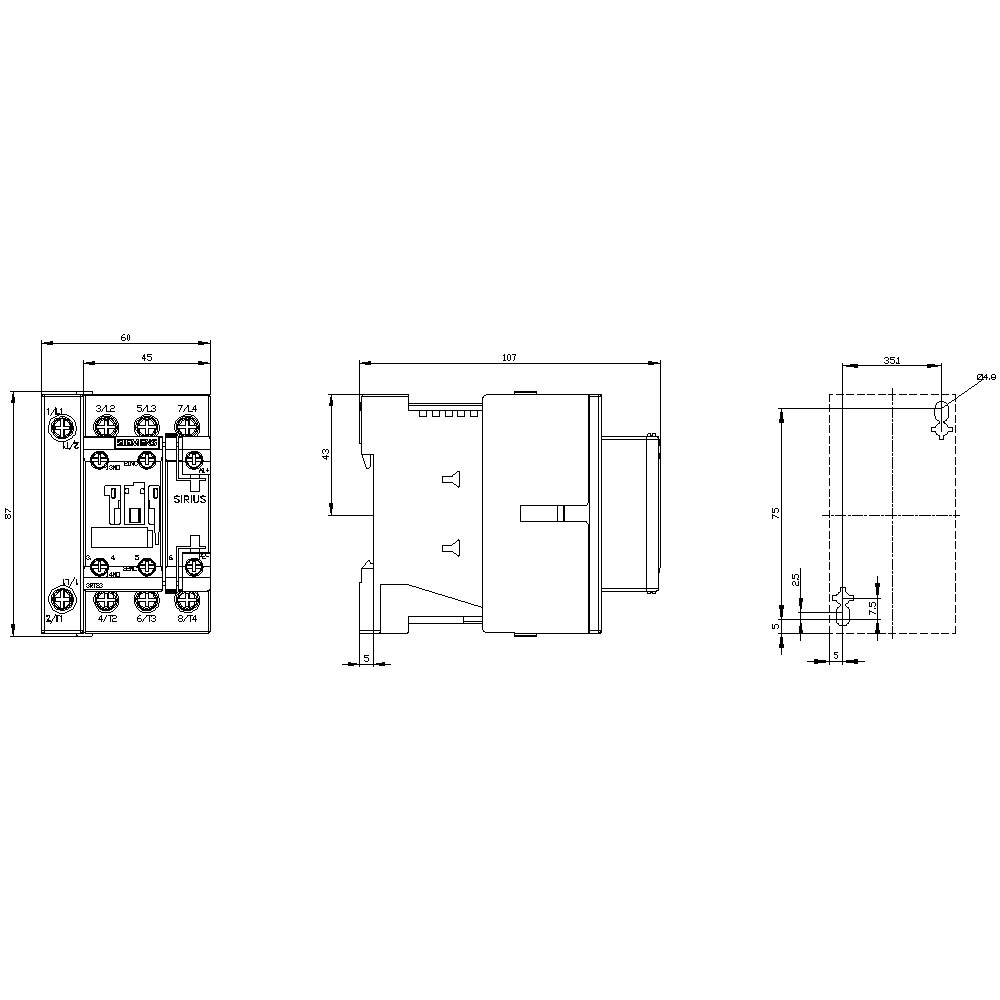

Technical drawing of an electrical switch with dimensional specifications in three views: front, side, and top.

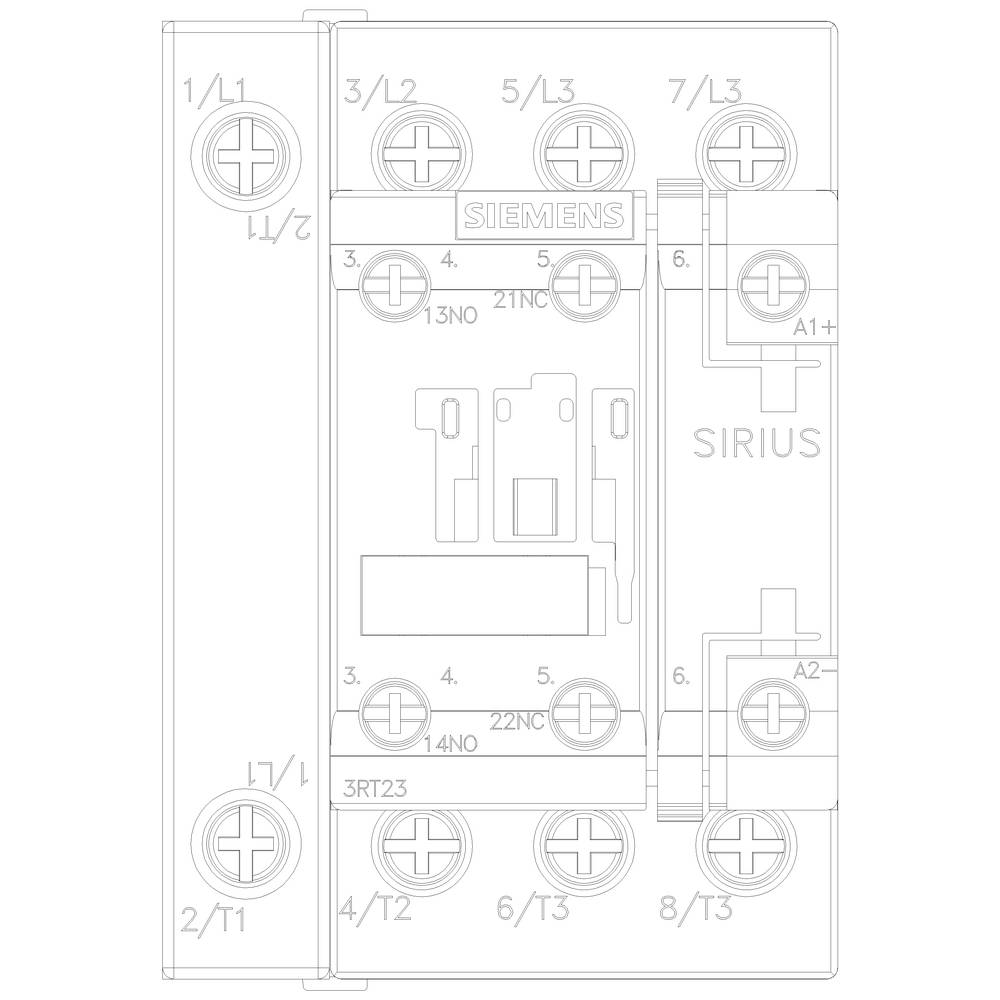

'Schütz SIRIUS from Siemens with electrical connections marked from 1/L1 to 8/T3, including terminals A1+ and A2-.'

1/5

Image similar

Product type

Contactor

No. of pins

4-pin

Connection

Screw terminal

Type

3RT2327-1BB40

Type

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 6 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 199.99 / piece)

€ 199.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: DC
Conductor cross-section single or multi-strand: 10 mm²
Conductor cross-section for finely-stranded: 10 mm²

Product type: Contactor

Type: 3RT2327-1BB40

Type: S0

No. of pins: 4-pin

Contact type: 4 makers

Auxiliary contact type: 1 maker
1 breaker

Control voltage (min.): 24 V DC

Control voltage (max.): 24 V DC

Control voltage range: 24 - 24 V DC

Switching voltage (max.): 400 V AC

Permanent current (max.): 50 A

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screw terminal

Durability: 1000 0000

: IP20

Min. temperature: -25 °C

Max. temperature: +60 °C

Width: 60 mm

Height: 85 mm

Depth: 107 mm

Dim: (W x H x D) 60 x 85 x 107 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 7.5 kW

: 4

: 1

: 1

: 15.5 A

: 50 A

: 24-24 V

: Screw connection

: DC

: 15.5 A

: 7.5 kW

UKCA: yes
