Name: Siemens 3RT2535-1AF00 Contactor 2 breakers, 2 makers 18.5 kW + auxiliary contact Compatible with (relay brand): Siemens
Brand: Siemens
SKU: 1700710
Availability: BackOrder

A Siemens electrical power switch, suitable for controlling electrical installations. Three-phase design, Sirius model series.

An open electrical cabinet reveals electronic components. Through a rain-streaked window, a production machine is blurrily visible.

Circuit diagram of an electrical circuit with a switch and two relays. Labels A1, A2, R1-R4, 1-4, 13 NO, 14 NO, 21 NC, 22 NC.

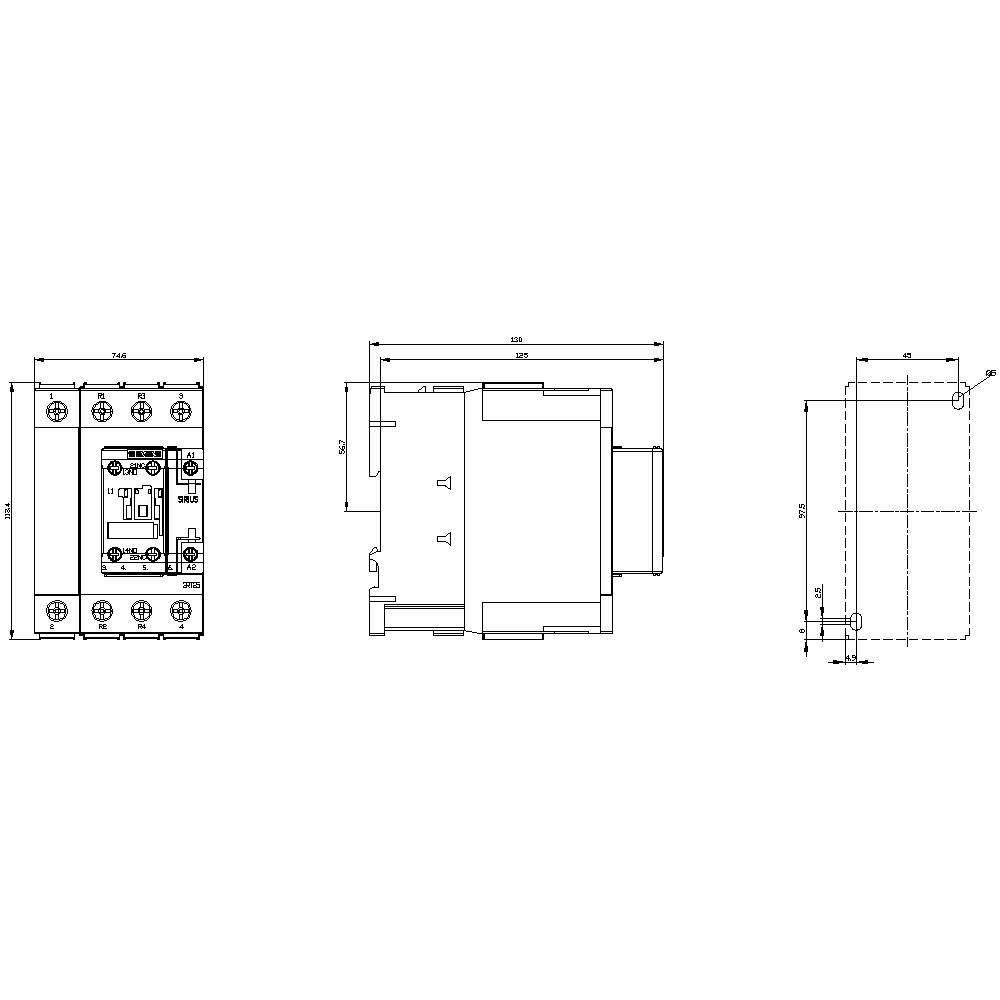

Technical drawing of a switch with three views: front view, side view, and top view. Dimensions and details are shown.

1/4

Image similar

Product type

Contactor

No. of pins

4-pin

Power

18.5 kW

Connection

Screws

Type

3RT2535-1AF00

Datasheet (PDF)

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 209.99 / piece)

€ 209.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type of voltage: AC
Conductor cross-section single or multi-strand: 50 mm²
Conductor cross-section for finely-stranded: 35mm²

Product type: Contactor

Type: 3RT2535-1AF00

Type: S2

No. of pins: 4-pin

Contact type: 2 breakers
2 makers

Control voltage (min.): 110 V AC

Control voltage (max.): 110 V AC

Control voltage range: 110 - 110 V AC

Switching voltage (max.): 400 V AC

Permanent current (max.): 35 A

: 18.5 kW

Compatible with: Siemens

Compatible with series: Siemens Sirius series

Features: + auxiliary contact

Mounting type: Snap-in
Screw-fit

Connection: Screws

Durability: 1000 0000

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 75 mm

Height: 114 mm

Depth: 130 mm

Dim: (W x H x D) 75 x 114 x 130 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: TRUE

: 18.5 kW

: 2

: 2

: 1

: 1

: 35 A

: 60 A

: Screw connection

: AC

: 14.709975

UKCA: yes
