Name: Siemens 3RW4024-1TB04 3RW40241TB04 Soft starter Motor power at 400 V 5.5 kW 480 V Nominal current 12.5 A
Brand: Siemens
SKU: 1746707
Availability: BackOrder

Diagram of a Siemens electrical protective switch with multiple connections and operating elements, for controlling electrical circuits.

An open electrical cabinet filled with electrical components and wiring responsible for controlling and distributing electricity.

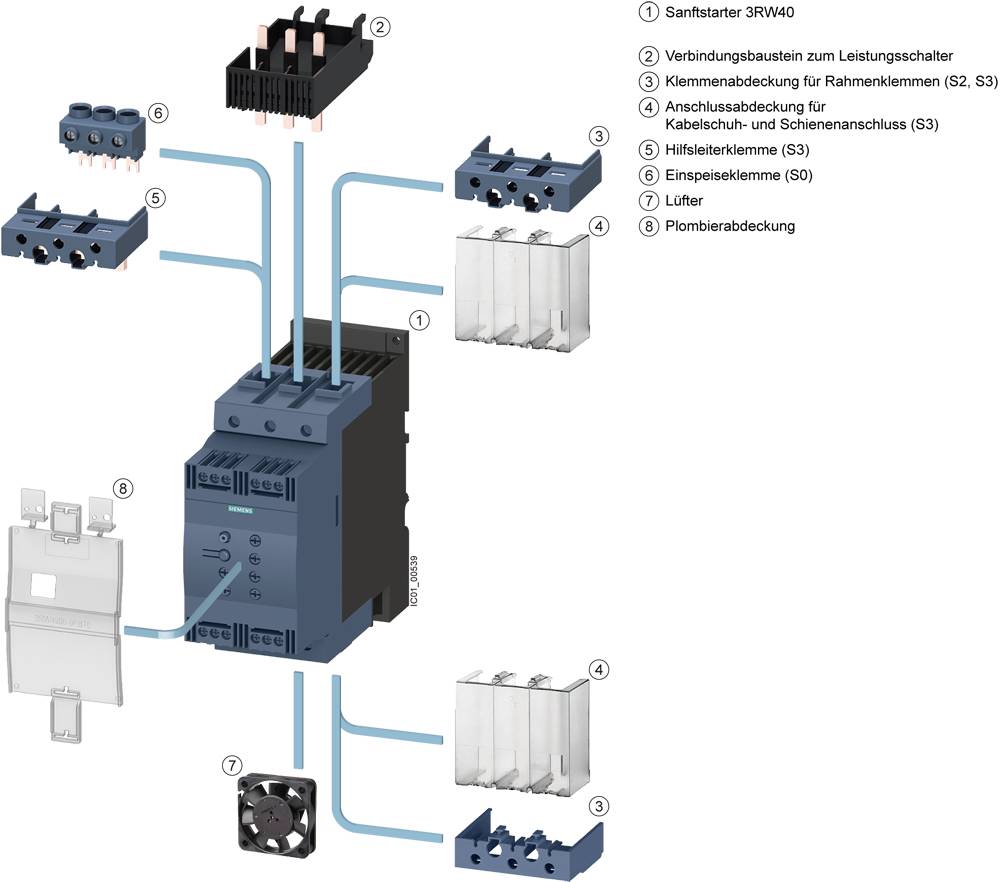

'Exploded diagram of a soft starter 3RW40 with individual components and connections numbered. Main content: connection and frame clamp components, cable protection, fan.'

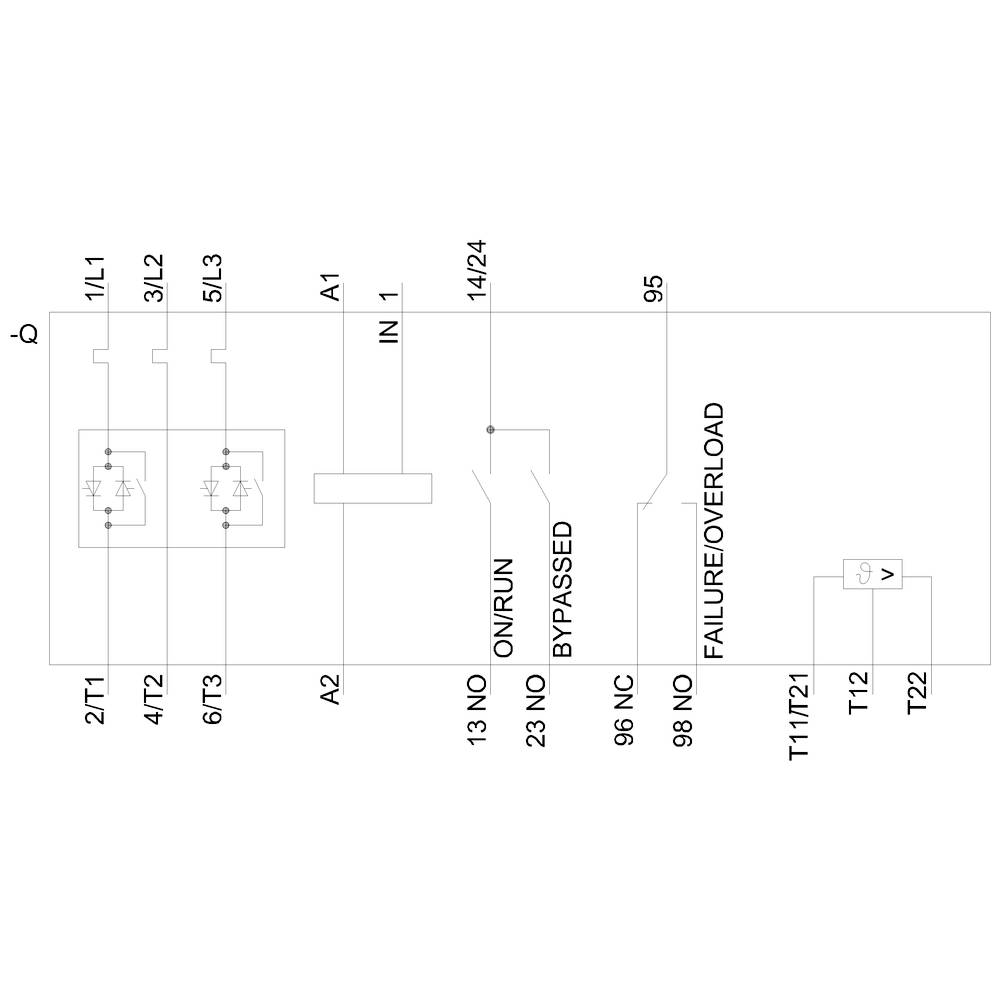

'Circuit diagram of an electrical control circuit with relay, switch, and overload indicator. Shows connections and current paths.'

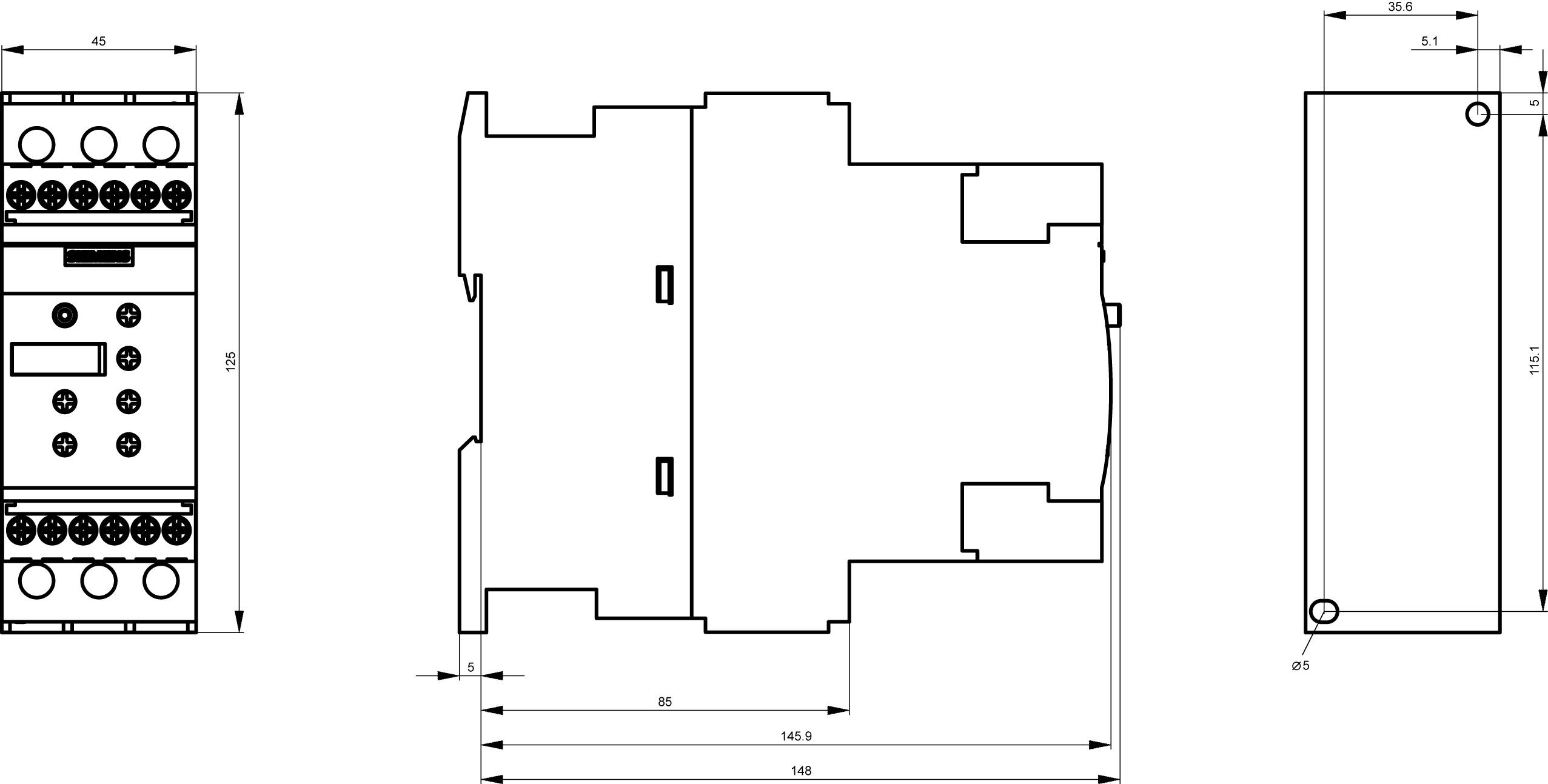

Technical drawing of an electronic device with front, side, and top views; dimensions specified in millimetres.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon, 1 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 615.00 / piece)

€ 615.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP20
Mounting type: screw and snap
Number of normally open contact: 2
Number of changer: 1
Size S0
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 12.5 A

Motor power at 400 V: 5.5 kW

Nominal voltage: 480 V

Type: Screw connector

Manufacturer part #: 3RW40241TB04

Nominal current: 12.5 A

Nominal current - rounded value: 12.5 A

Type: 3RW4024-1TB04

Motor power at 230V / 400V: 5.5 kW

Dim: (W x H x D) 45 x 125 x 155 mm

Connection: Screw terminal

Width: 45 mm

Height: 125 mm

Depth: 155 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

: Single direction

: 24-24 V

: 24-24 V

: 24-24 V

: IP20

: Other

: 12.5 A

: 3 kW

: 5.5 kW

: 40 °C

: TRUE

: AC/DC

UKCA: yes
