Name: Siemens 3RW4037-1BB14 3RW40371BB14 Soft starter Motor power at 400 V 30 kW 480 V Nominal current 63 A
Brand: Siemens
SKU: 1746950
Availability: InStock

Industrial electrical switching device with three contactor-like components in a single enclosure, used for control and protection functions.

An open electrical cabinet displays various cables and electrical components, symmetrically arranged, for controlling technical systems.

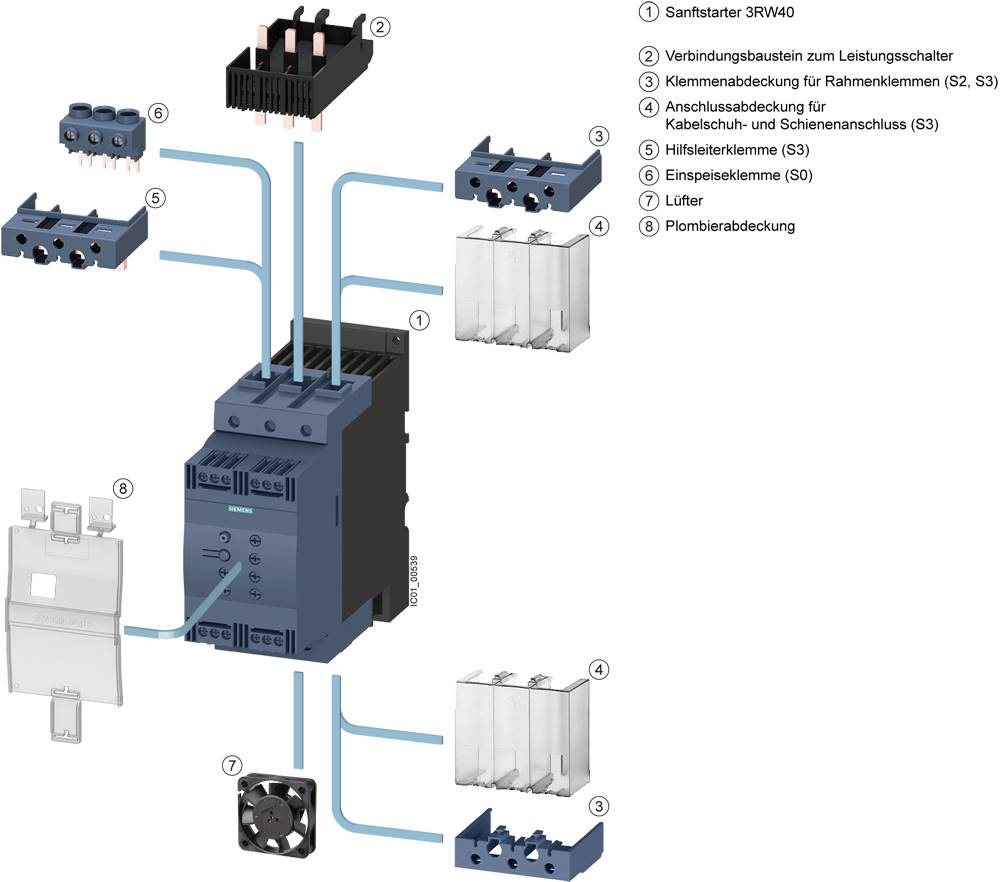

Softstarter 3RW40 with connection components, terminal covers, supply terminal, fan and sealing cover. Main components numbered.

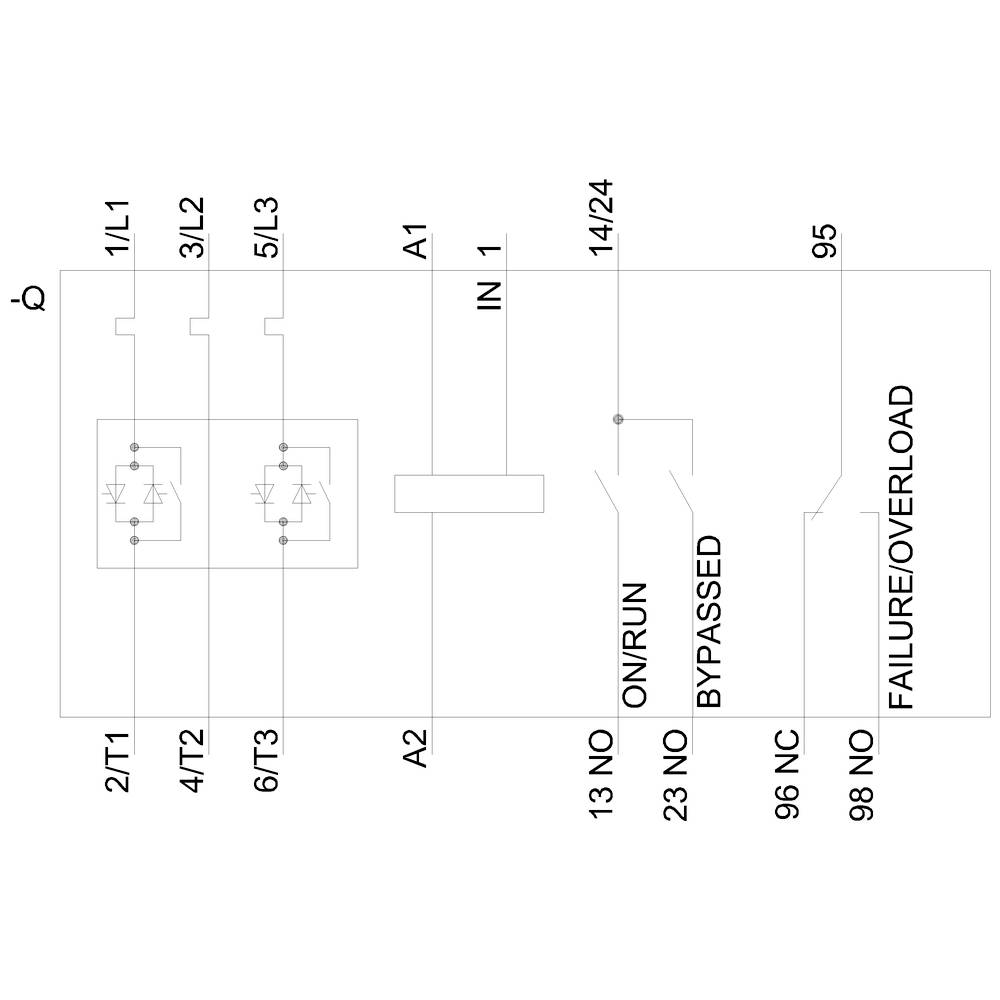

Circuit diagram shows a contactor with connections: L1, L2, L3, T1, T2, T3, IN 1, A1, A2. Contains labels for operating conditions and faults.

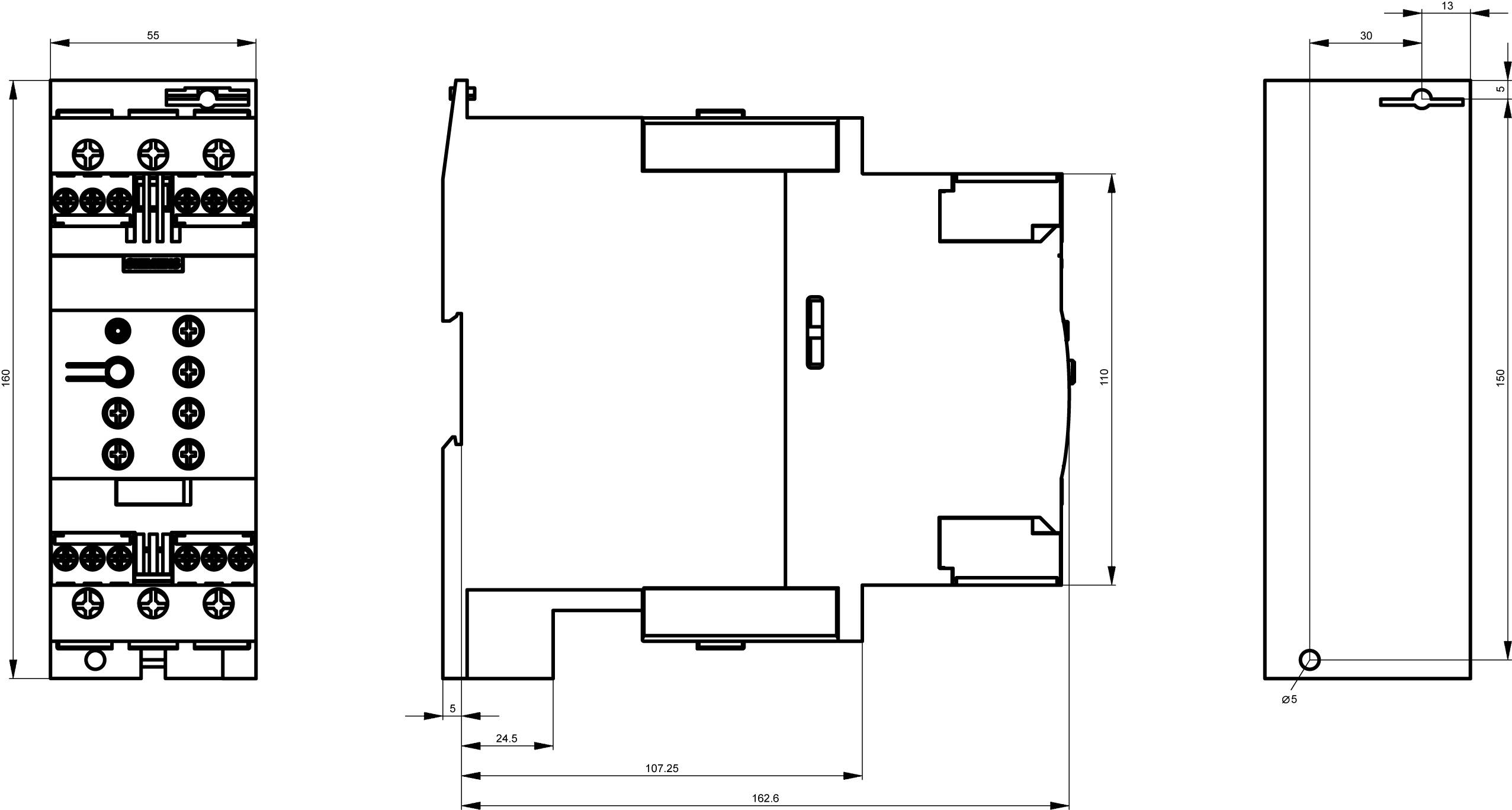

Technical drawing of an enclosure with dimensions in millimetres. Front, side, and top views with detailed measurements.

1/5

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 12 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,105.00 / piece)

€ 1,105.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Protection class: IP00
Mounting type: screw and snap
Number of normally open contact: 2
Number of changer: 1
Size S2
Operating frequency: 50/60 Hz
Isolation voltage: 600 V

Motor voltage: 400 V

Product type: Soft starter

Supply current: 63 A

Motor power at 400 V: 30 kW

Nominal voltage: 480 V

Type: Screw connector

Manufacturer part #: 3RW40371BB14

Nominal current: 63 A

Nominal current - rounded value: 63 A

Type: 3RW4037-1BB14

Motor power at 230V / 400V: 30 kW

Dim: (W x H x D) 55 x 160 x 170 mm

Connection: Screw terminal

Width: 55 mm

Height: 160 mm

Depth: 170 mm

Max. temperature: +60 °C

Min. temperature: -25 °C

Weight: 1.31

: Single direction

: 110-230 V

: 110-230 V

: 110-230 V

: IP00

: Other

: 63 A

: 18.5 kW

: 30 kW

: 40 °C

: TRUE

: AC/DC

UKCA: yes
