Siemens 3SU1150-7BB88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
Product type
Coordinate switch
Switching voltage
500 V
Functions
latch
Type
With mechanical locking
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 115.96 / piece)
€ 115.96
incl. VAT
14-day return policy included
Technical specifications
- Actuator material: plastic
- Maximum Auslenkwinkel: 30°
- Switching frequency / maximum [1/h]: 3600
- Product type
Coordinate switch
- Functions
latch
- Type
With mechanical locking
- Factory colour
Black
- Switch position
2
- Switching voltage
500 V
- Min. temperature
-25 °C
- Max. temperature
+70 °C

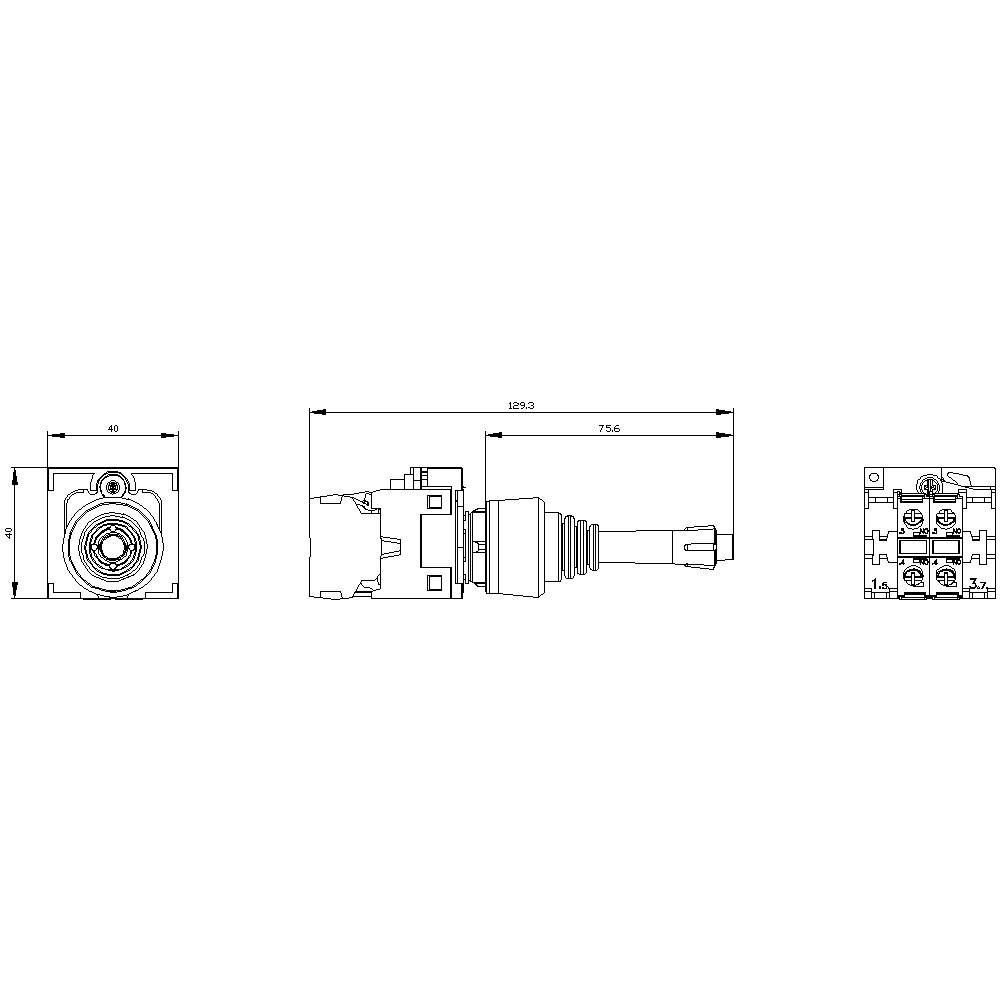

- Width
40 mm
- Height
40 mm
- (Ø)
22 mm
- Recess diameter
22.3 mm
- Durability
100000
- Electrical lifespan
1000 0000
IP65
IP67
- Content
1 pc(s)
- Dim
(Ø x H) 22 mm x 40 mm
- RoHS-compliant
Yes
- Type
3SU1150-7BB88-1NA0
- Weight
0.1780 kg
2
2
22.3 mm
2
2
FALSE
Other
FALSE
IP65/IP67
0
FALSE
Other
TRUE
FALSE
75.6 mm
0
Other
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1706109 Siemens 3SU1150-7BB88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1706109 Siemens 3SU1150-7BB88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
Information
Information 1706109 Siemens 3SU1150-7BB88-1NA0 Coordinate switch 500 V IP65, IP67 1 pc(s)
Description
Key-operated switch O.M.R, 22 mm, round, plastic with metal front ring, lock number 73037, red, with 2 keys, 3 switch positions IOII, momentary contact type, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal O
