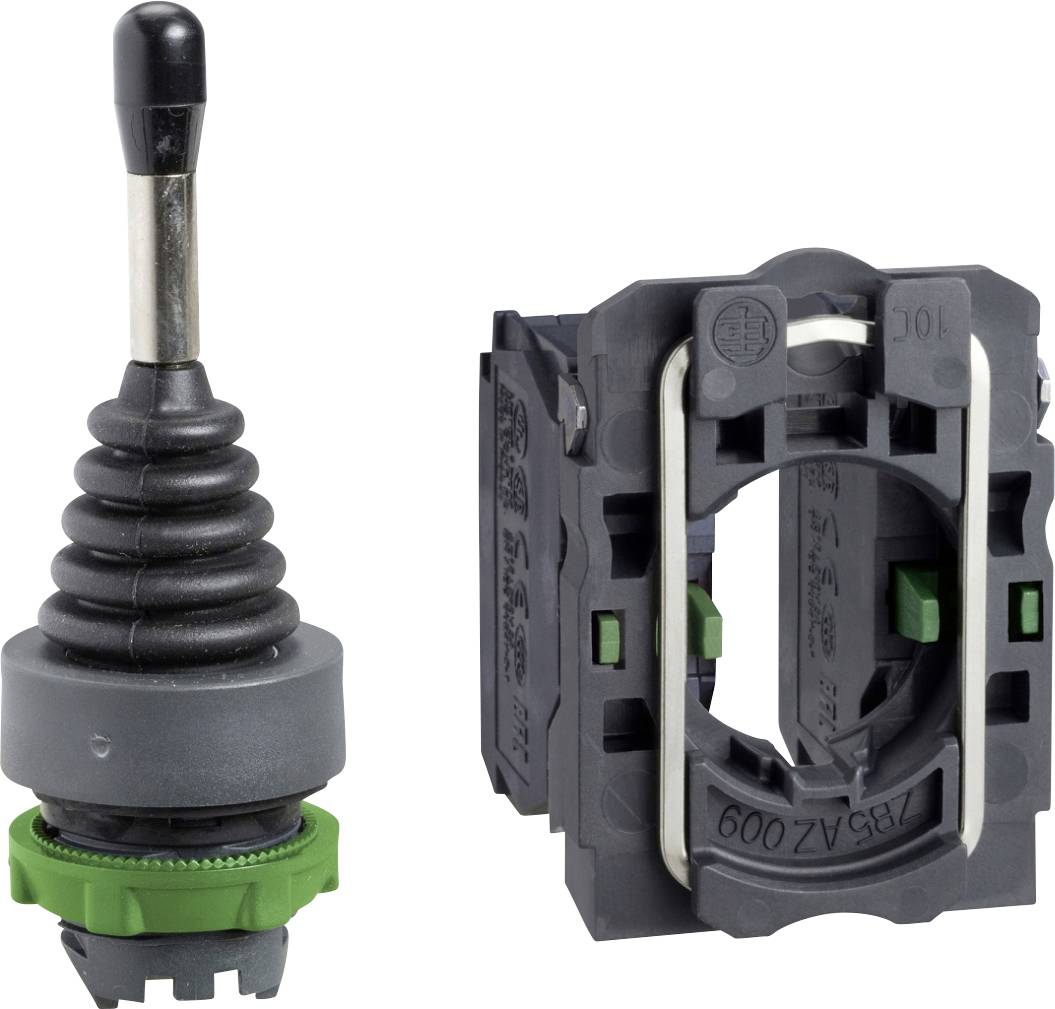

A joystick control switch and matching mounting bezel, shown as separate black and green industrial control components on a white background.

A joystick control switch and matching mounting bezel, shown as separate black and green industrial control components on a white background.

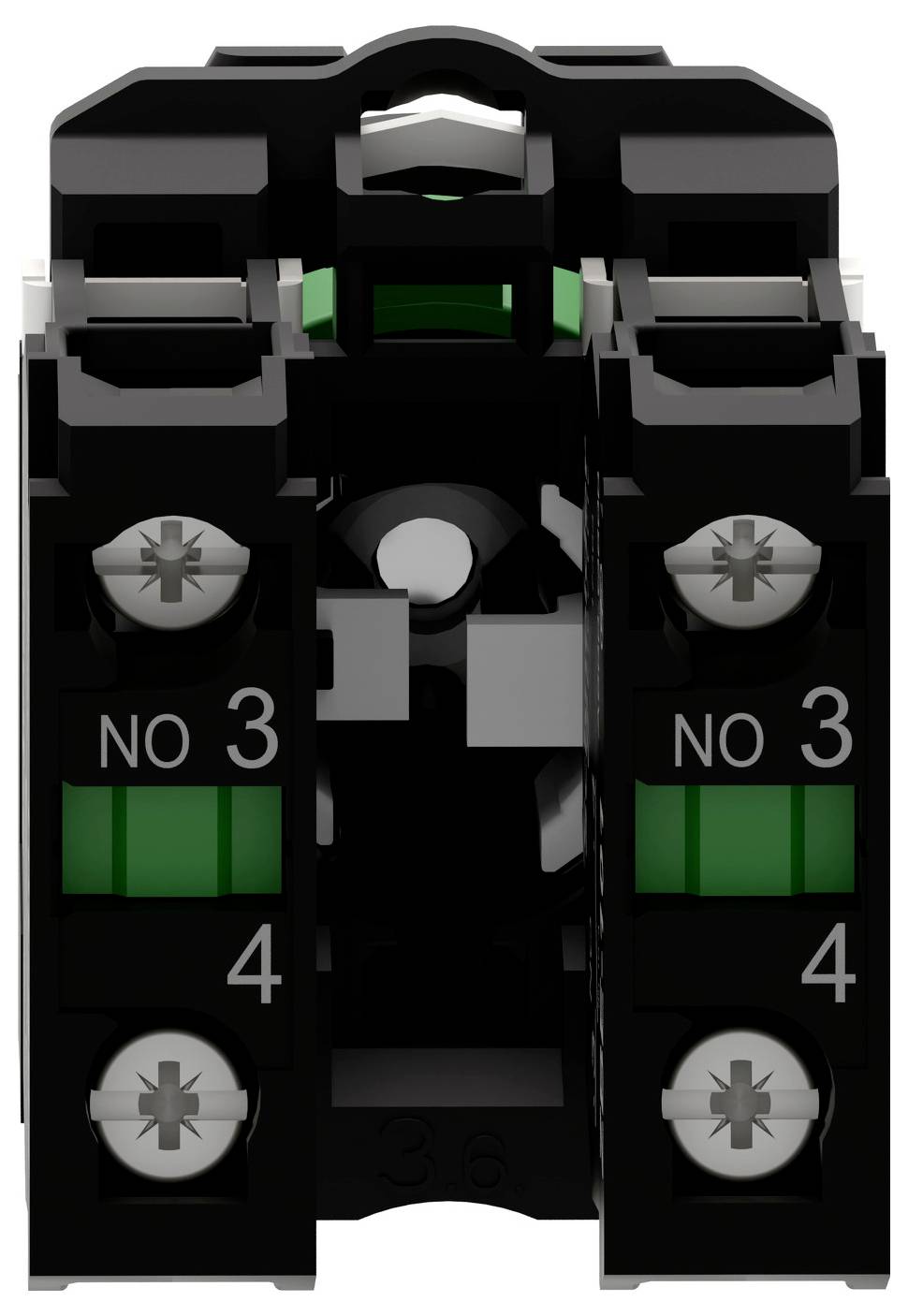

Black electrical circuit breaker module labeled 'NO 3' and '4', with twin screw terminals and a central switch opening.

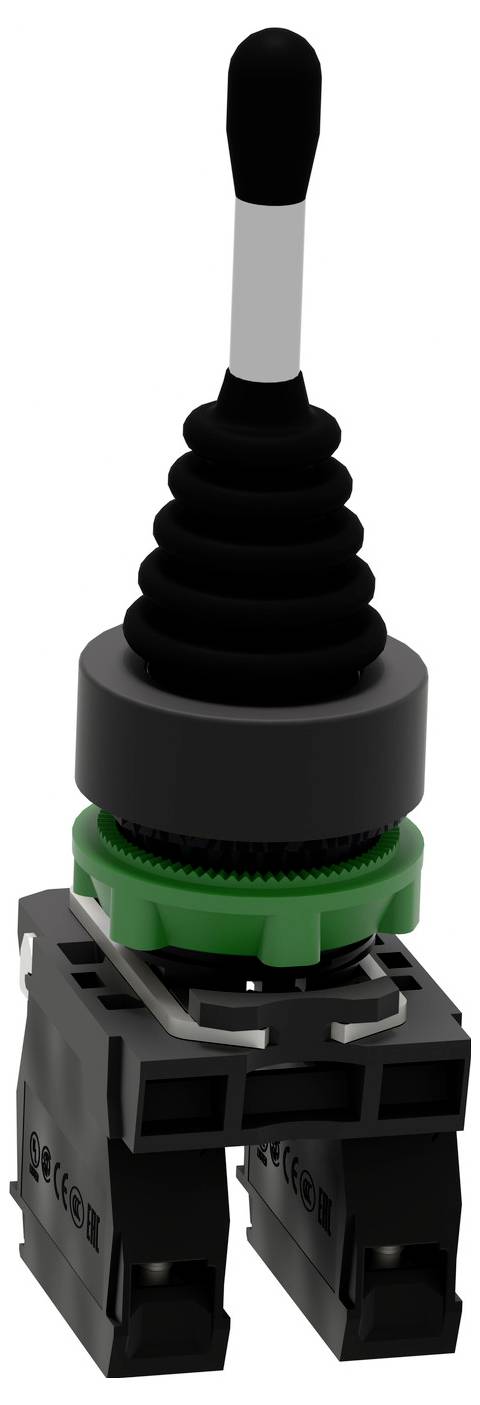

Industrial joystick controller with black handle, accordion-style boot, and dual switch base on a white background.

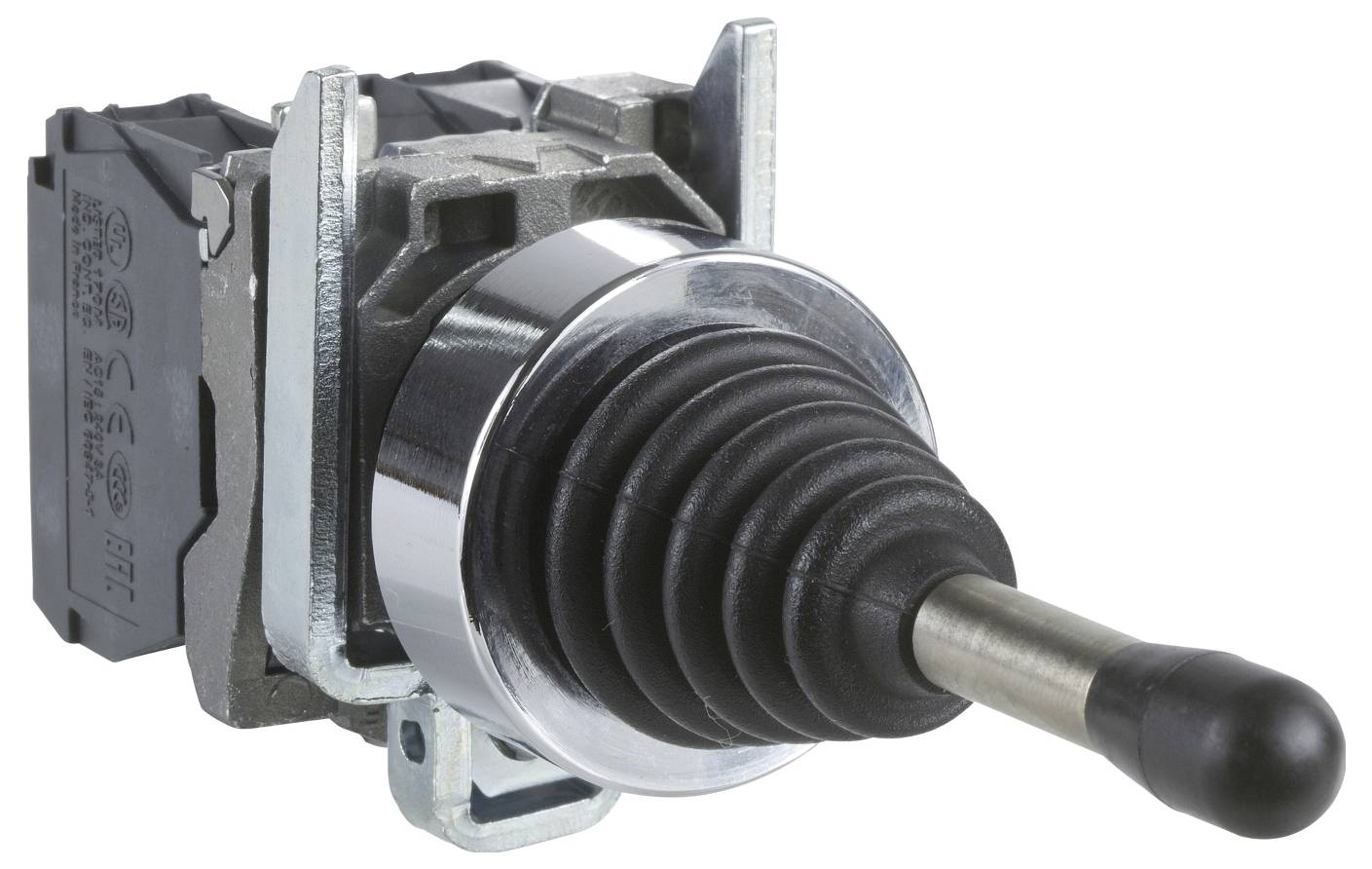

Industrial joystick switch with a black rubber boot and metal lever, shown isolated on a white background.

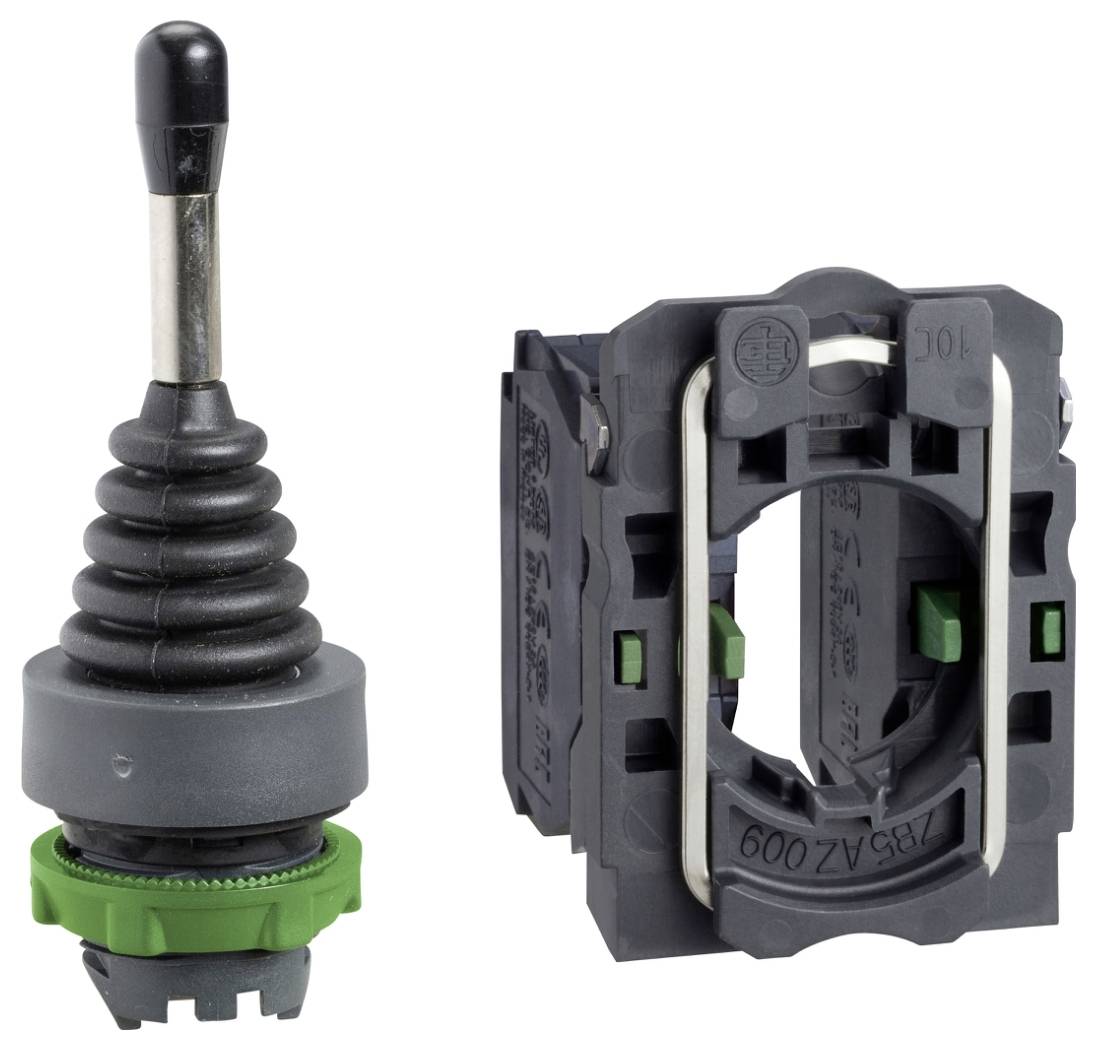

Black industrial control switch components: a rubber boot joystick actuator and a matching square mounting base on a white background

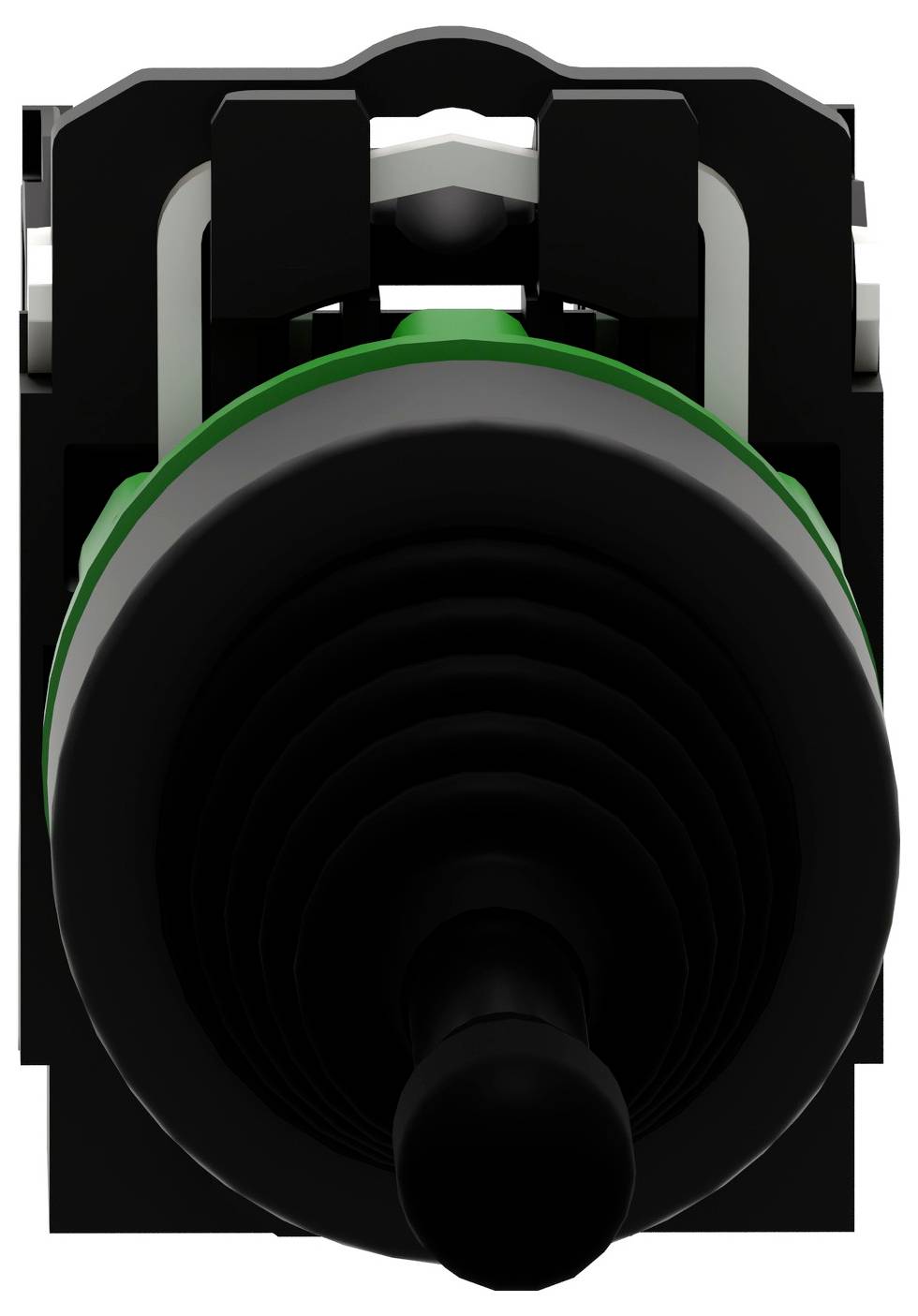

Close-up of a black camera lens or optical device with concentric rings and a protruding center element, shown front-on against a white background.

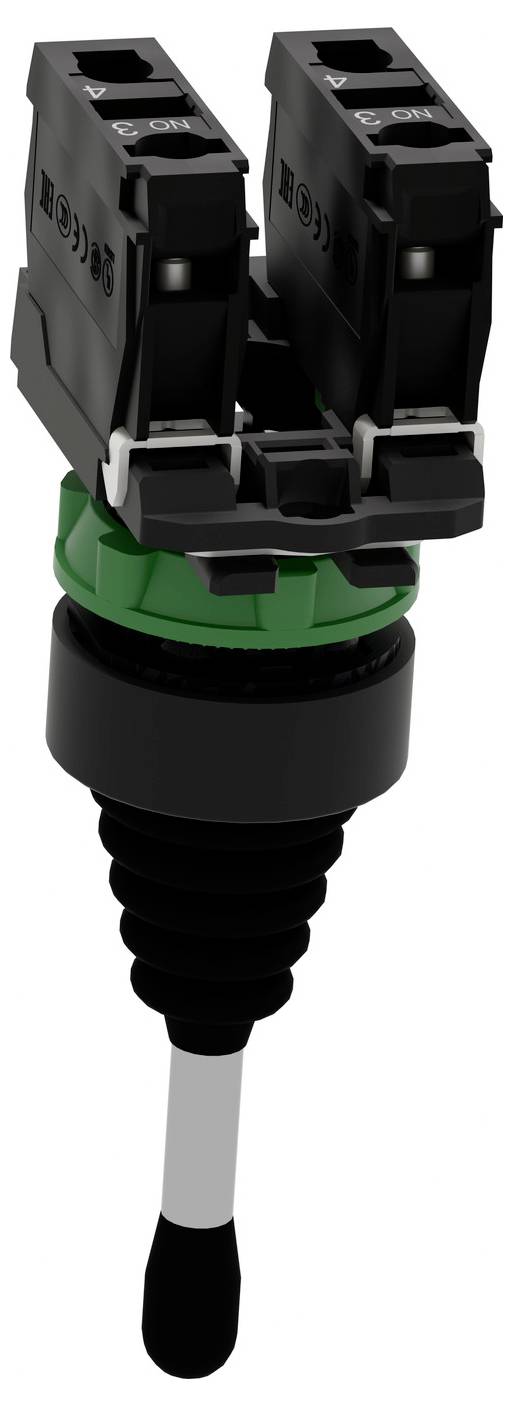

Black-and-green electrical connector or sensor plug with two top terminals, cylindrical body, and a long ribbed black probe shaft<br>

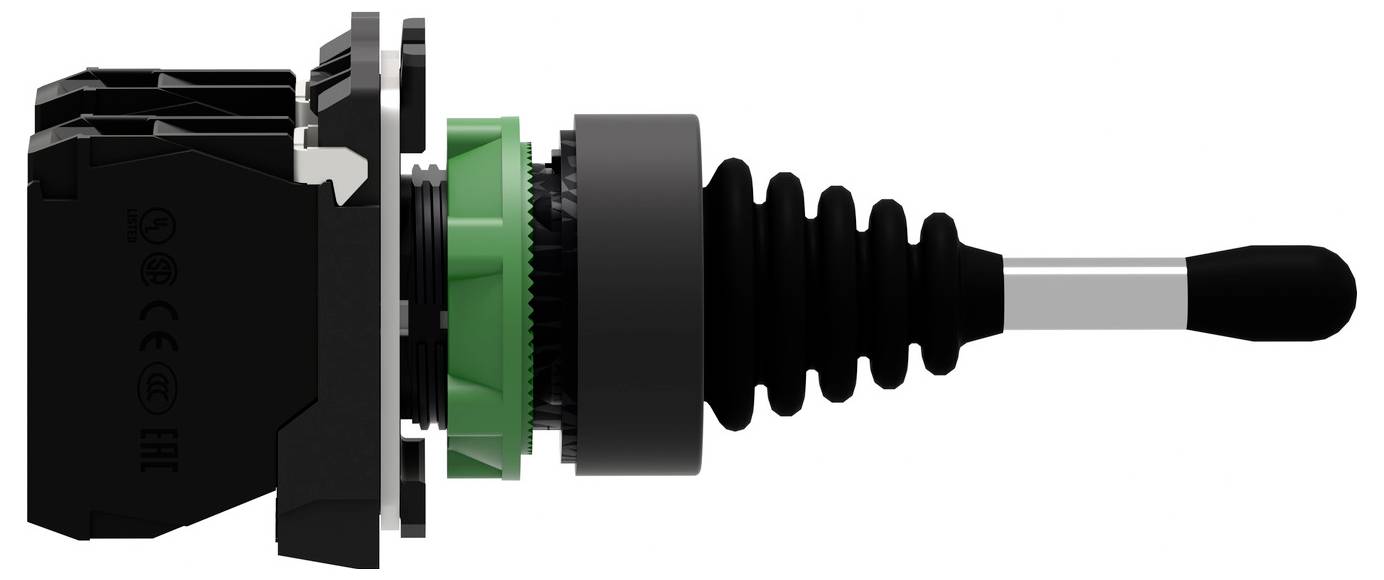

Side view of a black industrial joystick or control lever with a ribbed rubber boot, green collar, and silver shaft on a white background.

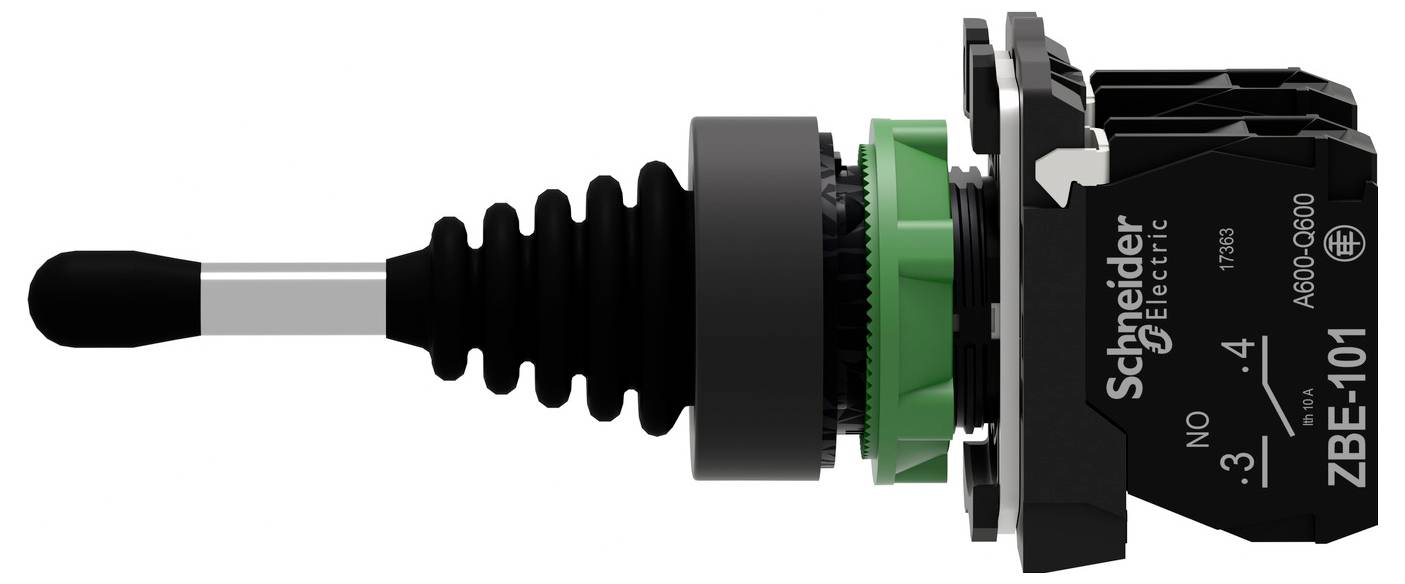

Side view of a Schneider Electric ZBE-101 pushbutton contact block with black actuator, green ring, and mounting hardware.

1/9

Packaging type

Piece

Product type

Joystick

Functions

momentary

Lighting type

None

Switch position

2

Datasheet (PDF)

Deutsch (Deutschland)

Schneider Electric

Fast track dispatch on Tue, 22 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 73.94 / piece)

€ 73.94

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Schneider Electric Joystick 2-way XD5PA22

- Ø22
- 2 directions
- 1S
- Reset to 0 position
- 54 mm long work spindle

Technical specifications

Packaging type: Piece

Product type: Joystick

Functions: momentary

Lighting type: None

Switch position: 2

Min. temperature: -40 °C

Length: 108 mm

Width: 30 mm

Height: 47 mm

Recess diameter: 22 mm

Durability: 1000000 cycles

Electrical lifespan: 1000000 cycles at 230 V AC
1000000 cycles at 120 V DC

Content: 1 pc(s)

Dim: (L x W x H) 108 x 30 x 47 mm

Type: XD5PA22

UKCA: yes

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1982162 Schneider Electric XD5PA22 Joystick 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 1982162 Schneider Electric XD5PA22 Joystick 1 pc(s) Piece

Description

Joystick 2 directions XD5PA22

This text is machine translated.

Scope of delivery

Complete joystick control unit
