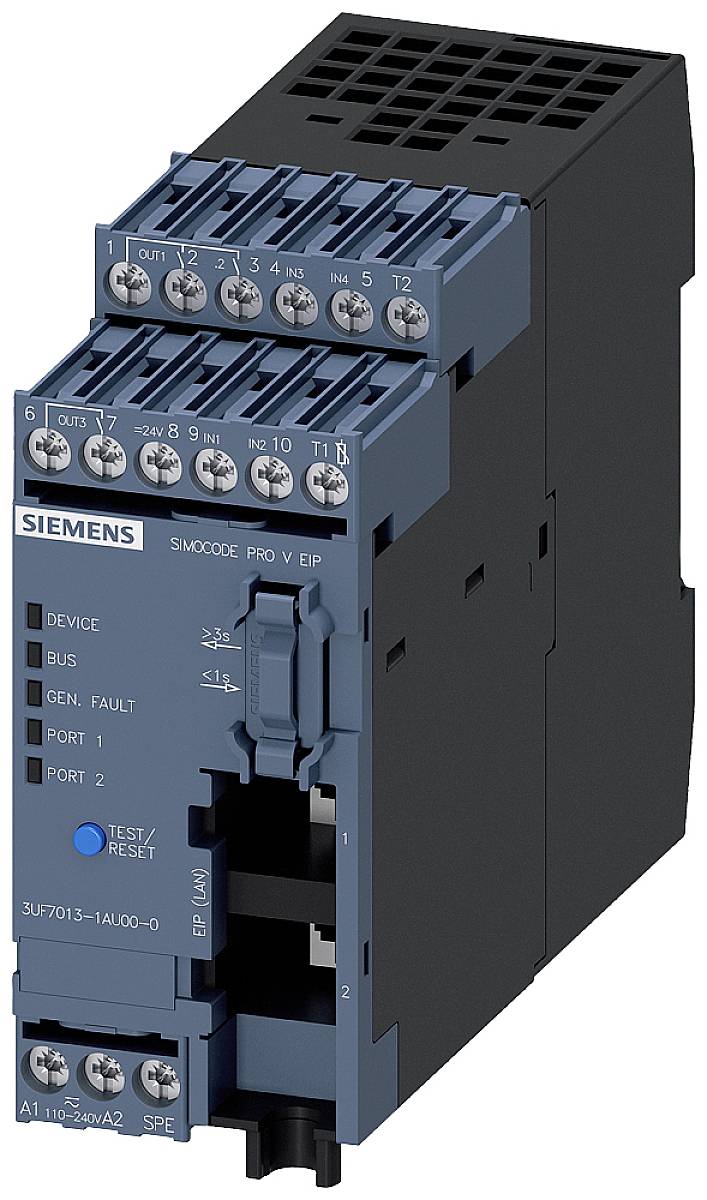

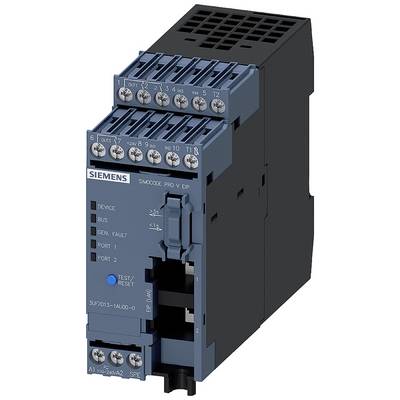

Siemens 3UF70131AU000 3UF7013-1AU00-0 Motor controller
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Number
Total (€ 671.43 / piece)
€
Technical specifications
- Design of the Electrical Connection: screw terminals.
- Isolation voltage: 300 V
- Electrical life: 100000
- Mechanical life: 1000 0000
- Consumed real power: 4.8 W
- Product type
Motor controller
- Type
3UF7013-1AU00-0
- Manufacturer part #
3UF70131AU000
- No. of digital inputs (max.)
4
- No. of inputs (max.)
4
- No. of outputs (max.)
3

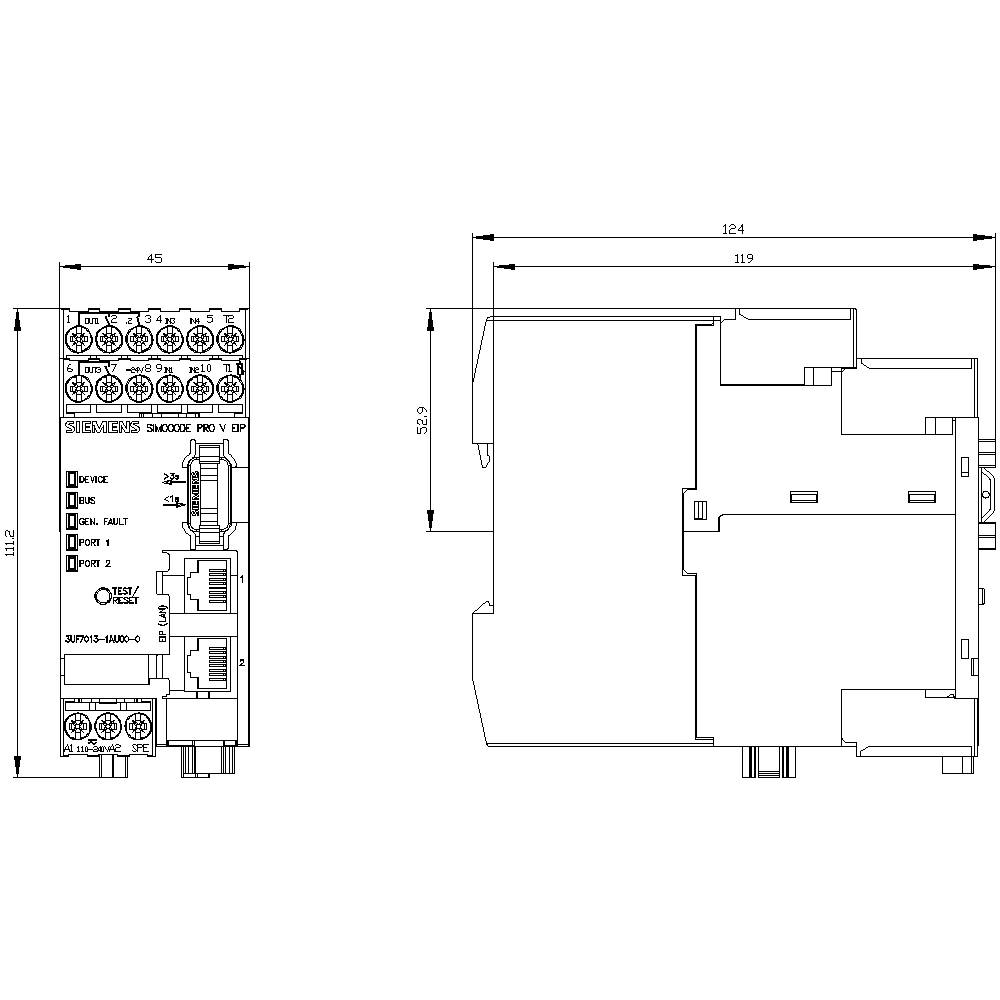

- Height
111 mm
- Length
124 mm
- Width
45 mm
IP20
- Dim
(L x W x H) 124 x 45 x 111 mm
- Content
1 pc(s)
- Fitting type (details)
Screw and snap
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
Mono stable
4
4
IP20
0
3
Screw connection
FALSE
TRUE
TRUE
TRUE
None
AC/DC
Documents & Downloads
Datasheet
Datasheet 1740703 Siemens 3UF70131AU000 3UF7013-1AU00-0 Motor controller
User & Safety Instructions
User & Safety Instructions 1740703 Siemens 3UF70131AU000 3UF7013-1AU00-0 Motor controller
Description
Contactor, Size 8, 3-pole, AC-3, 90 kW, 400/380 V Auxiliary contacts 22 (2 NO + 2 NC) 220 V DC DC operation ! Phased-out product! Successor is SIRIUS 3RT Preferred successor type is 3RT1056-2AP36
