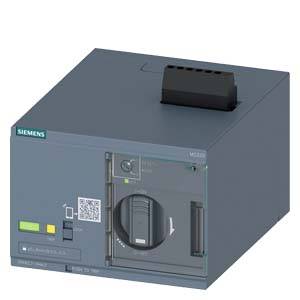

Siemens 3VA9257-0HA20 Motor 1 pc(s) Switching voltage (max.): 250 V DC (W x H x D) 104.6 x 75 x 132 mm Piece
EAN:
Part number:
Item no:
Product type
Motor
Packaging type
Piece
Type
3VA9257-0HA20
Control voltage (min.)
110 V AC
Control voltage (max.)
250 V DC
Datasheet (PDF)
Number
Total (€ 508.40 / piece)
€ 508.40
plus VAT.
Highlights & Details
SIDE WALL MTD ROTARY OPERATOR,STD, IK24V
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Motor
- Type
3VA9257-0HA20
- Control voltage (min.)
110 V AC
- Control voltage (max.)
250 V DC
- Control voltage range
110 - 250 V DC
- Switching voltage (max.)
250 V DC
- Compatible with series
Siemens 3VA series
- Compatible with
Siemens
- Min. temperature
-25 °C
- Max. temperature
+70 °C
- Depth
132 mm
- Width
104.6 mm
- Height
75 mm

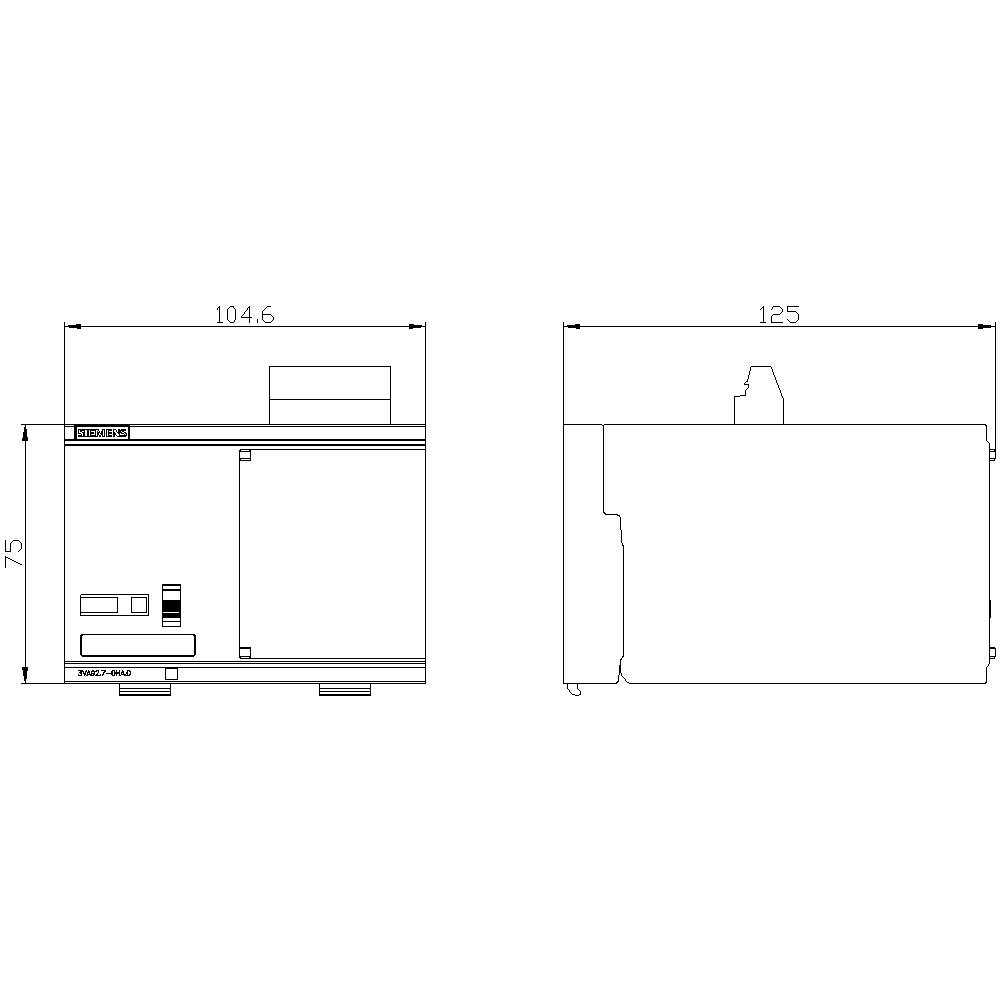

- Dim
(W x H x D) 104.6 x 75 x 132 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
Other
TRUE
FALSE
Documents & Downloads
Datasheet
Datasheet 1722526 Siemens 3VA9257-0HA20 Motor 1 pc(s) Switching voltage (max.): 250 V DC (W x H x D) 104.6 x 75 x 132 mm Piece
User & Safety Instructions
User & Safety Instructions 1722526 Siemens 3VA9257-0HA20 Motor 1 pc(s) Switching voltage (max.): 250 V DC (W x H x D) 104.6 x 75 x 132 mm Piece
Description
side mounted rotary operator standard IEC IP65 illumination kit 24 V DC accessory for 3VA1 250 Manual operating mechanisms for 3VA molded-case circuit breakers. For easy operation of the molded-case circuit breaker 3VA - front operating mechanism, door coupling or side rotary operating mechanism. Key features of these accessory components: 1. Available as front, door and side panel rotary operating mechanism. 2. Handles available as standard version with and without lighting kit and as EMERGENCY STOP with and without lighting kit. 3. Optional lighting kit for clear view of switch position even when very dirty. 4. Range of locking options. www.siemens.de/3VA. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
