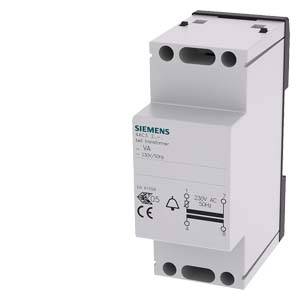

Siemens 4AC32080 Bell transformer 8 V 1 A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 45.99 / piece)
€ 45.99
incl. VAT
14-day return policy included
Technical specifications
- Output active power max.: 8 W
- Power loss max.: 5.7 W
- Output current max.: 1 A
- Number of wide division units: 2
- Product type
Bell transformer
- Mounting type
DIN rail
- Operating voltage
230 V
- Output voltages
8 V
- Max. nominal current
1 A
- Width
36 mm
- Height
64 mm
- Length
90 mm
- Dim
(L x W x H) 90 x 36 x 64 mm
- Factory colour
Multicolour
36
64 mm
Standard bell ringing transformer
FALSE
TRUE
1 A
90 m
8 W
2
TRUE
230 V
8 V
1 A
TRUE
5.7 W
FALSE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1732154 Siemens 4AC32080 Bell transformer 8 V 1 A
User & Safety Instructions
User & Safety Instructions 1732154 Siemens 4AC32080 Bell transformer 8 V 1 A
Description
circuit-breaker VL 400 UL type JG (CAT NO. NJX3R250) non-interchangeable frame w. approbation circuit-breaker to UL489 standard breaking capacity 3-pole, nema rating 35kA/480V, (molded case circuit breaker) electronic trip unit ETU, li TU= 40 degr. ceLSIus In= 250A, rated current iI= 1.25 to 11 x In, short-circuit protection ir= 70-250A overcurrent rel. f. plant protection w/o connection accessories without auxiliary release without auxiliary/alarm switch
