Name: Siemens 4AC37240 Safety transformer 8 V, 12 V 2 A
Brand: Siemens
SKU: 1732157
Availability: InStock

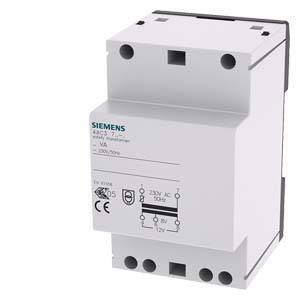

A white electronic Siemens switch with 'AC 230V' inscription and multiple technical symbols on the front.

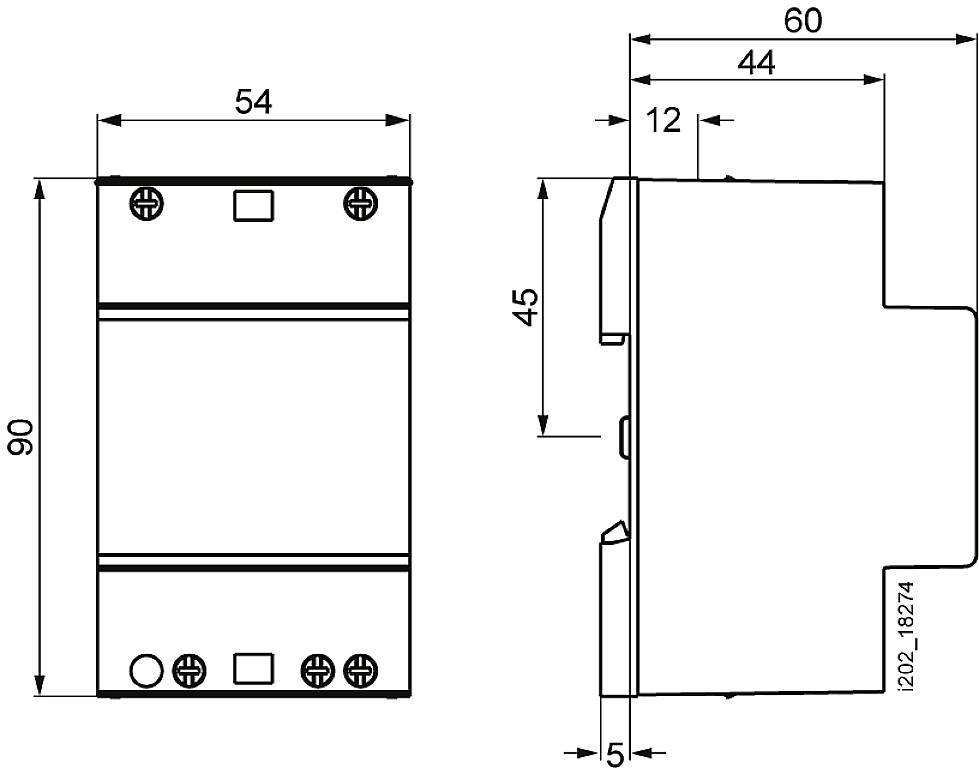

Technical drawing of a rectangular device with dimension specifications in millimetres: 90 height, 54 and 60 width, 45 depth. Rear and side view.

1/2

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Output active power max.: 24 W
Power loss max.: 7.6 W
Output current max.: 2 A
Number of wide division units: 3

Product type: Safety transformer

Mounting type: DIN rail

Operating voltage: 230 V

Output voltages: 8 V
12 V

Max. nominal current: 2 A

Width: 54 mm

Height: 64 mm

Length: 90 mm

Dim: (L x W x H) 90 x 54 x 64 mm

: 54

: 64 mm

: Safety transformer

: FALSE

: TRUE

: 2 A

: 90 m

: 24 W

: 3

: TRUE

: 230 V

: 8 V

: 12 V

: 2 A

: 2 A

: TRUE

: 7.6 W

: FALSE

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1732157 Siemens 4AC37240 Safety transformer 8 V, 12 V 2 A

User & Safety Instructions

User & Safety Instructions 1732157 Siemens 4AC37240 Safety transformer 8 V, 12 V 2 A

Description

circuit-breaker VL 400 UL type JG (CAT NO. NJX3K250) non-interchangeable frame w. approbation circuit-breaker to UL489 standard breaking capacity 3-pole, nema rating 35kA/480V and 25kA/600V (molded case circuit breaker) electronic trip unit LCD ETU, LSIG-g with alarm TU= 40 degr. ceLSIus 3 phases/4 cables In=250A, rated current short-circuit protection short-circuit protection ir=70-250A overcurrent rel. f. plant protection without auxiliary release without auxiliary/alarm switch
