Name: Siemens 4AM55425AD400FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V, 115 V 800 VA
Brand: Siemens
SKU: 1754152
Availability: BackOrder

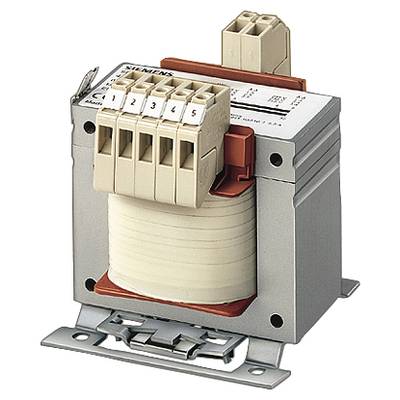

A transformer with multiple terminal blocks and a metal base. 'Siemens' is visible at the top. Suitable for electrical installations.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 579.00 / piece)

€ 579.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRANSFORMER SITAS PHASES:1

1 x 420 V, 400 V, 380 V
1 x 230 V, 115 V
800 VA

Technical specifications

Suitability: CE CRUus

Product type: Transformer

Output voltage: 230 V
115 V

No. of outputs: 1 x

No. of inputs: 1 x

: 800 VA

Input voltage: 420 V
400 V
380 V

Connection: Screws
CEE 7/16 CEE plug

Width: 152 mm

Height: 144 mm

Length: 126 mm

Dim: (L x W x H) 126 x 152 x 144 mm

Output voltage (number x voltage): 1 x 230 V, 115 V

Design type: EI 150/65

Input voltage (number x voltage): 1 x 420 V, 400 V, 380 V

Frequency: 50-60 Hz

Content: 1 pc(s)

Insulation class: T 40/B

Mounting type: Screw fastening

Test mark: cRUus. UL/CSA-RECOGNIZED

RoHS-compliant: Yes

Protection class: IP00

Type: 4AM5542-5AD40-0FA0

Max. ambient temperature: +40 °C

Min. ambient temperature: 40 °C

Efficiency: 0.93 %

: 152

: 144 mm

: 126 mm

: Other

: IP00

: FALSE

: 800 W

: FALSE

: FALSE

: B

: FALSE

: 3.1 %

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Output voltage

Input voltage

Power

Connection

Product type

Protection class

Siemens 4AM55425AD400FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V, 115 V 800 VA

Item no:1754152

Dispatches on Fri 18 Dec

Conrad Electronic

This article

230 V

420 V

800 VA

Screws

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 579.00^*

Siemens 4AM55424TJ100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 110 V 800 VA 7.27 A

Item no:1754147

Dispatches on Mon 30 Nov

Conrad Electronic

110 V

242 V

800 VA

Screws

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Siemens 4AM55424TN000EA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 800 VA 33.3 A

Item no:1754148

Dispatches on Mon 30 Nov

Conrad Electronic

24 V

242 V

800 VA

Screws

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 569.00^*

Siemens 4AM55424TN000EC0 Transformer 1 x 242 V, 230 V, 218 V 1 x 24 V 680 VA 28.3 A

Item no:1754149

Dispatches on Fri 18 Dec

Conrad Electronic

24 V

242 V

680 VA

Screws

Transformer

IP23

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 619.00^*

Siemens 4AM55424TT100FA0 Transformer 1 x 242 V, 230 V, 218 V 1 x 230 V 800 VA 3.48 A

Item no:1754150

Dispatches on Fri 18 Dec

Conrad Electronic

230 V

242 V

800 VA

Screws

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 569.00^*

Siemens 4AM55425AJ100FA0 Autotransformer 1 x 420 V, 400 V, 380 V 1 x 110 V 800 VA 7.27 A

Item no:1750638

Dispatches on Mon 30 Nov

Conrad Electronic

110 V

420 V

800 VA

Screws

Autotransformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 425.00^*

Siemens 4AM55425AN000EA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 24 V 800 VA 33.3 A

Item no:1754153

Dispatches on Mon 30 Nov

Conrad Electronic

24 V

420 V

800 VA

Screws

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 569.00^*

Siemens 4AM55425AT100FA1 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 800 VA 3.48 A

Item no:1704458

Dispatches on Fri 18 Dec

Conrad Electronic

230 V

420 V

800 VA

Spring-loaded heavy duty connector

Transformer

IP00

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 455.00^*

Siemens 4AM55425AT100FC0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 680 VA 2.96 A

Item no:1699051

Dispatches on Fri 18 Dec

Conrad Electronic

230 V

420 V

680 VA

Screws

Transformer

IP23

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 619.00^*

Siemens 4AM55425AT100FD0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V 600 VA 2.61 A

Item no:1754154

Dispatches on Fri 18 Dec

Conrad Electronic

230 V

420 V

600 VA

Screws

Transformer

IP54

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 845.00^*

Documents & Downloads

Datasheet

Datasheet 1754152 Siemens 4AM55425AD400FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V, 115 V 800 VA

User & Safety Instructions

User & Safety Instructions 1754152 Siemens 4AM55425AD400FA0 Transformer 1 x 420 V, 400 V, 380 V 1 x 230 V, 115 V 800 VA

Description

TRANSFORMER SITAS PHASES:1 PN/PN(S6)(KVA):0,8 /3,4 UPRI(V):400+/-5% USEC(V):230-115 ISEC(A):3,48-6,96 F(HZ):50...60 VECTOR GR./SHIELD WNG.:II0 /0 TA/ISOKL:40 /B IP00 TYPE OF TERMINALS:SCREW/TAB CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 UL/CSA-RECOGNIZED CONTROL CIRCUIT TRANSFORMER ISOLATION TRANSFORMER
